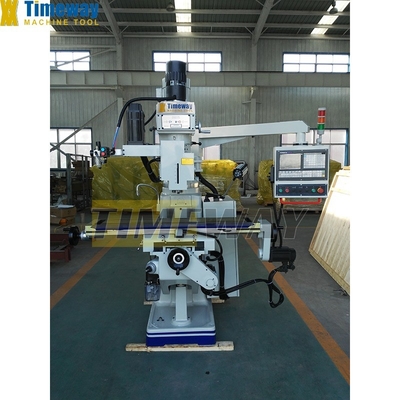

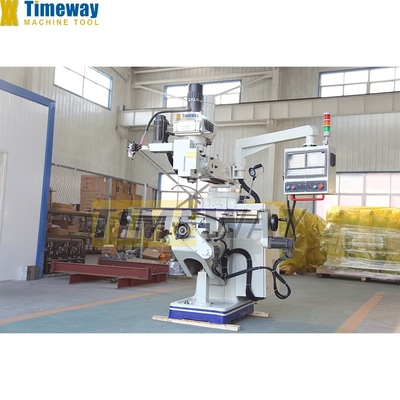

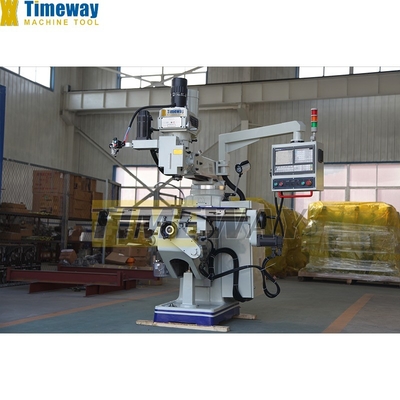

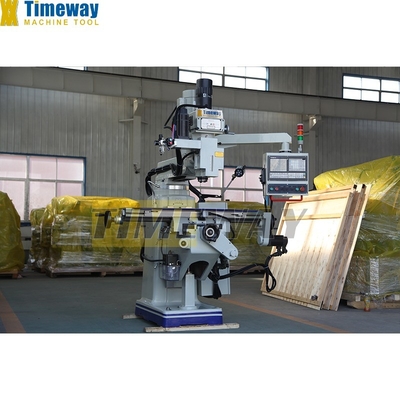

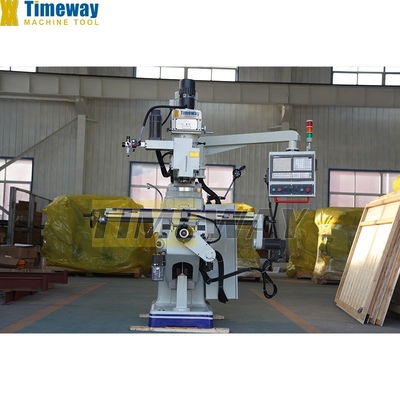

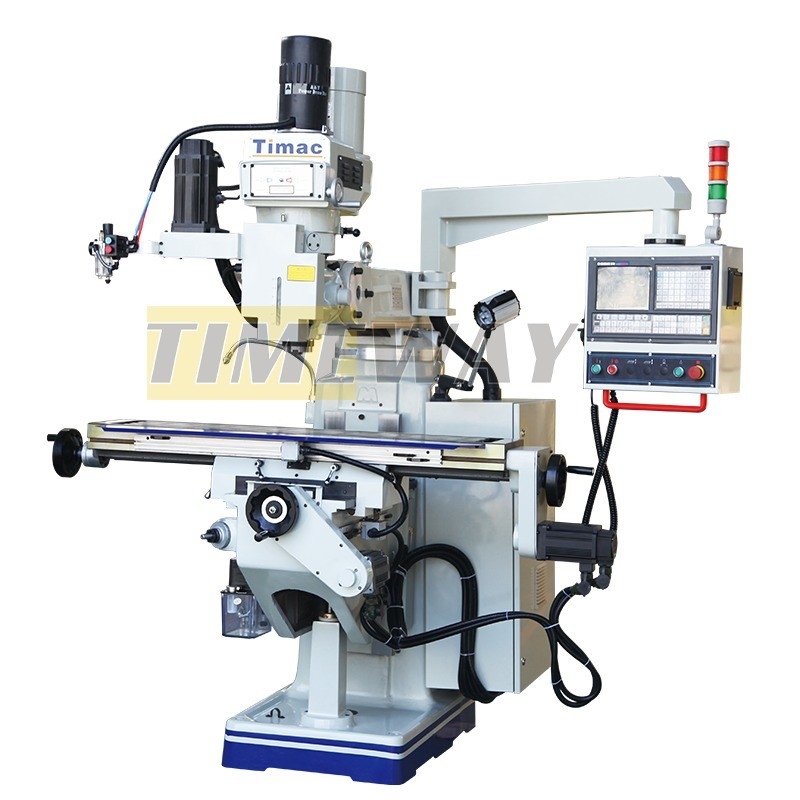

KTM250 Your Ultimate Choice For CNC Turret Milling Machine With Table Travel Z mm 103
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Model Number: | KTM250,KTM250C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | VERTICAL | Range Of Spindle Speed(r.p.m): | 65 - 4500 |
|---|---|---|---|
| Number Of Axes: | 3 | No. Of Spindles: | Single |
| Machining Capacity: | Light Duty | Spindle Taper: | R8 |
| Table Travel (X) (mm): | 850 | Table Travel (Y) (mm): | 400 |
| Table Travel (Z) (mm): | 103 | Positioning Accuracy (mm): | ±0.008 |
| Repeatability (X/Y/Z) (mm): | 0.002 | Voltage: | 380V |
| Key Selling Points: | High-accuracy | Weight (KG): | 1400 |
| Spindle Motor Power(kW): | 2.2 | Warranty: | 1 YEAR |
| Max. Table Load(kg): | 280 Kg | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | CNC |
| Product Name: | Milling Machine Center | Machine Type: | CNC MILLING |
| Keyword: | Cnc 3 Axis Milling Machine | Application: | Metal Machining |
| Function: | Vertical Milling Machining | Product Type: | Vertical CNC Machine |
| Precision: | High Precision Machine | Usage: | General |
| Color: | Customized Option | Condition: | New |
| Applicable Industries: | Manufacturing Plant, Home Use, Construction Works , Energy & Mining | Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Russia, Thailand, Morocco, Kenya, Argentina, South Korea, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh |
| Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox | Year: | 2023 |
| Port: | China Port | ||
Product Description
Products Description
Specification | Unit | KTM250 | KTM250C | |
Table size | mm | 254x1270/254x1370 | 254x1270/254x1370 | |
T-slot (No./width) | 3/16 | 3/16 | ||
Loading capacity | kg | 280 | 280 | |
Longitudinal travel (X) | mm | 750/850 | 750/850 | |
Cross travel (Y) | mm | 400 | 400 | |
Spindle quill travel (Z) | mm | 103 | 103 | |
X/Y/Z-axis rapid feed speed | mm/min | 5000 | 5000 | |
X/Y/Z-axis servo motor power | kw | 1 | 1 | |
Knee vertical travel | mm | 400 | 400 | |
Ram travel | mm | 470 | 470 | |
Distance from spindle to table | mm | 0-400 | 0-400 | |
Spindle speed | rpm | |||
Spindle taper | - | R8 (Optional: ISO40) | R8 (Optional: ISO40) | |
Main motor power | kw | 2.2 | 3.7 | |
Mill head swivel angle | ° | ±90° | ±90° | |
Mill head tilting angle | ° | ±45° | ±45° (Fix) | |
CNC controller | - | |||
Package size (LxWxH) | cm | 190x200x223 | 190x200x223 | |
Gross weight | kg | 1400 | 1600 | |
- Step pulley mill head- Coolant system - Draw bar - Work lamp - Chip collecting tray - Electric cabinet - Operation manual | - CNC Controller- Inverter mill head - Air draw bar - Slotting head - Power feed - 8pcs collet chuck - 15pcs clamping kit |
