Customized 5-axis CNC Control System Horizontal Boring Milling Machine for Production
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $70,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Size (mm): | 1320*1010 | Table Travel (X) (mm): | 1200 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 900 Mm | Table Travel (Z) (mm): | 1300 Mm |
| Number Of Axes: | 5 | Max. Table Load(kg): | 5000 |
| Travel (W-axis) (mm): | 550 Mm | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2019 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Bearing |
| Positioning Accuracy (X Axis) Mm: | 0.03 | Positioning Accuracy (Y Axis) Mm: | 0.03 |
| Positioning Accuracy (Z Axis) Mm: | 0.03 | No. Of Spindles: | Single |
| Range Of Spindle Speed(r.p.m): | 12 R.p.m | Spindle Motor Power(kW): | 15 |
| Type: | Horizontal | Condition: | New |
| CNC Or Not: | CNC | Weight (T): | 12.5 T |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops | Showroom Location: | Russia, Ukraine |
| Product Name: | High Precision Horizontal Boring Machine | Product Type: | Horizontal Boring Milling Machine |
| Keyword: | Boring Machine | Table Transverse Travel X-axis: | 1200 |
| Headstock Vertical Travel Y-axis: | 900 | Table Longitudinal Travel Z-axis: | 1300 |
| Table Size: | 1320*1010 | Color: | Accepted Customized |
| Precision: | High Precision | Port: | China Port |
Product Description
Product Description

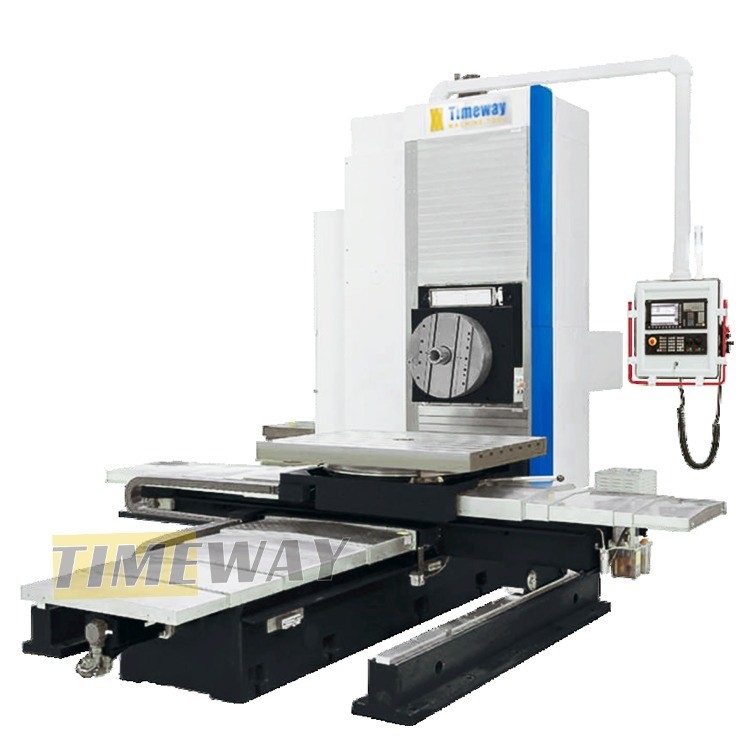

CNC Horizontal Boring Machine
This medium-sized CNC machine is widely used in the processing of large and medium-sized parts. All of them can realize automatic, high-efficiency and high-precision continuous automatic processing of milling, drilling, boring, reaming and other processes after the workpiece is clamped once, and can also be processed manually. Suitable for aviation, heavy machinery, locomotives, shipbuilding, power generation, machine tools, printing, textile, mold and other manufacturing industries.
Specification
SPECIFICATION | UNIT | HBM110C | HBM110D |
Spindle diameter | mm | Φ110 | Φ110 |
Spindle taper | / | BT50 | BT50 |
Spindle speed range | r/min | 12-1100 | 12-1100 |
Facing slide working diameter (max.) | mm | Φ720 | Φ720 |
Facing slide speed | mm | 4-125 | 4-125 |
Table size | mm | 1320x1010 | 1320x1010 |
Table load capacity | kg | 5000 | 5000 |
Spindle center-to-table distance | mm | 5-905 (5-1205) | 5-1205 (5-1605) |
Table transverse travel X-axis | mm | 1200 | 1800 |
Headstock vertical travel Y-axis | mm | 900 (1200) | 1200 (1600) |
Table longitudinal travel Z-axis | mm | 1300 | 1300 |
Spindle longitudinal travel W-axis | mm | 550 | 550 |
Facing slide travel U-axis | mm | 125 | 125 |
Machine weight | kg | 12500 | 15500 |

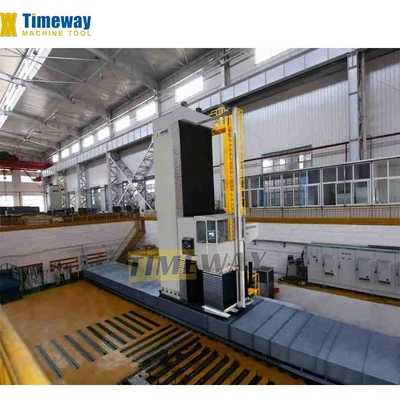

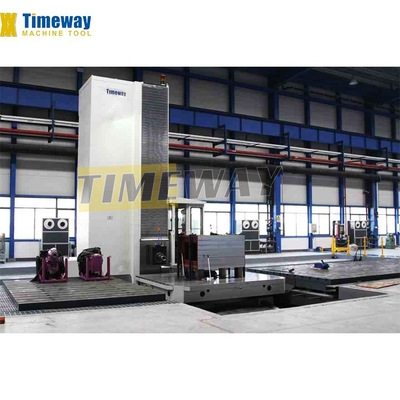

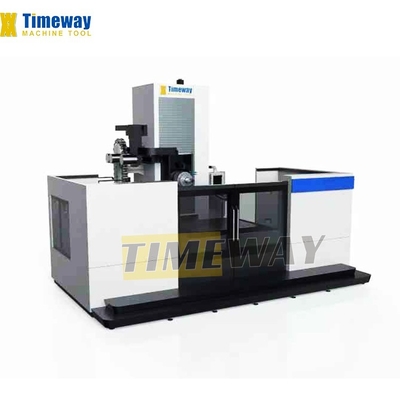

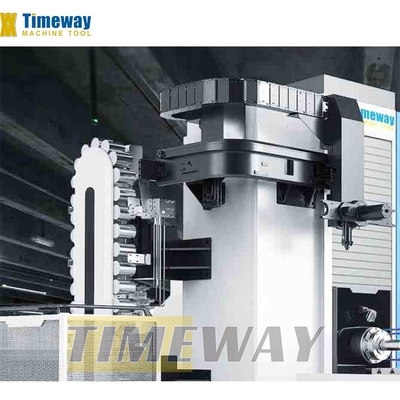

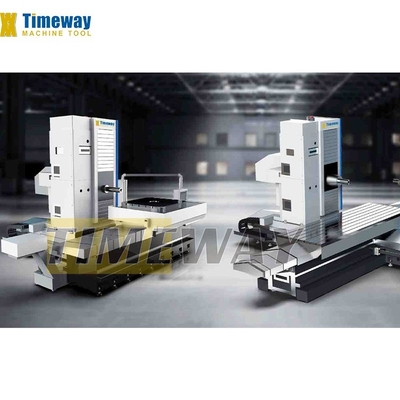

Detailed Images
Packing & Delivery
Company Profile
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export
experience;
experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
