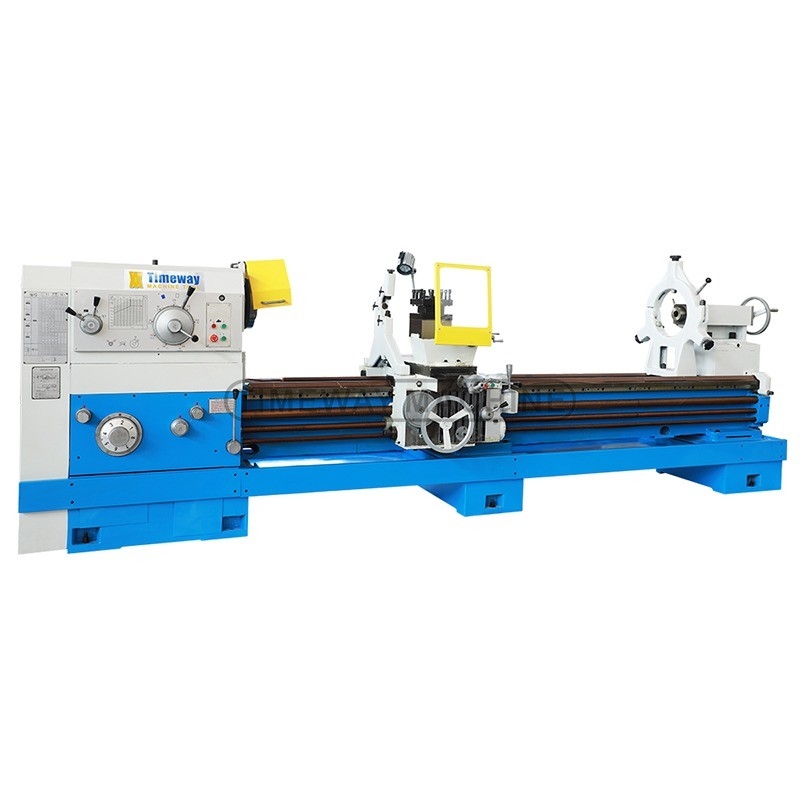

AL-940B Heavy Duty Horizontal Lathe Precision Machining Industry Standards Guaranteed
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | AL-940B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $21,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 10000 | Range Of Spindle Speed(r.p.m): | 7.5 - 1000 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 550 |
| Type: | Horizontal | Voltage: | As Customer Requirement |
| Dimension(L*W*H): | 2958x1393x1537mm | Weight (KG): | 3000 KG |
| Warranty: | 1 Year | Key Selling Points: | High Productivity |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Weight Of Workpiece(kg): | 2000 | Spindle Taper: | Metric 120 |
| Cutting Torque: | 1000 N.m | Rapid Feed Speed(mm/min): | 0 - 4000 Mm/min |
| Feed Speed(mm/min): | 0 - 2000 Mm/min | Tool Post Stations: | 4, 6 |
| Name: | Universal Lathe Machine | Machine Type: | Horizontal Metal Turning Lathe Machine |
| After-sales Service Provided: | Online Support | Keyword: | Metal Turning Lathe |
| Function: | Metal Turning | CNC Or Not: | Nomal |
| Processing: | Metal Working Lathe Machine | Distance Between Centers: | 1500/2000/3000/4000/5000/6000/8000/10000/12000mm |
| Spindle Hole: | 100mm | Color: | Standard |
Product Description
Products Description
AL-940B
Heavy Duty Horizontal Lathe:
Specification | unit | AL-940B |
Max. swing over bed | mm | 940 |
Max. swing over cross slide | mm | 660 |
Distance between centers | mm | 750/1000/1500/2000/3000/4000/5000/6000/8000/10000 |
Max. turning length | mm | 600/850/1350/1850/2850/3850/4850/5850/7850/9850 |
Max. swing over gap (optional) | mm | 1140 |
Gap length (optional) | mm | 300 |
Bed width | mm | 550 |
Loading capacity | kg | 2000 |
Spindle nose | - | C11 |
Spindle bore | mm | 100 |
Spindle taper | - | Metric 120 |
Spindle speed range | rpm | 6-800 |
Spindle speed step | steps | 18 |
Longitudinal feed range | mm/r | 0.1-24.32 (64) |
Cross feed range | mm/r | 0.05-12.16 (64) |
Leadscrew pitch | mm | 12 |
Metric threads range (kinds) | mm | 1-240 (50) |
Inch threads range (kinds) | TPI | 14-1 (26) |
Module threads range (kinds) | mm | 0.5-120 (53) |
Diametrical threads range (kinds) | DP | 28-1 (24) |
Rapid feed speed | mm/min | 4000 |
Cross slide travel | mm | 570 |
Top slide travel | mm | 200 |
Tool section size | mm | 32x32 |
Tailstock quill diameter | mm | 100 |
Tailstock quill travel | mm | 250 |
Tailstock quill taper | - | MT5 |
Main motor power | kw | 11 |
Machine length | mm | 2958/3275/3725/4225/5225/6275/7355/8355/10275/12275 |
Machine width | mm | 1430 |
Machine height | mm | 1690 |
