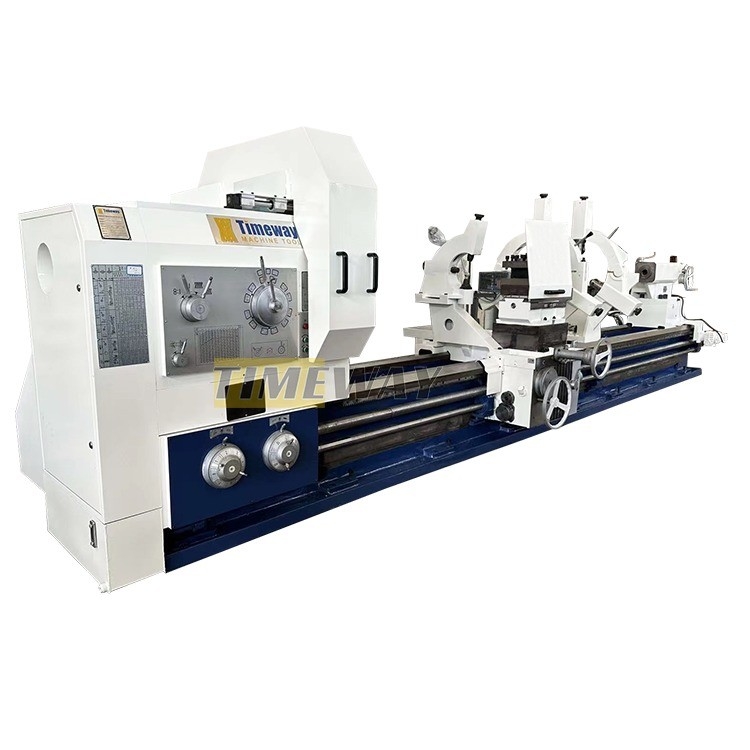

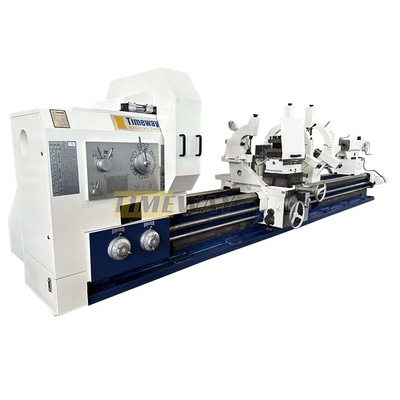

Large Type Heavy Duty Horizontal Lathe Machine with 8-Station Tool Post Al-1250C
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | Al-1250C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $17,900.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 3000 | Range Of Spindle Speed(r.p.m): | 3.15 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 400 |
| Type: | Horizontal | Voltage: | Optional |
| Dimension(L*W*H): | 6020*1995*2175 | Weight (KG): | 1900 KG |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Weight Of Workpiece(kg): | 1000kg | Spindle Taper: | ISO40, BT50 |
| Cutting Torque: | 45000 N.m | Rapid Feed Speed(mm/min): | 935 - 3740 Mm/min |
| Feed Speed(mm/min): | 526 - 680 Mm/min | Tool Post Stations: | 8, 4, 6 |
| Name: | Manual Lathe Machine | Machine Type: | Horizontal Metal Turning Lathe Machine |
| Product Name: | Manual Metal Lathe Machine | Function: | Machining Metal |
| Precision: | High Precision | Product Type: | Horizontal Lathe |
| Processing: | Heavy Duty | Color: | Customrized |
| Model: | Al-1250C | ||
Product Description
Product Description
Heavy Duty Horizontal Lathe
1.This series heavy duty lathe adopts 970mm wide induction hardened and ground bed guide
ways, so of excellent stability, high rigidity, and with maximum bearings of 10 tons between centers.
2.The main spindle is of precision roller bearings 3-point supporting structure. Saddle guide ways with Teflon belt coated. Rotating tailstock quill structure to minimize friction and heat generation.
3.These machines are suitable for various turning works, such as turning of external and internal cylindrical surfaces, end faces, and turning of metric or inch threads and diametrical pitch threads, etc.
4.Motorized short taper turning could be done by the top slide independently, and long taper's motorized turning could be done by top slide combined with longitudinal feed. Further more, these machines can also carry out drilling, trepanning and boring processes, etc.
ways, so of excellent stability, high rigidity, and with maximum bearings of 10 tons between centers.
2.The main spindle is of precision roller bearings 3-point supporting structure. Saddle guide ways with Teflon belt coated. Rotating tailstock quill structure to minimize friction and heat generation.
3.These machines are suitable for various turning works, such as turning of external and internal cylindrical surfaces, end faces, and turning of metric or inch threads and diametrical pitch threads, etc.
4.Motorized short taper turning could be done by the top slide independently, and long taper's motorized turning could be done by top slide combined with longitudinal feed. Further more, these machines can also carry out drilling, trepanning and boring processes, etc.
Specification
Specification | Al-1250C | AL-1400C | AL-1600C | AL-1800C | ||||||
Capacity | Swing over bed | 1250 | 1400 | 1600 | 1800 | |||||
Swing over cross slide | 865 | 1010 | 1210 | 1280 | ||||||
Max.length of workpiece | 3000/4000/5000/6000/8000/10000/12000/14000/16000/18000 | |||||||||
Max.length of turning | 2800/3800/4800/5800/7800/9800/11800/13800/15800/17800 | |||||||||
Width of bed | 970 | |||||||||
Max.torque of spindle | 12590 | |||||||||
Max.cutting force | 45000 | |||||||||
Max.force of logitudinal | 18000 | |||||||||
Max.weight of workpiece | 10000 | |||||||||
Spindle | Dia.of spindle bore | 130 | ||||||||
Taper of spindle | metric140 | |||||||||
No.of forward turning | 21 kinds | |||||||||
No.of reverse turning | 12 kinds | |||||||||
Spindle speed | Forward | 3.15-315 | ||||||||
Reverse | 3.5-291 | |||||||||
Feed motion | No.of feeds per revolution | (Longitudinal/tranverse)56/56 | ||||||||
Feed per revolution | Longutudinal | 0.1-12(0.004"-0.473" | ||||||||
Tranverse | 0.05-6(0.002"-0.236") | |||||||||
Upper tool-post | 0.025-3(0.001"-0.118") | |||||||||
No.and range of metric thread | 44kinds:1-120 | |||||||||
No.and range of inch thread | 31kinds:28-1/4 | |||||||||
No.and range of module thread | 45kinds:0.5-60 | |||||||||
No.and range of diametrical thread | 38kinds:1/2-56 | |||||||||
Tool post | Size of tool shank | 45×45 | ||||||||
swing range of tool post | ±90º | |||||||||
Max.travel of cross slide | 650 | |||||||||
Max.travel of top slide | 300 | |||||||||
Rapid of tool post | Longitudianl:3740 Tranverse:1870 Top slide:935 | |||||||||
Tailstock | Dia.of tailstock quill | 220 | ||||||||
Travel of tailstock quill | 300 | |||||||||
Taper hole of tailstock quill | Morse No.6# | |||||||||
Others | Main motor power | 22 | ||||||||
Power of tool post rapid move motor | 1.5 | |||||||||
Power of cooling pump | 0.15 | |||||||||
Overall dimension | Length | 6020/7020/8020/9020/11020/13020/15020/17020/19020/21020 | ||||||||
Width | 1995 | |||||||||
Height | 2175 | 2325 | 2525 | 2725 | ||||||

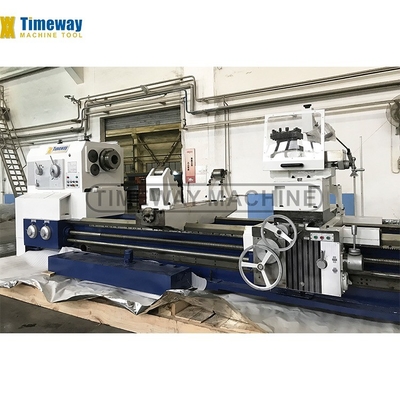

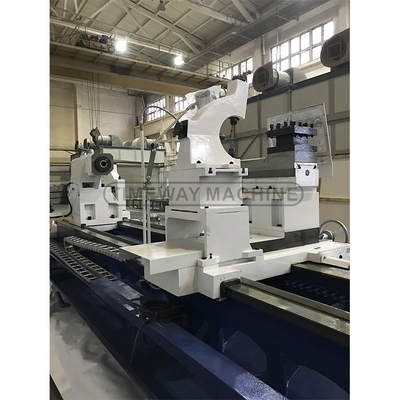

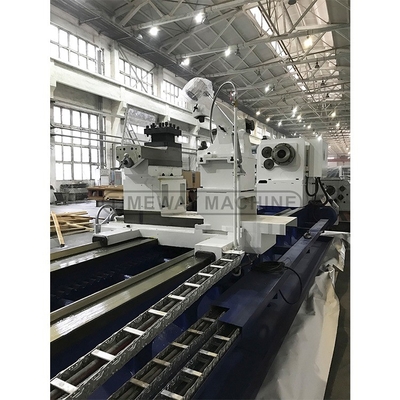

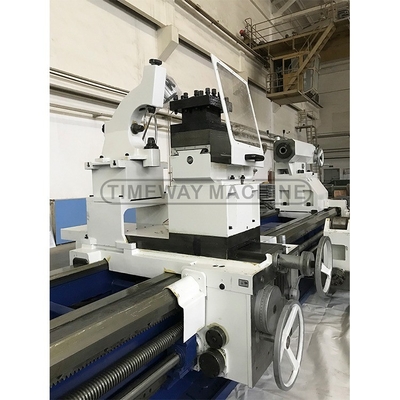

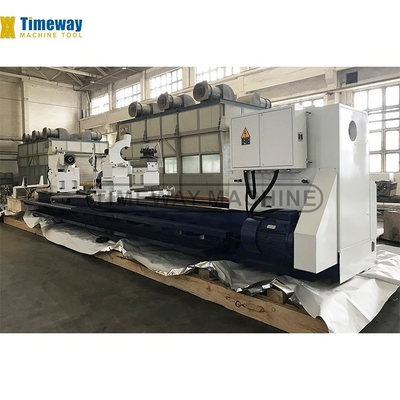

Detailed Images
