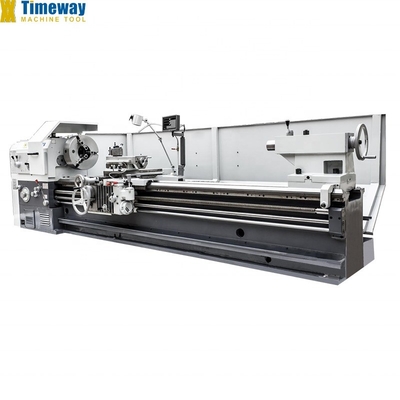

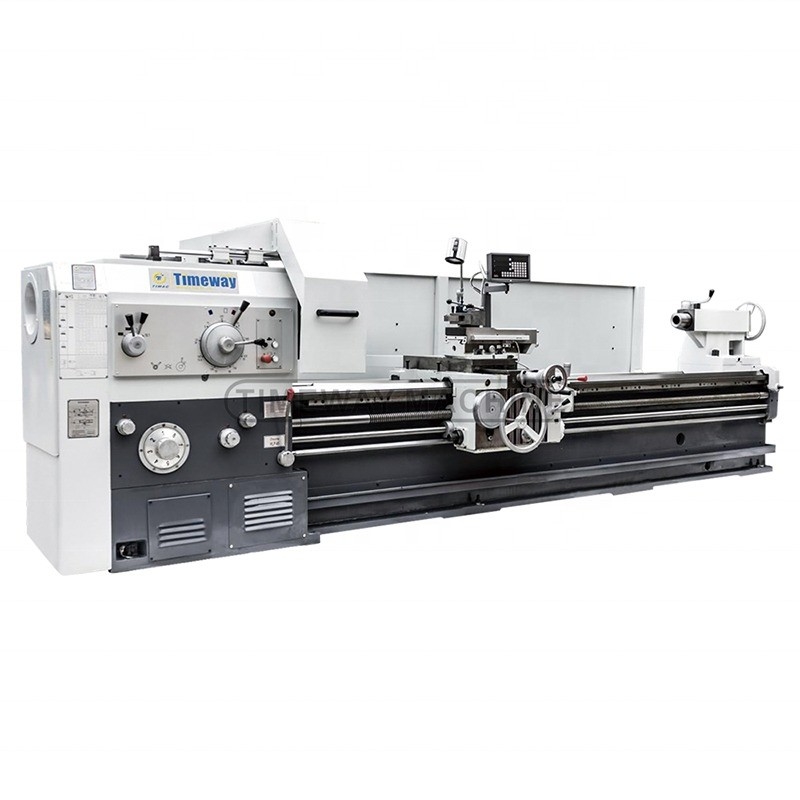

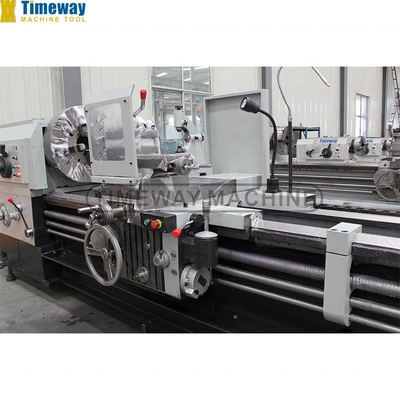

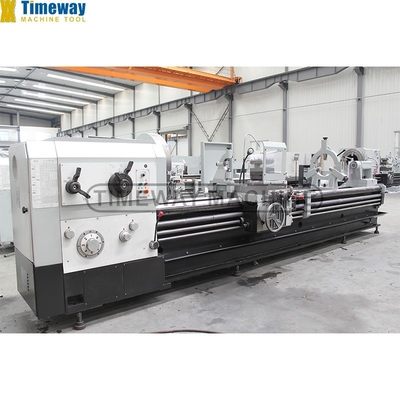

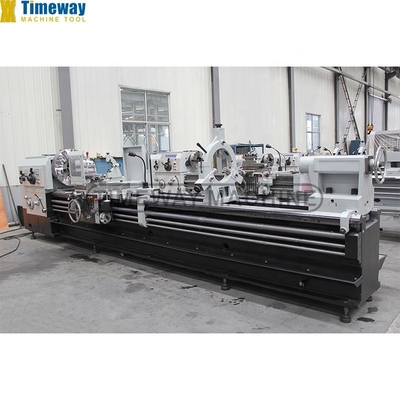

600mm Bed Width AL-800 Heavy Duty Horizontal Lathe for Professional Metal Processing
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | AL-800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $22,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 6000 | Range Of Spindle Speed(r.p.m): | 7.5 - 1000 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 600 |
| Type: | Horizontal | Voltage: | As Customer Requirement |
| Dimension(L*W*H): | 3670x1730x1450mm | Weight (KG): | 4000 KG |
| Warranty: | 1 Year | Key Selling Points: | High Productivity |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Weight Of Workpiece(kg): | 3000 | Spindle Taper: | C11 |
| Cutting Torque: | 1000 N.m | Rapid Feed Speed(mm/min): | 0 - 4000 Mm/min |
| Feed Speed(mm/min): | 0 - 2000 Mm/min | Tool Post Stations: | 8, 4, 6 |
| Name: | Universal Lathe Machine | Machine Type: | Horizontal Metal Turning Lathe Machine |
| After-sales Service Provided: | Online Support | Keyword: | Metal Turning Lathe |
| Function: | Metal Turning | CNC Or Not: | Nomal |
| Processing: | Metal Working Lathe Machine | Distance Between Centers: | 1500/2000/3000/4000/5000/6000/8000/10000/12000mm |
| Spindle Hole: | 100mm | Color: | Standard |
Product Description
Products Description
AL-800
Heavy Duty Horizontal Lathe:
SPECIFICATION | UNIT | AL-800 |
Max.swing over bed | mm | 800 |
Max.swing over cross slide | mm | 480 |
Distance between centers | mm | 1500/2000/3000/4000/5000/6000/- |
Max. turning length | mm | 1350/1850/2850/3850/4850/5850/- |
Bed width | mm | 600 |
Loading capacity | kg | 3000 |
Spindle nose | - | C11 (opt: C15) |
Spindle bore | mm | 100 (opt: 140) |
Spindle taper | - | Metric 1:20 |
Spindle speed range | rpm | Forward:6-750;Reverse:10-775 |
Spindle speed step | steps | Forward:18;Reverse:6 |
Longitudinal feed range | mm/r | 0.1-24.32(64) |
Cross feed range | mm/r | 0.05-12.16(64) |
Metric threads range(kinds) | mm | 1-240(50) |
Inch threads range(kinds) | TPI | 14-1(26) |
Module threads range(kinds) | MP | 0.5-120(53) |
Diametrical threads range(kinds) | DP | 28-1(24) |
Rapid feed speed | mm/min | 4000 |
Distance spindle center to tool base | mm | 33 |
Tool post swivel angle | . | ±90° |
Cross slide travel | mm | 500 |
Top slide travel | mm | 200 |
Top section size | mm | 32x32 |
Tailstock quill diameter | mm | 100 |
Tailstock quill travel | mm | 250 |
Tailstock quill taper | MT6 | |
Main motor power | kw | 11 |
Machine length | mm | 3670/3985/5165/6220/7400/8260/- |
Machine width | mm | 1730 |
Machine height | mm | 1450 |
Machine height | mm | 1622 |
Positive Comments From Customers

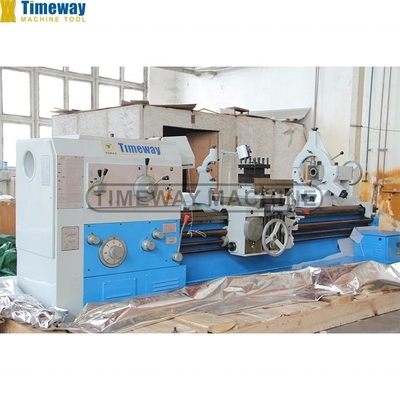

Shipping
