>> Main transmission is driven by AC motor, main drive speed changing with 16 steps is controlled by solenoid valves. All gears in the gear-box adopt high frequency quenching process.
>>Worktable adopts the type of rolling guideway, so large loading capacity of worktable and high turning precision.
 |

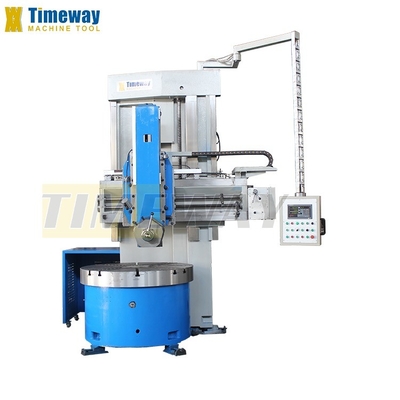

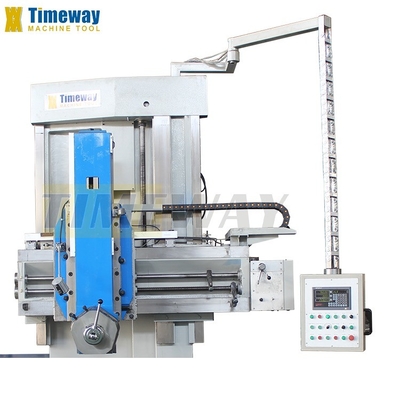

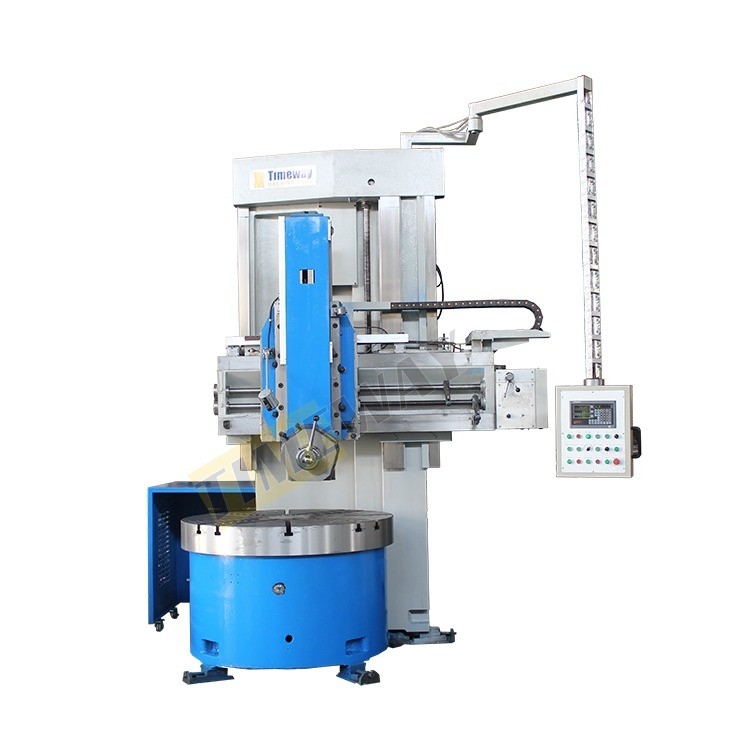

1010mm Worktable Diameter VL Series Vertical Lathe Machine for Heavy Duty Machining
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | timeway |
| Model Number: | VL1250E/1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $52,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1000 | Range Of Spindle Speed(r.p.m): | 6.3 - 200 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | VERTICAL |
| Voltage: | 380V | Dimension(L*W*H): | 2360*2300*3580mm |
| Weight (KG): | 8300 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | New Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Max. Weight Of Workpiece(kg): | 5000 |
| Spindle Taper: | ISO40, BT40 | Cutting Torque: | 17.5 N.m |
| Rapid Feed Speed(mm/min): | 0.8 - 86 Mm/min | Feed Speed(mm/min): | 0 - 1800 Mm/min |
| Tool Post Stations: | 4 | Product Name: | Single Column Vertical Lathe |
| Machine Type: | Single Column Vertical Lathe | CNC Or Not: | Normal Lathe Machine |
| Model: | VL1250E/1000 | Max. Turning Diameter: | 1250mm |
| Motor Power: | 22kw | Max. Height Of Workpiece: | 1000mm |
| Max. Weight Of Workpiece: | 5000kg | Worktable Diameter: | 1010mm |
| Machine Weight: | 8300kg | ||
Product Description
Products Description
Single Column Vertical Lathe
Specification
Specifications | Unit | VL1250E |
Max. swing diameter | mm | 1250 |
Max. turning diameter | mm | 1250 |
Max. height of workpiece | mm | 1000 |
Max. weight of workpiece | kg | 5000 |
Main motor power | kw | 22 |
Worktable diameter | mm | 1010 |
Max. torque of worktable | KN.m | 17.5 |
Worktable speed range | rpm | 6.3-200(16) |
Vertical tool-post feed speed | mm/min | 0.8-86(12) |
Tool-post rapid feed speed | mm/min | 1800 |
Vertical tool-post swivel angle | ° | ±30° |
Vertical tool-post cross travel | mm | -28-733 |
Vertical tool post vertical travel | mm | 650 |
Side tool-post cross travel | mm | 630 |
Side tool-post vertical travel | mm | 900 |
Max. cutting force of vertical tool-post | KN | 20 |
Max. cutting force of side tool-post | KN | 20 |
Machine net weight | kg | 8300 |
Machine dimension (LxWxH) | cm | 236x230x358 |
Accessories
Standard accessories
Optional accessories
- Operating panel - Hydraulic system - Lubrication system - Tool holder (1pc) - Work lamp - Tool box & tools - Level wedges & foundation bolts - Boring tool holder (1pc) - Manual pentagon toolpost - Chuck jaws (4pcs) - Pilot lamp - Operation Manuals (English) | - 2 axes DRO - Chip conveyor - Side tool-post |
Machine Details
This machine is suitable for mechanical processing of all industries. It can be used for rough and finish processing of inside and outside cylinder, cone surface, end face, grooving and cutting, as well as boring internal hole.
===================================
===================================

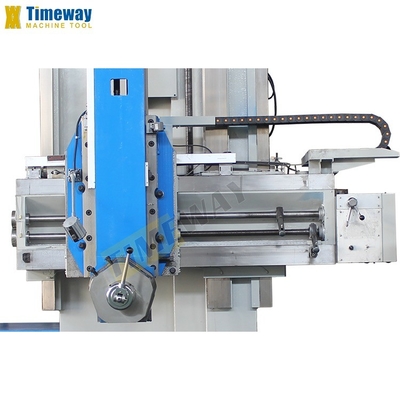

>> Vertical tool-post is equipped with five station tool-post, and adopts high precision rat-gear disk positioning, side tool-post is equipped with four-station tool-post. Both tool-posts adopt hydraulic balance.
>>Horizontal and Vertical feed of vertical tool-post use the sliding screw driving; vertical and horizontal feed of side tool-post adopt gear-rack driving.
>>Horizontal and Vertical feed of vertical tool-post use the sliding screw driving; vertical and horizontal feed of side tool-post adopt gear-rack driving.
===================================

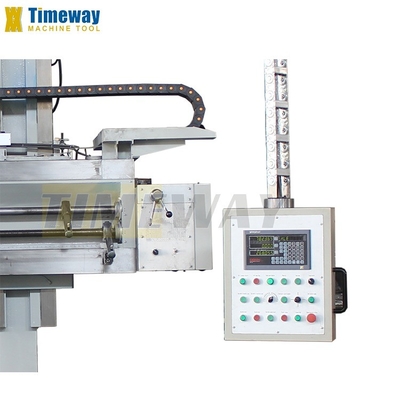

>> The machine uses PLC control, high reliability, electrical wiring in accordance with the process execution.
===================================
>> The foundation part is whole casting structure, using high strength and low stress cast iron material, annealing after
casting, aging treatment after rough machining. The column guide rail adopt grinding processing, beam guide and ram
guide adopt grinding processing after the intermediate frequency quenching
casting, aging treatment after rough machining. The column guide rail adopt grinding processing, beam guide and ram
guide adopt grinding processing after the intermediate frequency quenching
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
