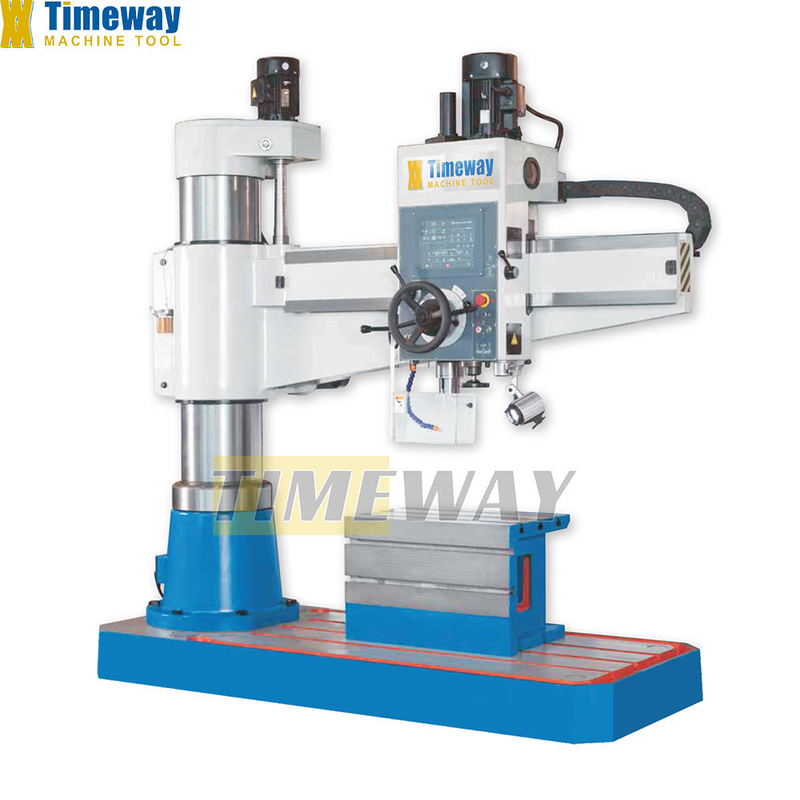

RD-616NC Radial Drilling Machine Competitive and Rigid Design for Heavy-Duty Drilling
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $3,880.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2024 |
| Warranty Of Core Components: | 1 Year | Core Components: | Engine |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Weight (KG): | 3800 | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Construction Works , Energy & Mining |
| Showroom Location: | Italy, France, Brazil, Indonesia, India, Russia, Thailand, South Korea, Chile, Colombia, Sri Lanka | Product Name: | Radial Drilling Machine |
| Model: | RD-616NC | Machine Type: | Drill Machine |
| Material: | Matel | Packing Dimensions: | 2490x1050x2780mm |
| COLOR: | Customer Choose | Max Drilling Diameter (45# Steel): | 62mm |
| Max Spindle Trave: | 315mm | Machine Weight: | 3800kg |
| Main Motor Power: | 4kw | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
STANDARD ACCESSORIES:
Box table,
Drill chuck arbor,
Morse taper drill sleeve,

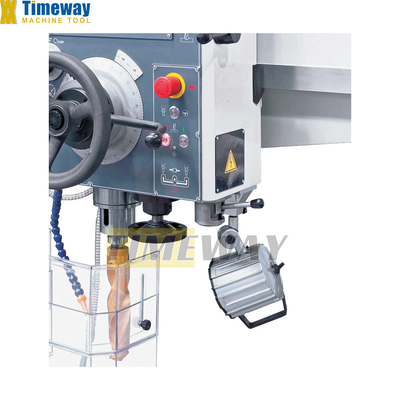

LED working lamp,
Coolant system,

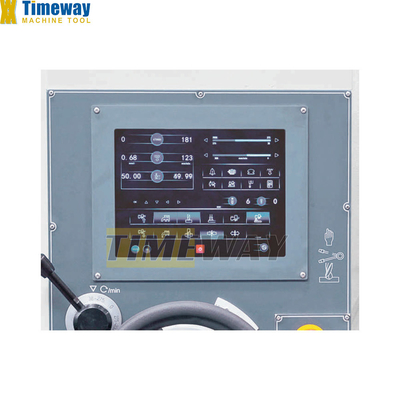

Touchscreen control panel,
Servo motor for spindle feed,
Frequency inverter,
Frequency inverter,
Lifting motor,
Hydraulic motor,
Height adjustable protective cover,
Tools & tool-box,
Operation manual.
OPTIONAL ACCESSORIES:
Rotation worktable,
Quick change collet,
Machine Vise,
Keyless drill chuck.
Specification
SPECIFICATION | UNIT | RD-616 NC |
Max drilling diameter (45# steel) | mm | 62 |
Max drilling diameter (HT200 cast iron) | mm | 72 |
Max tapping diameter (45# steel) | mm | M46 |
Max tapping diameter (HT200 cast iron) | mm | M52 |
Distance from spindle axis to column | mm | 350-1600 |
Spindle box horizontal travel (manual) | mm | 1250 |
Distance from spindle nose to base | mm | 350-1250 |
Max spindle travel | mm | 315 |
Spindle taper | - | MT5 |
Spindle speed steps | steps | stepless |
Spindle speed range | r/min | 38-2000 |
Spindle feeding steps | steps | stepless |
Spindle feeding range | mm/min | 0-300 |
Arm lifting speed | m/min | 1.2 |
Arm rotation angle | ° | ±180° |
Spindle moving distance per dial | mm | 122 |
Main motor power (variable-frequency motor) | kw | 4 |
Feed motor power (AC servo motor) | kw | 1.3 |
Arm lifting motor power | kw | 1.5 |
Oil pump motor power | kw | 0.75 |
Machine weight (without working table) | kg | 3800 |
Machine dimension (LxWxH) | mm | 2490x1050x2780 |
