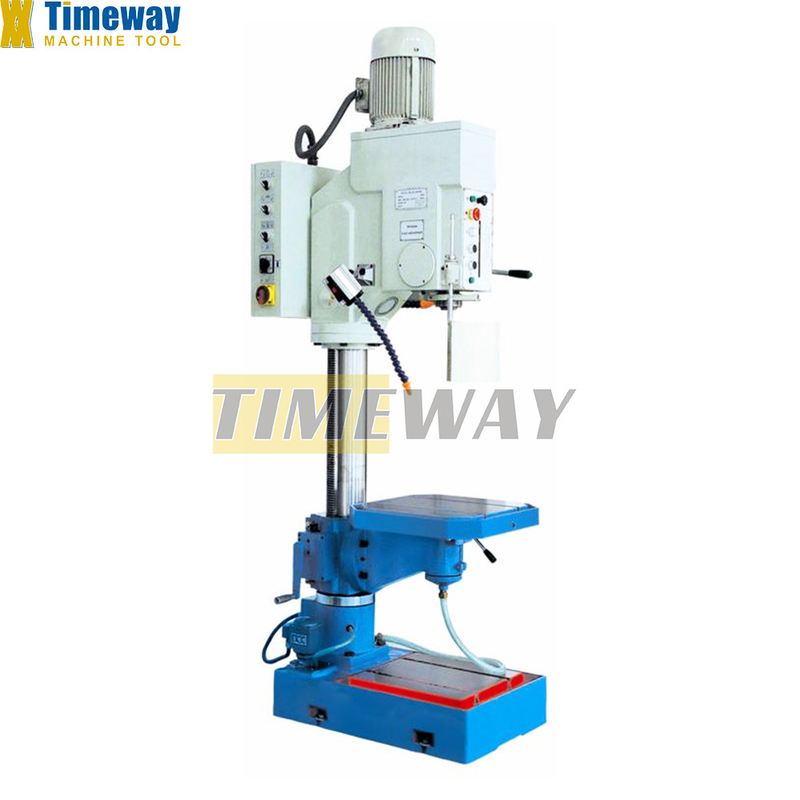

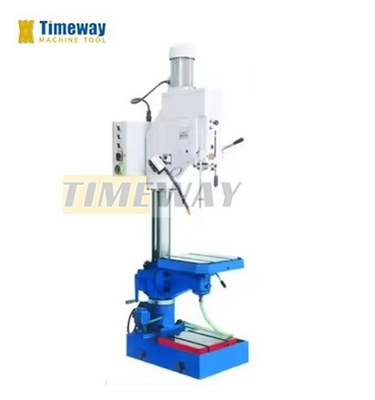

800 KG Weight Vertical Hole Drilling Machine Z-40A with 40mm Maximum Drilling Diameter
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | Z-40A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $4,750.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Type: | Bench Drilling Machine |
|---|---|---|---|
| Max. Drilling Dia. (mm): | 40 | Range Of Spindle Speed(r.p.m): | 42 - 2050 R.p.m |
| CNC Or Not: | Normal | Dimension(L*W*H): | 700x1150x2150 Mm |
| Weight (KG): | 800 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Showroom Location: | Egypt, Italy, Peru, Russia |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Construction Works , Other | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Pump, Motor, Engine |
| Max. Drilling Capacity: | 40 Mm | Max. Tapping Capacity: | M24 |
| Distance From Spindle To Column: | 360 Mm | Distance From Spindle Nose To Table: | 600 Mm |
| Distance From Spindle Nose To Base: | 1215 Mm | Spindle Travel: | 180 Mm |
| Table Travel: | 560 Mm | Swivel Ange Of Table: | ±45° |
| Spindle Taper: | MT4 | Spindle Speed Steps: | 12 Steps |
Product Description
Product Description
Specification
Specifications | Z-40A |
Max. drilling capacity | 40 mm |
Max. tapping capacity | M24 |
Distance from spindle to column | 360 mm |
Distance from spindle nose to table | 600 mm |
Distance from spindle nose to base | 1215 mm |
Spindle travel | 180 mm |
Table travel | 560 mm |
Swivel angle of table | ±45° |
Spindle taper | MT4 |
Spindle speed steps | 12 steps |
Spindle speed range | 42-2050 rpm |
Spindle feed steps | 4 steps |
Spindle feed range | 0.07,0.15,0.26,0.4 mm/r |
Column diameter | 160 mm |
Effective working area of table(LxW) | 580x450 mm |
Effective working area of base(LxW) | 820x550 mm |
Dimension of T-slot of table and base | 2-14,2-16 mm |
Main motor power (double-speed) | 2.2/2.8 kw |
Main motor speed | 960/1450 rpm |
Pump motor | 0.09 kw |
Packing size | 700x1150x2150 mm |
Gross weight | 800 kg |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
One-Stop Shopping
You can click on the picture to view the products you are interested in
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
