Stable Processing Vertical Drilling Milling Machine SDB-50B SDB-63B for Construction
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $3,660.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2024 |
| Warranty Of Core Components: | 1 Year | Core Components: | Engine |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Weight (KG): | 1500 | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Construction Works , Energy & Mining |
| Showroom Location: | Egypt, Viet Nam, Philippines, Indonesia, India, Mexico, Russia, Thailand, Romania, Bangladesh, Kazakhstan, Nigeria, Malaysia, Australia | Product Name: | Drilling & Milling Machine |
| Machine Type: | Vertical | Function: | High Efficiency |
| Type: | Easy Operate | Processing: | Stable Processing |
| Max. Milling Diameter: | 80mm | COLOR: | Customer Choose |
| Main Motor Power: | 2.2/3.7kw | Max. Drilling Diameter (steel): | 50/63mm |
| Spindle Travel: | 200/240mm | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description

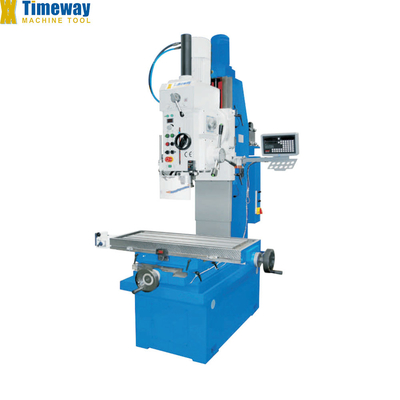

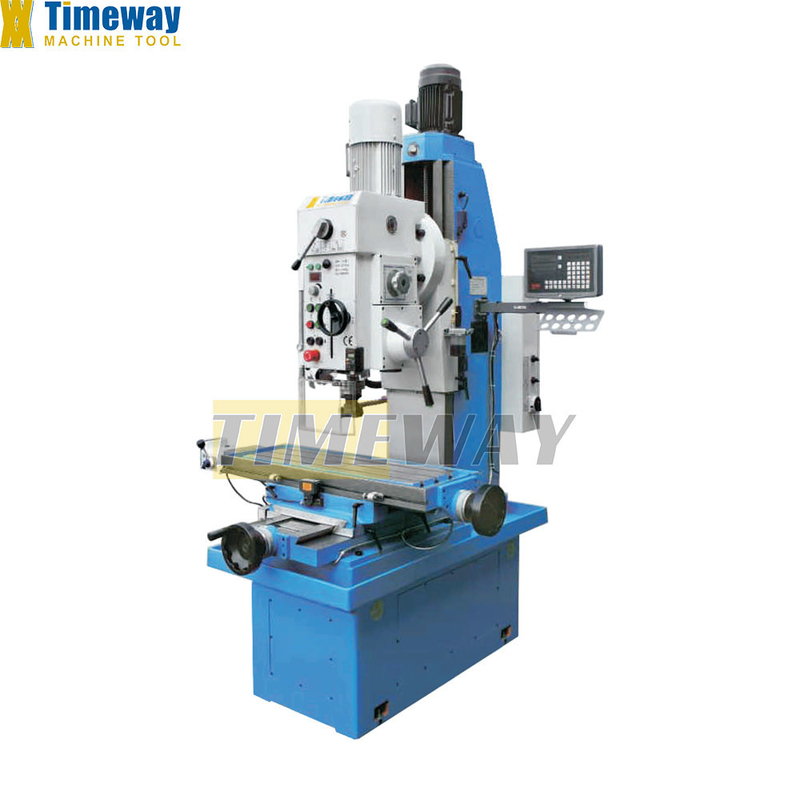

Drilling & Milling Machine SDB-50B, SDB-63B

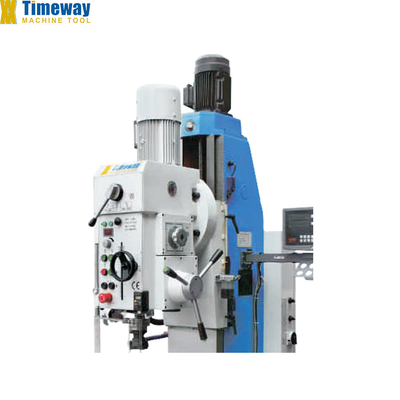

1. Spindle speed in frequency conversion and stepless timing, with spindle speed display.
2. Strength spindle, with dismounting tool device (SDB-50B).
3. Strength spindle, air bydraulic tool mounting and dismounting (SDB-63B).
2. Strength spindle, with dismounting tool device (SDB-50B).
3. Strength spindle, air bydraulic tool mounting and dismounting (SDB-63B).
STANDARD ACCESSORIES:
Key type drill chuck
Connecting bar for drill chuck
Shaft sleeve for taper shank tool
Wedge for taper shank tool
Double open end spanner
Milling cutter shank
Connecting bar for drill chuck
Shaft sleeve for taper shank tool
Wedge for taper shank tool
Double open end spanner
Milling cutter shank
OPTIONAL ACCESSORIES:
Power feed
Digital readout
Φ80 facing milling
Collect and handle of collect
125mm precision vice
Digital readout
Φ80 facing milling
Collect and handle of collect
125mm precision vice
Specification
SPECIFICATION | UNIT | SDB-50B | SDB-63B |
Max. drilling diameter (steel) | mm | 50 | 63 |
Max. tapping diameter (steel) | mm | M30 | - |
Max. milling diameter | mm | 80 | 80 |
Distance from spindle to column | mm | 450 | 450 |
Distance from spindle nose to table | mm | 550 | 680 |
Spindle travel | mm | 200 | 240 |
Spindle taper | - | MT4 | MT4 |
Spindle box travel | mm | 420 | 530 |
Spindle box lifting speed | mm/min | 1780 | 1780 |
Spindle speed steps | steps | stepless | stepless |
Spindle speed range | r/min | 55-348,348-2200 | 48-310,310-2000 |
Spindle feed steps | steps | 6 | 6 |
Spindle feed range | mm/r | 0.08-0.50 | 0.08-0.50 |
Table feed steps (X-axis) | steps | stepless | stepless |
Table feed range (X-axis) | mm/min | 4-480 | 4-480 |
Rapid feed speed | mm/min | 640 | 640 |
X/Y-axis travel | mm | 450/340 | 510/380 |
Dimension of table (LXW) | mm | 960x340 | 1020x380 |
Numbers and width of the T slots | mm | 3-14 | 3-14 |
Main motor power | kw | 2.2 | 3.7 |
Lifting motor power | kg,r/mm | 1.1, 910 | 1.1, 960 |
Table power feeder | V.N.m | 220, 20 | 220, 20 |
Machine dimension (LxWxH) | mm | 1600x1450x2420 | 1700x1510x2250 |
Machine weight | kg | 1500 | 1800 |
