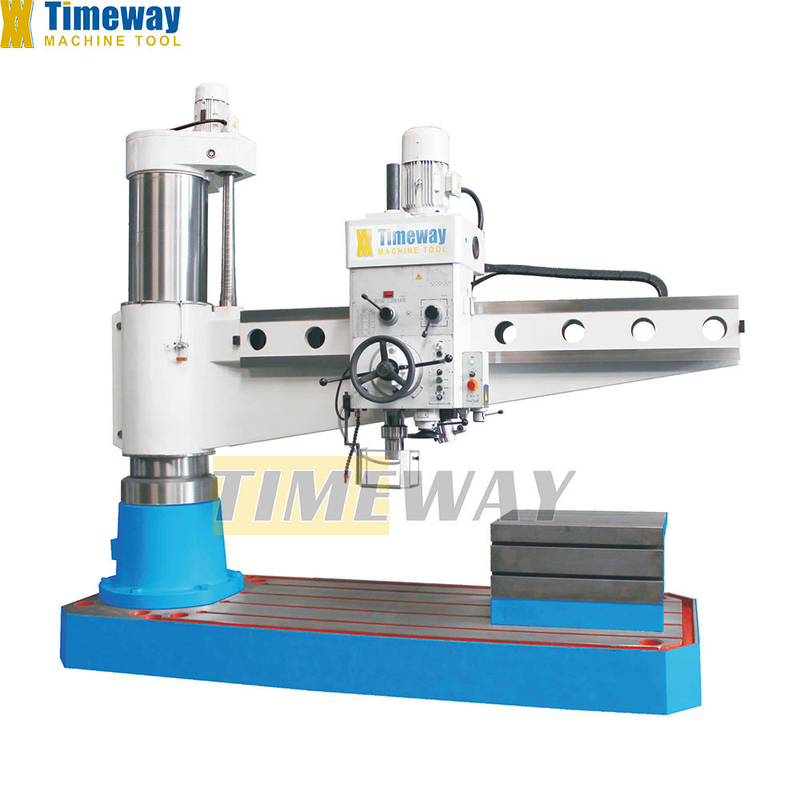

Building Material Shops Upgrade Your Drilling Game with RD-825B Radial Drilling Machine
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $4,080.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2024 |
| Warranty Of Core Components: | 1 Year | Core Components: | Engine |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Weight (KG): | 7400 | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Construction Works , Energy & Mining |
| Showroom Location: | Italy, France, Brazil, Indonesia, India, Russia, Thailand, South Korea, Chile, Colombia, Sri Lanka | Product Name: | Radial Drilling Machine |
| Model: | RD-825B | Machine Type: | Drill Machine |
| Material: | Matel | Packing Dimensions: | 3590x1250x3730mm |
| COLOR: | Customer Choose | Max Drilling Diameter (45# Steel): | 80mm |
| Max Spindle Trave: | 400mm | Machine Weight: | 7400kg |
| Main Motor Power: | 7.5kw | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
STANDARD ACCESSORIES:
Box table,
Drill chuck arbor,
Morse taper drill sleeve,
LED working lamp,
Coolant system,
Frequency inverter,
Lifting motor,
Hydraulic motor,
Height adjustable protective cover,
Tools & tool-box,
Operation manual.
OPTIONAL ACCESSORIES:
Rotation worktable,
Quick change collet,
Machine Vise,
Keyless drill chuck.
Specification
SPECIFICATION | UNIT | RD-825B |
Max drilling diameter (45# steel) | mm | 80 |
Max drilling diameter (HT200 cast iron) | mm | 90 |
Max tapping diameter (45# steel) | mm | M52 |
Max tapping diameter (HT200 cast iron) | mm | M60 |
Distance from spindle axis to column | mm | 450-2550 |
Spindle box horizontal travel (manual) | mm | 2100 |
Distance from spindle nose to base | mm | 400-2080 |
Max spindle travel | mm | 400 |
Diameter of column | mm | 450 |
Spindle taper | - | MT6 |
Spindle speed steps | steps | stepless |
Spindle speed range | r/min | 30-1400 |
Spindle feeding steps | steps | 8 |
Spindle feeding range | mm/min | 0.06-1.35 |
Arm lifting speed | m/min | 1 |
Arm rotation angle | ° | ±180° |
Spindle moving distance of each dial revolution | mm | 132 |
Main motor power (variable-frequency motor) | kw | 7.5 |
Arm lifting motor power | kw | 2.2 |
Oil pump motor power | kw | 1.1 |
Machine weight (without working table) | kg | 7400 |
Machine dimension (LxWxH) | mm | 3590x1250x3730 |
