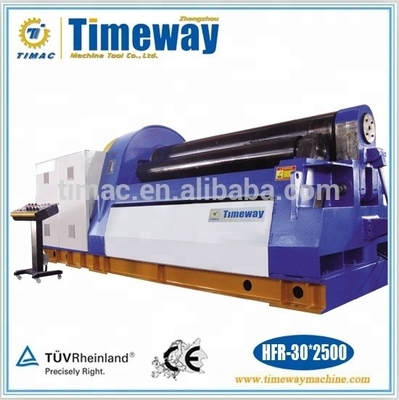

Four Roller Plate Rolling Machine HFR-30*2500 with Pre-Bending and 30mm Max. Thickness
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC, TIMEWAY |
| Certification: | ce |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $70,000.00/sets 1-2 sets |
| Packaging Details: | Wood case or wooden pallet |
| Supply Ability: | 200 Set/Sets per Year |
|
Detail Information |
|||
| Material / Metal Processed: | All Kinds Of Steel Sheet | Max. Working Length (mm): | 2500 Mm |
|---|---|---|---|
| Max. Plate Thickness (mm): | 30 Mm | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 2 Years | Core Components: | Engine, Bearing |
| No. Of Roller: | 3 | Condition: | New |
| Automation: | Semi-automatic | Extra Services: | Rolling Cone Workpiece |
| Weight (KG): | 5000 KG | Motor Power (kw): | 37 Kw |
| Machine Type: | Coiling Bending Machine, Roll Forming Machine, Roller-bending Machine | Key Selling Points: | Automatic |
| Warranty: | 1 Year | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction Works , Energy & Mining |
| Showroom Location: | South Korea, Algeria, Kazakhstan, Italy, Germany, Brazil, Indonesia | Raw Material: | Sheet / Plate Rolling |
| Power: | CNC | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Max. Thickness Of Rolling Plate: | 30mm | Max. Width Of Rolling Plate: | 2500mm |
| Voltage: | 380V/50HZ | Roller Moving Type: | Hydraulic Type |
| Main Motor Power: | 37kw | Control Type: | CNC System |
| Port: | China Port | ||
Product Description

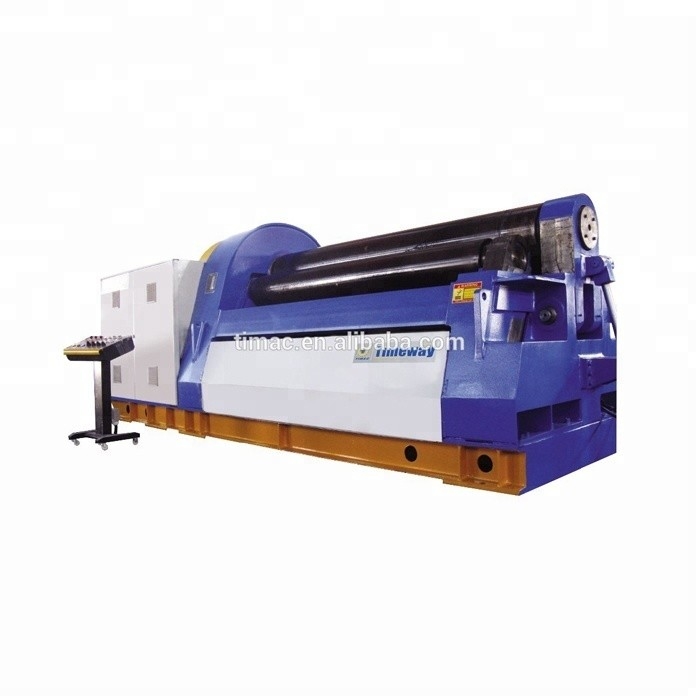

CNC Four Roller Hydraulic Plate Rolling Machine with Pre-Bending
HFR-25*2000 HFR-30*2500 HFR-100*3000
Features:

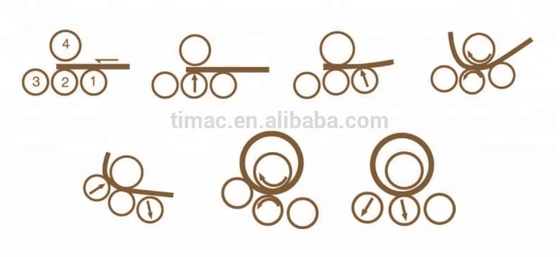

This machine adopts the four-rollers structure with the upper roller as the main drive, providing the plates bending with torque through the engagement between the gear of the moderator and the gear of the upper roller. The lower roller makes vertical movements and imposes a force on the piston through the hydraulic oil in the hydraulic cylinder so as to clamp the plate tight. Side rollers are arranged on the two sides of the lower roller, and make inclining movement along the guide rail; and provide drive through the screw, the nut, the worm and the lead screw. The advantage of the machine is that the preliminary bending and rolling of the top ends of the plates can be conducted on the same machine.
Technical Parameters of CNC Four-Rollers Rolling Machine
| Model | Max. rolling thickness (mm) | Max. pre-rolling thickness (mm) | Plate width (mm) | Diameter of upper roller (mm) | Main motor power (kw) |
| HFR-25*2000 | 25 | 20 | 2000 | 350 | 22 |
| HFR-25*2500 | 25 | 20 | 2500 | 400 | 37 |
| HFR-30*2000 | 30 | 25 | 2000 | 300 | 37 |
| HFR-30*2500 | 30 | 25 | 2500 | 400 | 37 |
| HFR-30*3000 | 30 | 25 | 3000 | 470 | 45 |
| HFR-40*3000 | 40 | 32 | 3000 | 550 | 55 |
| HFR-50*3000 | 50 | 40 | 3000 | 610 | 55 |
| HFR-60*3000 | 60 | 50 | 3000 | 670 | 75 |
| HFR-70*3000 | 70 | 60 | 3000 | 730 | 75 |
| HFR-80*3000 | 80 | 65 | 3000 | 780 | 90 |
| HFR-90*3000 | 90 | 75 | 3000 | 820 | 90 |
| HFR-100*3000 | 100 | 80 | 3000 | 880 | 110 |
