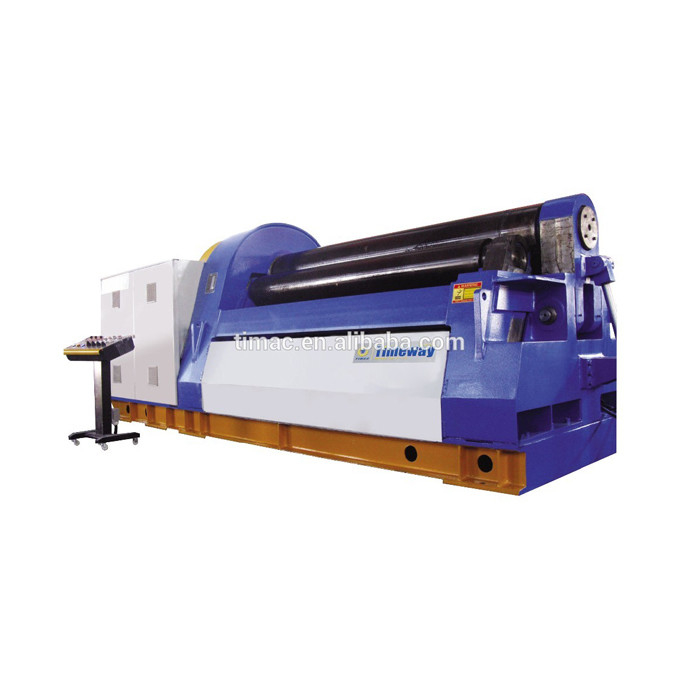

Hydraulic Plate Bending Machine with Arc Down-Adjusting Three Rollers and PLC Control
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $80,000.00/sets >=1 sets |
| Packaging Details: | Wood case or wooden pallet |
| Supply Ability: | 200 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Machine Type: | Coiling Bending Machine, Roll Forming Machine, Roller-bending Machine |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Hot Product 2019 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Raw Material: | Sheet / Plate Rolling |
| Material / Metal Processed: | All Kinds Of Steel Sheet | Power: | PLC Control And Hydraulic |
| Automation: | Semi-automatic | Extra Services: | Rolling Cone Workpiece |
| Weight (KG): | 6000 | Key Selling Points: | High-accuracy |
| Warranty: | 1 Year | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant |
| Showroom Location: | Peru, Kenya, South Korea, Chile | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Color: | According To Customer's Require | Max. Thickness Of Rolling Plate: | 12mm |
| Max. Width Of Rolling Plate: | 2000mm | Voltage: | 380V/50HZ |
| Roller Moving Type: | Hydraulic Drive | Main Motor Power: | 11kw |
| Width And Thickness Of Rolling Plate: | Customization | Control Type: | PLC |
| Structure: | Lower Rollers Arc Adjustment | Port: | China Port |
Product Description
Product Description
Plate Rolling Machine
Feature
1. The upper roller is fixed. The two lowers can move up and down in arc way around fixed roller. It can finish pre-bending and rolling by feeding once.
2. The three rollers are driving-roller. It can prevent skidding while rolling thin steel plate.
3. It's controlled by micro-machine and has digital display, simply operation and high efficiency.
4. With compact structure, it is economical and pratical and fit for rolling thin and medium plate.
2. The three rollers are driving-roller. It can prevent skidding while rolling thin steel plate.
3. It's controlled by micro-machine and has digital display, simply operation and high efficiency.
4. With compact structure, it is economical and pratical and fit for rolling thin and medium plate.
Specification
Specificaitons | Max. thickness (mm) | Max. pre-bending thickness (mm) | Max. width (mm) | Full loading min. bending dia.(mm) | Upper roller diameter (mm) | Bottom roller diameter (mm) | Rolling speed (m/min) | Main motor power (kw) |
HTR-6*2000MA | 6 | 4 | 2000 | 600 | 220 | 210 | 5.5 | 5.5 |
HTR-8*2500MA | 8 | 6 | 2500 | 650 | 240 | 240 | 5 | 11 |

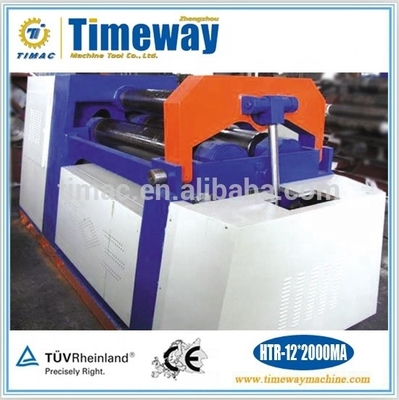

HTR-12*2000MA | 12 | 8 | 2000 | 700 | 250 | 250 | 5 | 11 |
HTR-15*2000MA | 15 | 10 | 2000 | 700 | 300 | 300 | 5 | 15 |
HTR-16*2500MA | 16 | 12 | 2500 | 800 | 330 | 320 | 5 | 18.5 |
HTR-20*2000MA | 20 | 16 | 2000 | 800 | 320 | 320 | 4.5 | 22 |
HTR-20*2500MA | 20 | 16 | 2500 | 900 | 350 | 340 | 4.5 | 22 |
HTR-25*2000MA | 25 | 20 | 2000 | 850 | 330 | 330 | 4.5 | 22 |
HTR-25*3000MA | 25 | 20 | 3000 | 1300 | 460 | 460 | 4 | 30 |
HTR-30*2000MA | 30 | 25 | 2000 | 1300 | 420 | 420 | 4 | 30 |
HTR-40*2000MA | 40 | 32 | 2000 | 1500 | 550 | 550 | 3 | 37 |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
