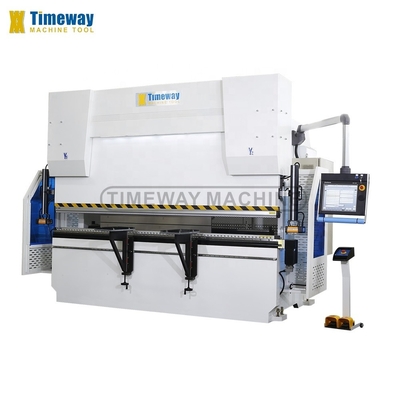

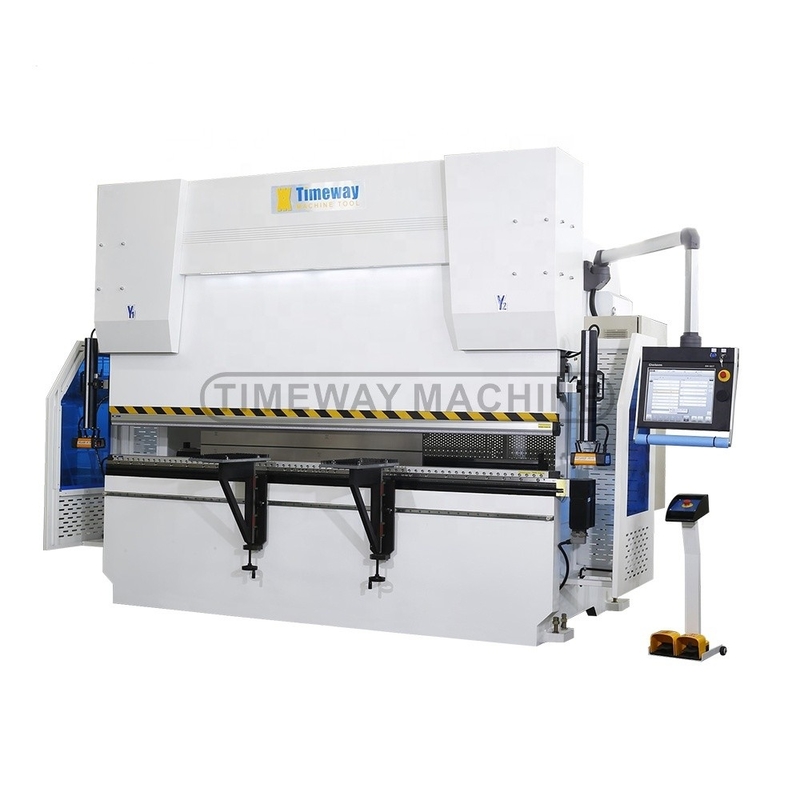

Stainless Steel CNC Hydraulic Press Brake HPB-63/3200 for Metal Processing
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | HPB-63/3200, HPB-125/4000, CPB-160/6000, CPB-700/7000, ...... |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $27,000.00/sets 1-2 sets |
| Packaging Details: | Iron pallet |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Slider Stroke (mm): | 100 Mm | Automatic Level: | Semi-automatic |
|---|---|---|---|
| Throat Depth (mm): | 200 Mm | Machine Type: | Synchronized, Press Brake |
| Length Of Working Table (mm): | 2200 | Width Of Working Table (mm): | 1700 Mm |
| Dimension: | 3800X1700X2800mm | Condition: | New |
| Material / Metal Processed: | Stainless Steel, Carbon Steel | Automation: | Automatic |
| Extra Services: | Machining | Year: | 2022 |
| Weight (KG): | 9000 | Motor Power (kw): | 4 Kw |
| Key Selling Points: | Automatic | Warranty: | 1 Year, 1 Year |
| Applicable Industries: | Building Material Shops, Manufacturing Plant | Showroom Location: | Turkey, Germany, Brazil, Peru, Indonesia, Russia, Thailand, Chile, South Africa |
| Marketing Type: | Other | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Other | Raw Material: | Sheet / Plate Rolling |
| (CNC) Hydraulic Press Brake: | (CNC) Hydraulic Press Brake | Power: | Hydraulic, CNC |
| Length Of Working Table: | 2200mm | Port: | China Port |
Product Description
(CNC) Hydraulic Press Brake
* The press brake adoption whole steel welded structure, and it has enough intensity and rigidity.
* The RAM stroke and the back gauge can be automatically adjusted by CNC controller.
* A hydraulic system is used for the machine.
* A feeding valve is used to speed up the RAM travel to save energy.
* The operations of the machine are realized by the hydraulic valves.
* A gear pump is used to reduce the noise of the machine, which can achive the environmental standard.
* The dies are made of carbon steel, which have good rigidity and durable, and they are equipped with adjusting wedges of high precision.
* The CNC system can auto calculate the bending angle.
* The CNC system can also realize alarming function, which can avoid overload and damage to machine.
| Model | Nominal pressure | Distance between uprights | Throat depth | Ram stroke | Motor power | |
| KN | mm | mm | mm | mm | kw | |
| 40/2200 | 400 | 2200 | 1700 | 200 | 100 | 4 |
| 40/2500 | 400 | 2500 | 1900 | 200 | 100 | 4 |
| 50/2500 | 500 | 2500 | 1900 | 250 | 100 | 4 |
| 50/3200 | 500 | 3200 | 2500 | 250 | 100 | 4 |
| 63/2500 | 630 | 2500 | 1900 | 250 | 120 | 5.5 |
| 63/3200 | 630 | 3200 | 2500 | 250 | 120 | 5.5 |
| 80/3200 | 800 | 3200 | 2500 | 250 | 120 | 5.5 |
| 80/4000 | 800 | 4000 | 3000 | 250 | 120 | 5.5 |
| 100/2500 | 1000 | 2500 | 1900 | 320 | 120 | 7.5 |
| 100/3200 | 1000 | 3200 | 2500 | 320 | 120 | 7.5 |
| 100/4000 | 1000 | 4000 | 3000 | 320 | 120 | 7.5 |
| 100/5000 | 1000 | 5000 | 4000 | 320 | 120 | 7.5 |
| 125/2500 | 1250 | 2500 | 1900 | 320 | 120 | 7.5 |
| 125/3200 | 1250 | 3200 | 2500 | 320 | 120 | 7.5 |
| 125/4000 | 1250 | 4000 | 3000 | 320 | 120 | 7.5 |
| 125/5000 | 1250 | 5000 | 4000 | 320 | 120 | 7.5 |
| 160/3200 | 1600 | 3200 | 2500 | 320 | 200 | 11 |
| 160/4000 | 1600 | 4000 | 3000 | 320 | 200 | 11 |
| 160/5000 | 1600 | 5000 | 4000 | 320 | 200 | 15 |
| 160/6000 | 1600 | 6000 | 4800 | 320 | 200 | 15 |
| 200/3200 | 2000 | 3200 | 2600 | 320 | 200 | 15 |
| 200/4000 | 2000 | 4000 | 3100 | 320 | 200 | 15 |
| 200/5000 | 2000 | 5000 | 4000 | 320 | 200 | 15 |
| 200/6000 | 2000 | 6000 | 4800 | 320 | 200 | 15 |
| 250/3200 | 2500 | 3200 | 2600 | 400 | 250 | 18.5 |
| 250/4000 | 2500 | 4000 | 3200 | 400 | 250 | 18.5 |
| 250/5000 | 2500 | 5000 | 4000 | 400 | 250 | 18.5 |
| 300/4000 | 3000 | 4000 | 3300 | 400 | 250 | 22 |
| 300/5000 | 3000 | 5000 | 4000 | 400 | 250 | 22 |
| 300/6000 | 3000 | 6000 | 5800 | 400 | 250 | 22 |
| 400/5000 | 4000 | 5000 | 4000 | 400 | 250 | 30 |
| 400/6000 | 4000 | 6000 | 4800 | 400 | 250 | 30 |
| 500/6000 | 5000 | 6000 | 4800 | 400 | 300 | 37 |
| 600/7000 | 6000 | 7000 | 5600 | 400 | 300 | 45 |
| 700/7000 | 7000 | 7000 | 5600 | 400 | 300 | 45 |
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
