40 tons Pressure 2200mm Length Hydraulic Press Brake for 2000 mm Working Table
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,000.00/sets 1-2 sets |
| Packaging Details: | Pallet |
| Supply Ability: | 65 Set/Sets per Month |
|
Detail Information |
|||
| Slider Stroke (mm): | 100 Mm | Automatic Level: | Semi-automatic |
|---|---|---|---|
| Throat Depth (mm): | 400 Mm | Machine Type: | Synchronized, Press Brake |
| Length Of Working Table (mm): | 2200-7000 | Width Of Working Table (mm): | 2000 Mm |
| Condition: | New | Material / Metal Processed: | Stainless Steel, Carbon Steel, Aluminum |
| Automation: | Automatic | Extra Services: | Piercing & Punching |
| Weight (KG): | 5000 | Motor Power (kw): | 5.5 Kw |
| Key Selling Points: | High-accuracy | Warranty: | 1 Year |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Germany, Peru, Indonesia, Pakistan, Kenya, Argentina, Chile, South Africa, Australia |
| Marketing Type: | Hot Product 2019 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox | Power: | Hydraulic |
| Raw Material: | Steel Bar | Nominal Pressure (kN): | 400/1250 |
| Length Of Working Table: | 2200mm | Warranty Period: | 1 Year |
| Port: | Any China Port | ||
Product Description

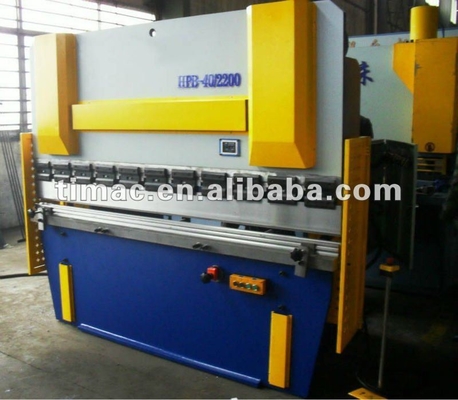

40 tons Pressure x 2200mm Length Hydraulic Press Brake HPB-40/2200
Features:
Hydraulic Press Brake
1. Steel-welded construction, vibration to eliminate stress, with high strength and good rigidity.
2. Hydraulic top-strive, steadiness and reliability.
3. Mechanical stop, steel torsion bar to maintain synchronization, high precision.
4. Motorized-adjusting device of backgauge and rams stroke, fine adjusting by handwheel, numerical display.
5. Deflection compensation unit installed on the top die. Manual crowned bottom die holder is adopted for the machine.
6. Travel limit protection, and full machine guarding with safety interloocker.
Parameter:
| Specification | Nominal pressure (KN) | Length of working table (mm) | Depth of throat (mm) | Ram stroke (mm) | Number of stroke(m/min-1) | Motor power(kw) |
| HPB-40/2200 | 400 | 2200 | 200 | 100 | 11 | 4 |
| HPB-40/2500 | 400 | 2500 | 200 | 100 | 11 | 4 |
| HPB-63/2500 | 630 | 2500 | 250 | 100 | 10 | 5.5 |
| HPB-63/3200 | 630 | 3200 | 250 | 100 | 10 | 5.5 |
| HPB-80/3200 | 800 | 3200 | 320 | 150 | 8 | 7.5 |
| HPB-80/4000 | 800 | 4000 | 320 | 150 | 8 | 7.5 |
| HPB-100/3200 | 1000 | 3200 | 320 | 150 | 8 | 7.5 |
| HPB-100/4000 | 1000 | 4000 | 320 | 150 | 8 | 7.5 |
| HPB-125/3200 | 1250 | 3200 | 320 | 150 | 8 | 7.5 |
| HPB-125/4000 | 1250 | 4000 | 320 | 150 | 8 | 7.5 |
| HPB-160/3200 | 1600 | 3200 | 400 | 180 | 8 | 11 |
| HPB-160/4000 | 1600 | 4000 | 400 | 180 | 8 | 11 |
| HPB-160/6000 | 1600 | 6000 | 400 | 180 | 7 | 15 |
| HPB-200/3200 | 2000 | 3200 | 400 | 200 | 7 | 15 |
| HPB-200/4000 | 2000 | 4000 | 400 | 200 | 7 | 15 |
| HPB-200/6000 | 2000 | 6000 | 400 | 200 | 7 | 15 |
| HPB-250/6000 | 2500 | 6000 | 400 | 250 | 7 | 18.5 |
| HPB-300/6000 | 3000 | 6000 | 400 | 250 | 7 | 22 |
| HPB-500/6000 | 3000 | 7000 | 400 | 250 | 7 | 37 |
| HPB-600/7000 | 4000 | 7000 | 400 | 250 | 7 | 45 |
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
