Normal CNC 3MB9817 Cylinder Head Honing Machine with 1000KG Load Capacity Limitation
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
| Certification: | CE, ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,000.00/sets >=1 sets |
| Packaging Details: | wooden case / plywood case |
| Supply Ability: | 1000 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Construction Works , Energy & Mining | Showroom Location: | United States, Italy, Brazil, Peru, Mexico, Argentina, Colombia, Sri Lanka, Bangladesh, Kazakhstan, Kyrgyzstan, Uzbekistan, Australia |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Condition: | New, New |
| CNC Or Not: | Normal | Voltage: | As Customers' Requirements |
| Dimension(L*W*H): | 1640x1670x1920mm | Weight (KG): | 1000 |
| Power (kW): | 1.5 | Key Selling Points: | High Safety Level |
| Warranty: | 1 Year | Product Name: | Cylinder Head Honing Machine |
| Power(W): | 1.5KW | Weight: | 1000KG |
| Key Selling Points: | Competitive Price | After Warranty Service: | Online Support |
| Functions: | Honing Engine Cylinders | After-sales Service Provided: | Video Technical Support |
| Key Word: | Cylinder Honing Machine | Port: | China Port |
Product Description
Product Description

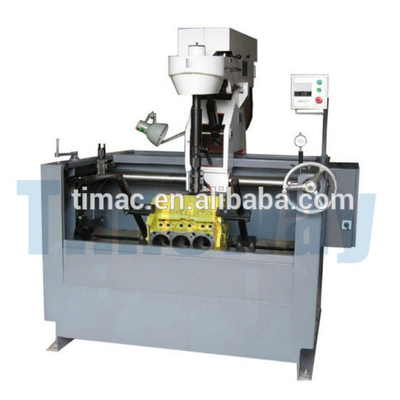

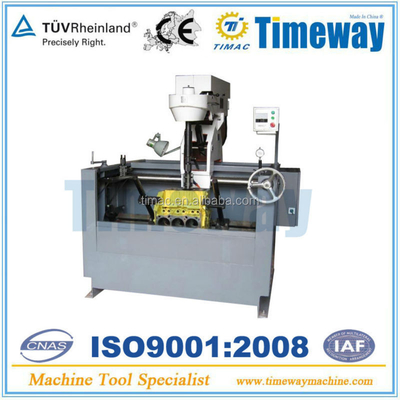

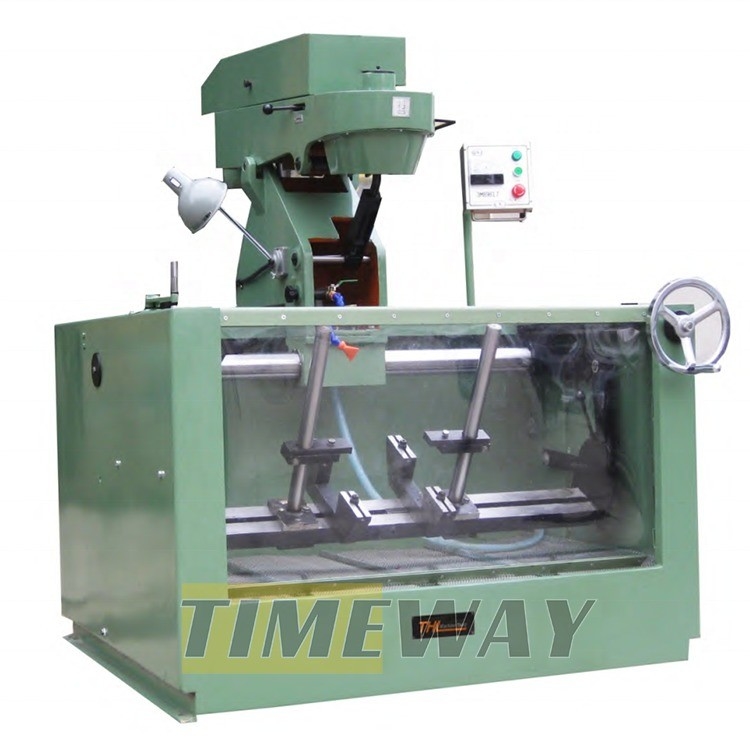

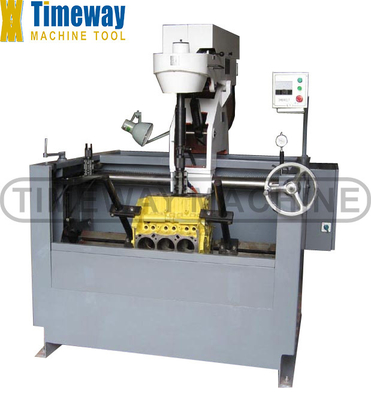

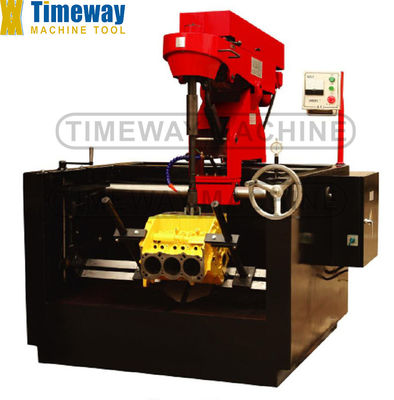

VERTICAL CYLINDER HONING MACHINE 3MB9817
Features:
1. The machine is mainly used for honing single line engine cylinders and V-engine cylinders of automobiles motor cycles and tractors and also for other machine element holes.
2. The machine table can shift of the fixture change 0°, 30°, 45°.
3. The machine table is easily up and down manually 0-180mm.
4. Reverse precision 0-0.4mm.
5. Select mesh-wire degree 0°-90° or non-mesh-wire.
6. Reciprocating speed of up and down 0-30m/min.
7. The machines reliable performance widely use honing, easy operation and high productivity.
8. Good rigidity, amount of cutting.
2. The machine table can shift of the fixture change 0°, 30°, 45°.
3. The machine table is easily up and down manually 0-180mm.
4. Reverse precision 0-0.4mm.
5. Select mesh-wire degree 0°-90° or non-mesh-wire.
6. Reciprocating speed of up and down 0-30m/min.
7. The machines reliable performance widely use honing, easy operation and high productivity.
8. Good rigidity, amount of cutting.
Specification | Unit | 3MB9817 |
Max. diameter of hol honed | mm | 25-170 |
Max. depth of hole honed | mm | 320 |
Spindle speed(4spets) | mm | 120,160,225,290 |
Stork(3spets) | a/min | 35,44,65 |
Power of main motor | Kw | 1.5 |
Power of cooling pump motor | Kw | 0.125 |
Machine working inside cavity dimensions(LxW) | mm | 1400x870 |
Overall dimensions(L×W×H ) | mm | 1640x1670x1920 |
Machine Weight | Kg | 1000 |
