Vertical Cylinder Boring Milling Grinding Machine for Motorcycle Remanufacturing
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $18,800.00/sets 1-2 sets |
| Packaging Details: | wooden / plywood case, or pallet |
| Supply Ability: | 500 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Weight (KG): | 3500 | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction Works , Energy & Mining |
| Showroom Location: | Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain | After-sales Service: | Engineers Available To Service Machinery Overseas |
| Table Cross Travel: | 200 Mm | Boring Surface Roughness: | Ra2.5 Um |
| Grinding Surface Roughness: | Ra0.8 Um | Product Name: | Vertical Cylinder Boring Milling Grinding Machine |
| Name: | Vertical Boring Machine | Type: | Vertical Cylinder Boring Milling Grinding Machine |
| Color: | Customer Choose | Key Selling Point: | Competitive Price |
| Application: | Riveters | Port: | China Port |
Product Description
Product Description

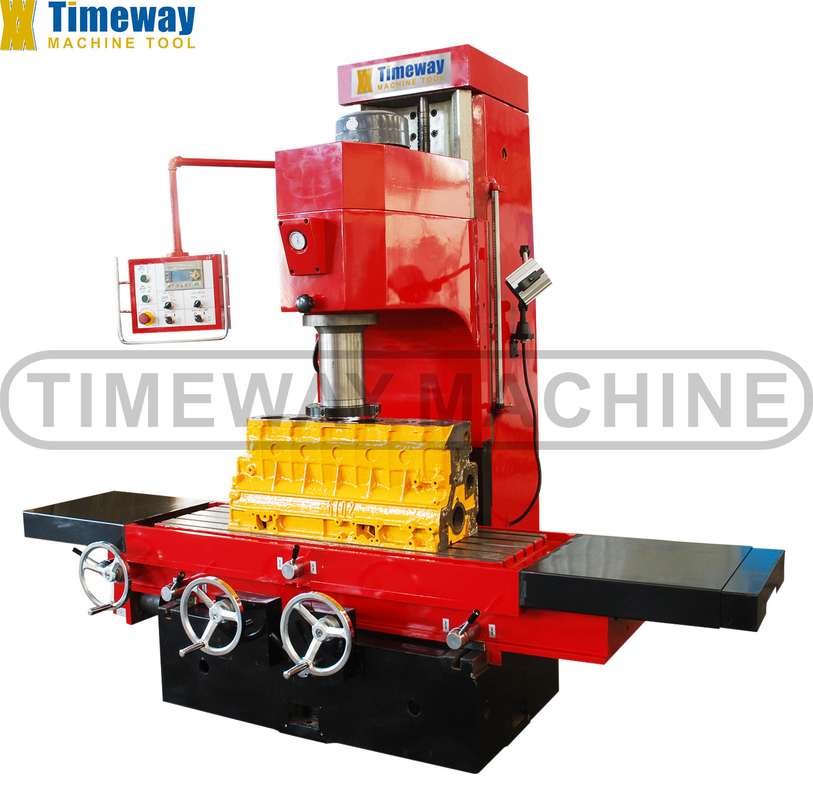

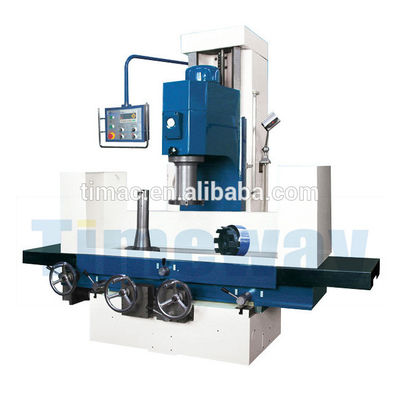

Vertical Boring Milling Grinding Machine
Features:

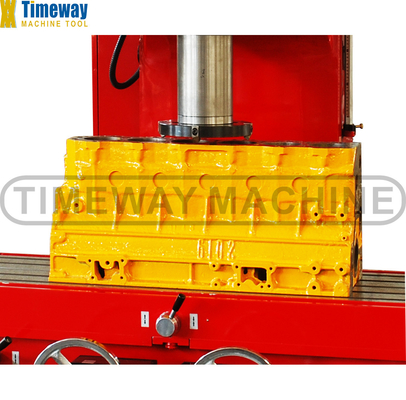

This serial model can be widely used in boring automobile engine cylinders, cylinder sleeves of diesel engines and compressors,as well as various high precision holes boring, surface milling grinding of other workpieces.
Specification

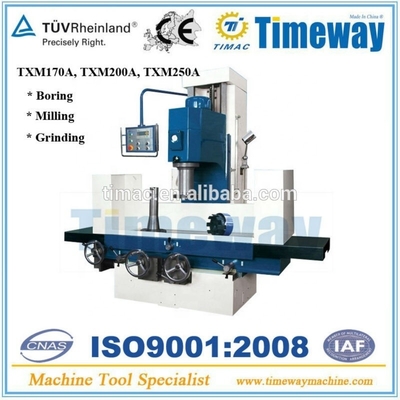

Specification | TXM170A | TXM200A | TXM250A | ||||
Max. boring diameter | Φ170 mm | Φ200 mm | Φ250 mm | ||||
Max. boring depth | 400 mm | 500 mm | 500 mm | ||||
Max. grinding area | 400×1000 mm | ||||||
Max. milling area | 400×1000 mm | ||||||
Max. drilling & reaming diameter | Φ30 mm | ||||||
Spindle speed | 120-1200 r/min | ||||||
Rapid moving speed of the spindle | 1000 mm/min | ||||||
Spindle travel | 700 mm | ||||||
Working table size (W×L) | 500×1250 mm | 500×1500 mm | |||||
Main motor | 5.5 Kw | ||||||
Processing roughness | Boring | Ra 2.5 | |||||
Milling | Ra 3.2 | ||||||
Grinding | Ra 0.8 | ||||||
Overall dimensions (L×W×H) | 2600×1630×2300mm | ||||||
Packing dimensions (L×W×H) | 2250×1900×2280mm | ||||||
N.W./G.W. | 3300/3600 kg | 3500/3800 kg | |||||
Positive Comments From Customers
Company Profile
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
