Competitive Vertical Fine Boring Machine T170A T200A T250A for Engine Cylinder Block
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,000.00/sets >=1 sets |
| Packaging Details: | wooden / plywood case, or pallet |
| Supply Ability: | 500 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Warranty: | 1 Year | Key Selling Points: | Energy Saving |
| Weight (KG): | 3.8 | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction Works , Energy & Mining |
| Showroom Location: | Egypt, Brazil, Kenya, Kazakhstan, Japan | After-sales Service: | Engineers Available To Service Machinery Overseas |
| Vertical Boring Machine: | Cylinder Head & Engine Block Boring Machine | Brand: | TIMAC |
| Style: | Fashion | Max. Boring Depth: | 400 Mm |
| Spindle Speed: | 120-860 Rpm | Feeding Of The Spindle: | 14-900 Mm/min |
| Color: | Customer Choose | Key Selling Point: | Competitive Price |
| Model: | T170A ,T200A, T250A | Port: | China Port |
Product Description
Product Description

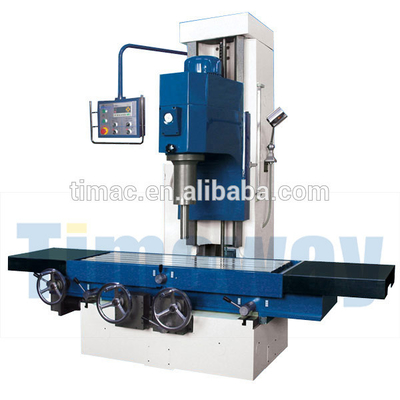

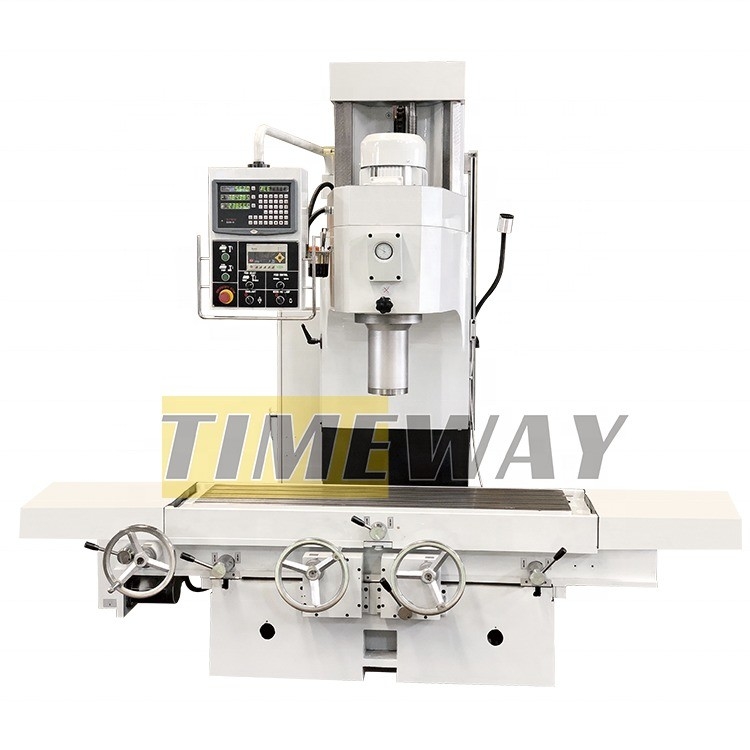

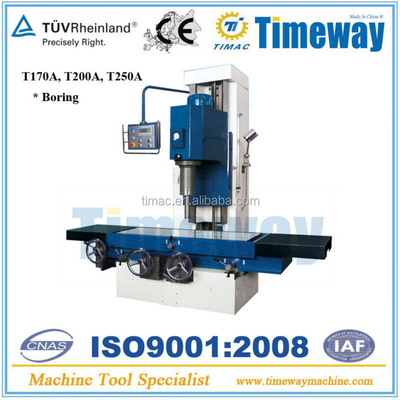

Vertical Fine Boring Machine
This serial model can be widely used in boring automobile engine cylinders, cylinder sleeves of diesel engines and compressors, as well as various high precision holes boring.
Related Machines:
Vertical Boring Machine: T170S;
Vertical Boring Milling Machine: TX170A, TX200A, TX250A;Vertical Boring Milling Grinding Machine: TXM170A, TXM200A, TXM250A;
Specification
Specification | Unit | T170A | T200A | T250A | ||||
Max. boring diameter | mm | Φ170 | Φ200 | Φ250 | ||||
Max. boring depth | mm | 400 | 500 | 500 | ||||
Max. drilling & reaming diameter | mm | Φ30 | ||||||
Spindle speed | rpm | 120-860 | ||||||
Feeding of the spindle | mm/min | 14-900 | ||||||
Rapid moving speed of the spindle | mm/min | 1000 | ||||||
Spindle travel | mm | 700 | ||||||
Distance between spindle end face and table | mm | 0-700 | ||||||
Distance between spindle axis and carriage vertical plane | mm | 350 | ||||||
Max. longitudinal travel of working table | mm | 1500 | ||||||
Max. cross travel of the working table | mm | 200 | ||||||
Working table size (W×L) | mm | 500x1250 | 500x1500 | |||||
Quantity of “T” Slot | qty. | 5 | ||||||
Main motor | kw | 3 | ||||||
Boring holes precision | H7 | |||||||
Overall dimensions (L×W×H) | mm | 2600x1630x2300 | ||||||
Packing dimensions (L×W×H) | mm | 2250x1900x2270 | ||||||
N.W./G.W. | kg | 3300/3600 | 3500/3800 | |||||
