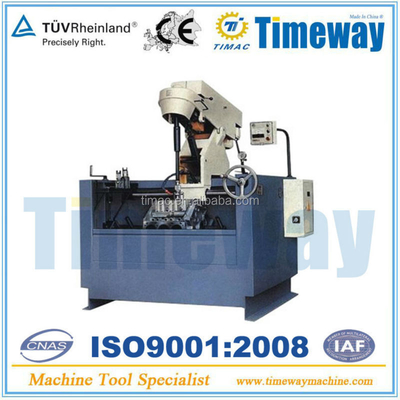

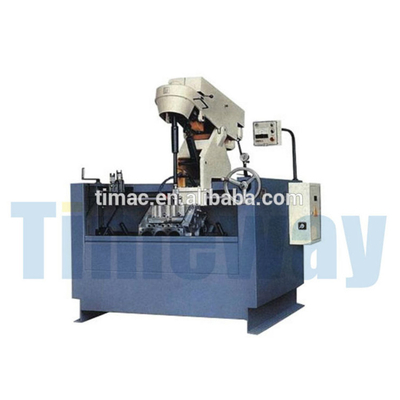

Long Service Life Vertical Cylinder Honing Machine 3MB9817 for Machinery Repair Shops
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $6,500.00/sets >=1 sets |
| Packaging Details: | wooden case / plywood case |
| Supply Ability: | 1000 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Construction Works , Energy & Mining | Showroom Location: | Egypt, Philippines, India, Mexico, Russia, Argentina, South Korea |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Condition: | New, New |
| CNC Or Not: | Normal | Voltage: | As Customers' Requirements |
| Dimension(L*W*H): | 1640x1670x1920mm | Weight (KG): | 1000 |
| Power (kW): | 1.5 | Key Selling Points: | Competitive Price |
| Warranty: | 1 Year | After-sales Service: | Engineers Available To Service Machinery Overseas |
| Power(W): | 1.5KW | Weight: | 1000KG |
| Color: | Customized | Key Selling Point: | Competitive Price |
| Product Name: | Honing Machine | Type: | Cylinder Honing Machine |
| Key Word: | Vertical Cylinder Honing Machine | Name: | China Cylinder Honing Machine |
| Port: | China Port | ||
Product Description
Summary

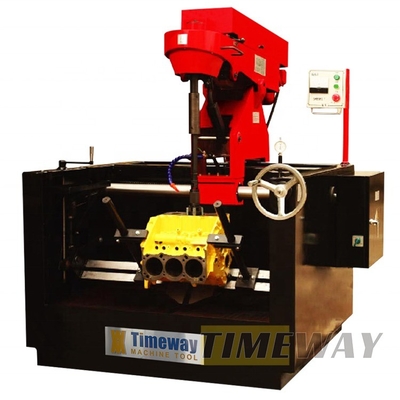

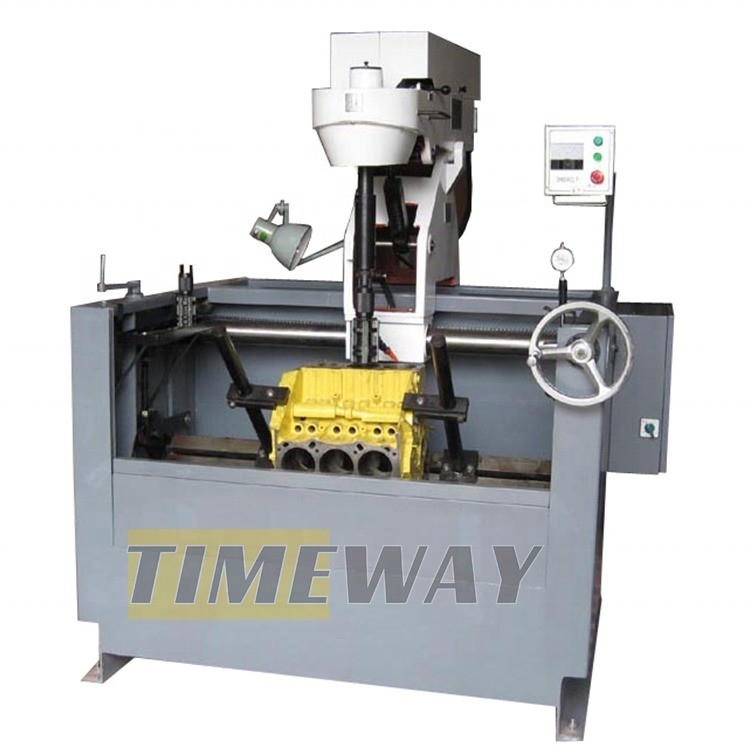

The machine is mainly used for honing single line engine cylinders and V-engine cylinders of automobiles motor cycles and tractors and also for other machine element holes.
Product Description
Feature：
1. The machine table can shift of the fixture change 0°, 30°, 45°.
2. The machine table is easily up and down manually 0-180mm.
3. Reverse precision 0-0.4mm.
4. Select mesh-wire degree 0°-90° or non-mesh-wire.
5. Reciprocating speed of up and down 0-30m/min.
6. The machines reliable performance widely use honing, easy operation and high productivity.
7. Good rigidity, amount of cutting.
2. The machine table is easily up and down manually 0-180mm.
3. Reverse precision 0-0.4mm.
4. Select mesh-wire degree 0°-90° or non-mesh-wire.
5. Reciprocating speed of up and down 0-30m/min.
6. The machines reliable performance widely use honing, easy operation and high productivity.
7. Good rigidity, amount of cutting.
Specification
Specification | Unit | 3MB9817 |
Max. diameter of hol honed | mm | 25-170 |
Max. depth of hole honed | mm | 320 |
Spindle speed(4spets) | mm | 120,160,225,290 |
Stork(3spets) | a/min | 35,44,65 |
Power of main motor | Kw | 1.5 |
Power of cooling pump motor | Kw | 0.125 |
Machine working inside cavity dimensions(LxW) | mm | 1400×870 |
Overall dimensions(L×W×H ) | mm | 1640×1670×1920 |
Machine Weight | Kg | 1000 |
Positive Comments From Customers
Company Profile
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
