VERTICAL Precision Valve Seat Boring Machine TL120 2.2kW Spindle Motor Power for Boring
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE & ISO9001:2008 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $29,950.00/sets 1-2 sets |
| Packaging Details: | in wooden case (can be fumigated) or as your request |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 120 Mm | Table Travel (Y) (mm): | 0 Mm |
|---|---|---|---|
| Table Travel (Z) (mm): | 0 Mm | Number Of Axes: | 2 |
| Travel (W-axis) (mm): | 120 Mm | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Range Of Spindle Speed(r.p.m): | 1000 R.p.m | Spindle Motor Power(kW): | 2.2 |
| Type: | VERTICAL, Valve Seat Boring Machine T L120 | Condition: | New |
| CNC Or Not: | Normal | Production Capacity: | High |
| Voltage: | As Your Request | Dimension(L*W*H): | 1400*900*2000mm |
| Weight (T): | 1.5 T | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Applicable Industries: | Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction Works , Energy & Mining |
| Showroom Location: | Chile, UAE, Colombia, Romania, Bangladesh, South Africa, Kyrgyzstan, Nigeria, Uzbekistan | After-sales Service: | Engineers Available To Service Machinery Overseas |
| Color: | As Your Request | Max. Workpiece Width: | 500 Mm |
| After-sales Service Provided: | Online Support, Video Technical Support | After Warranty Service: | Video Technical Support, Online Support |
| Local Service Location: | Egypt, United States, Italy, Brazil, Peru, Mexico, Russia, Australia, Morocco, Chile, UAE, Sri Lanka, Romania, Kazakhstan, Ukraine, Uzbekistan, Tajikistan | Port: | China Port |
Product Description

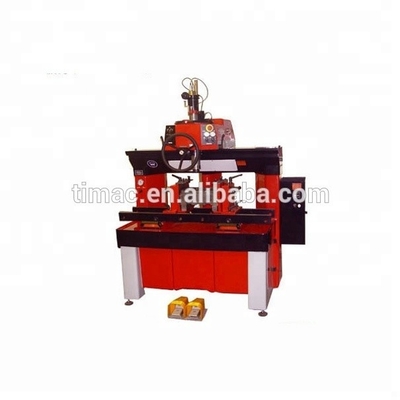

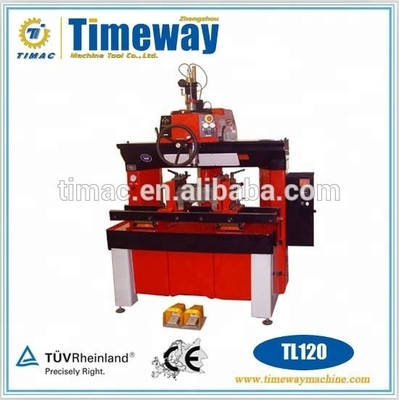

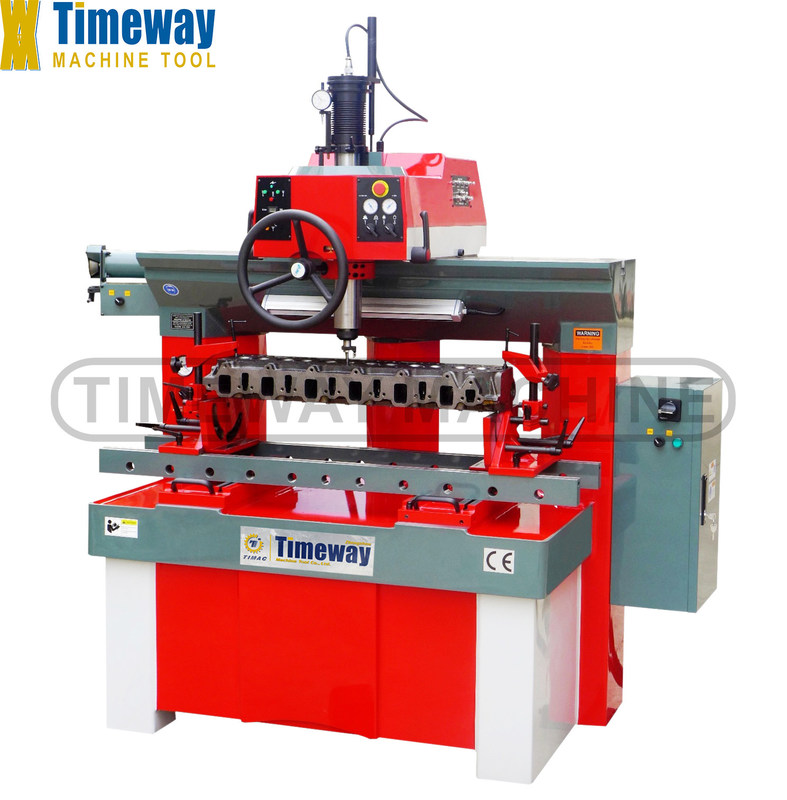

Valve Seat Boring Machine TL120
Features:
The TL120 POWER offers the patented new Triple Air-Float Automatic Centering system and its high torque and powerful motorspindle. Very accurate, all-purpose machine to cut valve seats and ream valve guides. Extremely versatile this machine will cut valve seats from the smallest to the biggest diameter. Thanks to its lightweight floating system. It will machine cylinder heads of any size from micro-engines up to big stationary engines.
Featuring a machine bed structure optimized by static and dynamic calculation, with a modern, modular and functional design, it can accommodate either the tilting fixture (+42deg to -15deg) or the hydraulic 360deg roll-over fixture with lateral up-and-down system.The TL120 Power has a benefit of air floating table bars. Thus adding faster setup time and effortless shifting of any size cylinder head. This feature decreases operator fatigue and increases productivity.
*Machining capacity .55"/16mm to725"/120mm.
*Fitted with the new tooling that decreases the cutting force by 30%, this machine will cut the hardest
seats.
*Patented lightweight workhead: built-in spindle motor and triple air-float automatic entering system.
Minimal workhead inertia and maximal floatation for unmatched centering sensitivity.
*Build-In spindle motor. Broad torque ratings from lowest RPM.
*Fully integrated spindle motor: Infinitely variable spindle speed, 0 to 1000r.p.m., with sensorless Vector Flux Control in open loop (extremely broad torque ratings from lowest r.p.m.). Digital spindle rotation read out.
Parameter:
| Specification | Unit | TL120 |
| Capacity |
| |
| Max.length of the cylinder head | mm/inch | Unlimite |
| Max.width of the cylinder head | mm/inch | 500/19.7 |
| Max.height of the cylinder head | mm/inch | 450/17.7 |
| Crosswise workpiece tilting | degree | +45º-15º |
| Max.horizontal travel of table | mm/inch | 160/4.3 |
| Dia.of machining capacity | mm/inch | 16/200/0.6-4.7 |
| Work head displacement |
| |
| Lengthwise | mm/inch | 990/39 |
| Crosswise | mm/inch | 40/1.6 |
| Sphere-cylinder travel | mm/inch | 9/0.4 |
| Spindle |
|
|
| Max.spindle incination | degree | 5 |
| Spindle travel | mm/inch | 200/8 |
| Power of the spindle | kw | 2.2 |
| Spindle rotation speed | rpm | 0-1000 |
| Alimentations |
| |
| Electric supply |
| 380v/50Hz 3Ph or |
| Air pressure | bar/psi | 6/87 |
| Max.air flow | 1/mm-CFM | 300/11 |
| Level of noise at 400RPM | dba | 72 |
| Level of noise at 1200RPM | dba | 82 |
| Net weight(approx.) | kg/1bs | 1500/3300 |
| Machine demension |
| |
| Length | mm/inch | 1750/68.9 |
| Width | mm/inch | 1150/45.3 |
| Height | mm/inch | 2200/86.6 |
Standard Accessories:
Tool holder, Bit holder, Carbide pilot, Carbide bit, Tool setting device, Sharpener, Air-floating fixture.
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
