TS60 Valve Seat Boring Machine for 45 mm Table Travel Z and Customizable Options
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
| Certification: | CE & ISO9001:2008 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $20,000.00/sets 1-2 sets |
| Packaging Details: | in wooden case (can be fumigated) or as your request |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Table Size (mm): | Other | Table Travel (X) (mm): | 900 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 45 Mm | Table Travel (Z) (mm): | 45 Mm |
| Number Of Axes: | 2 | Travel (W-axis) (mm): | 900 Mm |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Range Of Spindle Speed(r.p.m): | 1000 R.p.m |
| Spindle Motor Power(kW): | 1.8 | Type: | VERTICAL, Valve Seat Boring Machine TS60 |
| Condition: | New | CNC Or Not: | Normal |
| Production Capacity: | High | Voltage: | As Your Request |
| Dimension(L*W*H): | 1400*900*2000mm | Weight (T): | 0.6 T |
| Warranty: | 1 Year | Key Selling Points: | High Safety Level |
| Applicable Industries: | Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction Works , Energy & Mining | Showroom Location: | United States, Brazil, Mexico, Argentina, Sri Lanka, Kazakhstan, Uzbekistan, Australia |
| After-sales Service: | Engineers Available To Service Machinery Overseas | Color: | As Your Request |
| Main Motor Power: | 1.8 Kw | Table Size: | Other |
| X-axis Travel: | 900mm | Y-axis Travel: | 45mm |
| Z-axis Travel: | 45mm | Port: | China Port |
Product Description
Product Description

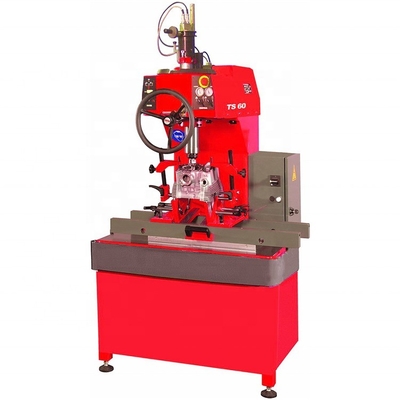

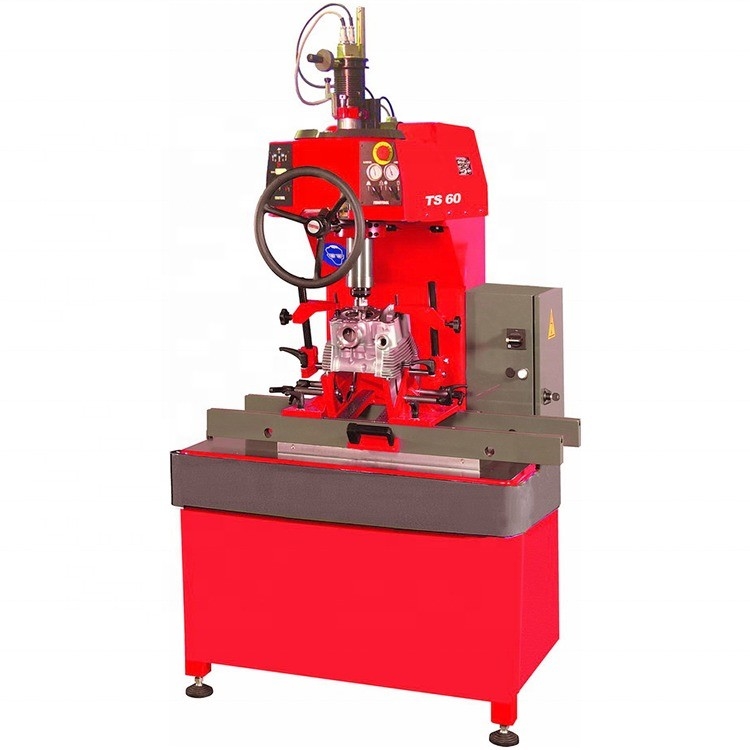

Valve Seat Boring Machine TS60
High precision valve seat and valve guide cutting machine especially designed for multi-valve cylinder heads. Patented workhead with triple air-float patented centering system and built-in spindle motor. TS60 is high precision machine featuring the latest technology incorporating air -float automatic centering and motorspindle. Air-floated table fixture can make the movement of workpiece more flexible. Especially developed for the repair of small motorcycle and automotive multivalve cylinder heads.
Features:
* Fitted with the new tooling that decreases the cutting force by 30%, this machine will cut the hardest seats.
* Machine bed structure optimized by static and dynamic calculation, with a functional design.
* Machining capacity from 0.551" / 14mm to 2.36" / 60mm.
* Fully integrated spindle motor: infinitely variable spindle speed,0 to 1000 r.p.m., with sensorless Vector
* Flux Control in open loop (Extremely broad torque ratings from lowest r.p.m.).
* Rigid, low-inertia workhead. Easy to use due to an automatic reset system.
* Air-floated table fixture with 400mm lengthwise and 40mm crosswise travel.
* Machine bed structure optimized by static and dynamic calculation, with a functional design.
* Machining capacity from 0.551" / 14mm to 2.36" / 60mm.
* Fully integrated spindle motor: infinitely variable spindle speed,0 to 1000 r.p.m., with sensorless Vector
* Flux Control in open loop (Extremely broad torque ratings from lowest r.p.m.).
* Rigid, low-inertia workhead. Easy to use due to an automatic reset system.
* Air-floated table fixture with 400mm lengthwise and 40mm crosswise travel.
Specification
Specification | Unit | TS60 |
Max.length of the cylinder head | mm/inch | 600/23.62 |
Max.width of the cylinder head | mm/inch | 400/15.75 |
Max.height of the cylinder head | mm/inch | 450/15.72 |
Crosswise tilting of workpiece | degree | +42 to -15 |
Machining dia.(min.-max.) | mm | 16-60 |
inch | 0.63-1.57 | |
Displacement of workhead | mm/inch | 8/0.32 |
Travel of worktable | ||
Lengthwise | mm/inch | 400/15.75 |
Crosswise | mm/inch | 8/3.15 |
Spindle | ||
Max.spindle inclination | degree | 5 |
Travel of spindle | mm/inch | 200/8 |
Power of spindle | kw | 1.8 |
Rotation speed of spindle | rpm | 0-1000 |
Power supply | 380V-AC-3Ph-50Hz / 220V-AC-3Ph-60Hz | |
Max.air supply | bar/psi | 6/87 |
Max.air flow | 1/min/CFM | 300/11 |
Level of noise at 4000RPM | dba | 72 |
Level of noise at 1200RPM | dba | 82 |
Net weight (approx.) | kg/1bs | 600/1320 |
Machine demension(L×W×H) | mm | 1400×900×2000 |

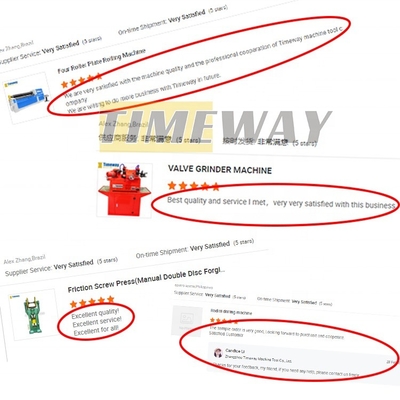

Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile

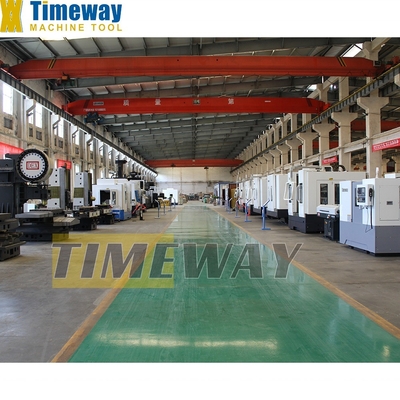

Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
