Table Travel Y mm 0 mm Engine Valve and Valve Seat Vacuum Tester ZJ45 for Performance
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Certification: | CE & ISO9001:2008 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,000.00/sets 2-5 sets |
| Packaging Details: | in wooden case (can be fumigated) or as your request |
| Supply Ability: | 500 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 0 Mm | Table Travel (Y) (mm): | 0 Mm |
|---|---|---|---|
| Table Travel (Z) (mm): | 0 Mm | Number Of Axes: | 2 |
| Travel (W-axis) (mm): | 0 Mm | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC |
| Range Of Spindle Speed(r.p.m): | 0 R.p.m | Type: | VERTICAL, Valve Grinding Machine TVG90 |
| Condition: | New | CNC Or Not: | Normal |
| Production Capacity: | High | Voltage: | 220V/110V |
| Dimension(L*W*H): | As Quantity | Weight (T): | 0.02 T |
| Warranty: | 1 Year | Key Selling Points: | High Safety Level |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Restaurant, Home Use, Retail, Printing Shops, Construction Works , Energy & Mining | Showroom Location: | Egypt, Italy, Peru, Russia, South Korea, Algeria, South Africa, Nigeria, Malaysia |
| After-sales Service: | Engineers Available To Service Machinery Overseas | Color: | As Your Request |
| Power(W): | 100 W | Weight: | As Order |
| Vacuum Level: | 900 Mbar | After-sales Service Provided: | Online Support, Video Technical Support |
| After Warranty Service: | Video Technical Support, Online Support | Local Service Location: | Egypt, Italy, Peru, Indonesia, Russia, Spain, Australia, Morocco, South Korea, Chile, Algeria, Sri Lanka, South Africa, Kazakhstan, Uzbekistan |
| Port: | China Port | ||
Product Description

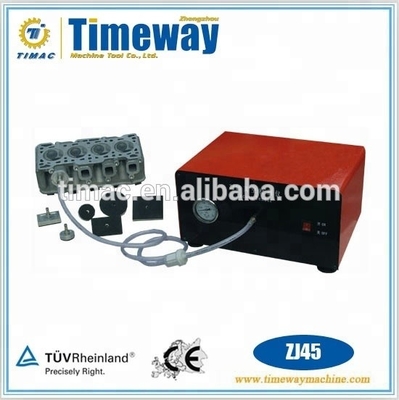

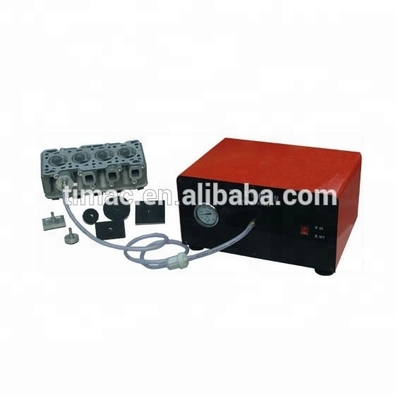

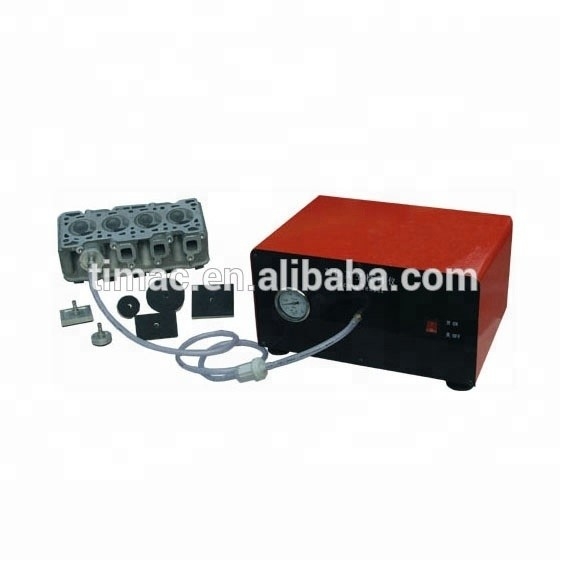

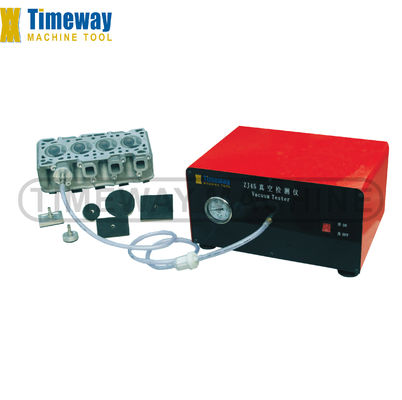

ZJ45 Vacuum Tester
Features:
ZJ45 Vacuum tester is a portable device for measuring the vacuum, which is mainly uesd to test the leakproofness of engine's valve and valve seat. It can be also applied to test other vacuum.The leakproofness of cone face of engine's valve and valve seat has a direct effect on the normal working of engine, and J45 can be used to measure and test. if the vacuum degree is below 600mbar, the valve and valve seat need to be repaired. When repaired, the valve machine can be used to repair the cone of valve, and the valve seat boring to bore the cone of valve seat. In order to judge if the valve and valve seat after being repaired can meet the needs , you can use this device to test .
Operation:
It is accoring to the size of cylinder head valve to choose the suitable suction cup. If you have bought our valve seat boring device, then there are all kinds of suction cup.Inset the suction cup's air pipe into the plug(tightly)which is among the vacuum tester. Open the left switch of the tester, and glue the suction cup on the corresponding inlet place. At this time, the vacuum gauge will display the value. If the value is over 600mbar (0.6kg), then its leakproofness is good. If there is on suction cup, you can buy it separately .
Matters need attention:
* Make sure the supply voltage is in accordance with the brand's voltage,in cse of the burning damage to the
motor.
* Keep the working enviroment clean and dry.
Parameter:
| pecification | ZJ45 |
| Power supply | 220V/1PH;110V/PH |
| Power | 100W |
| Output | 50Hz-36L/Min,60Hz-45L/Min |
| Vacuum level | 900mbar |
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
