290 KG Brake Drum Disc Lathe The Ultimate Solution for Other Automotive Repair
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Certification: | CE & ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $6,800.00/sets 3-4 sets |
| Packaging Details: | in wooden case (can be fumigated) or as your request |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 180 | Range Of Spindle Speed(r.p.m): | 70 - 118 R.p.m |
|---|---|---|---|
| Machining Capacity: | Light Duty | Type: | Other |
| Spindle Motor Power(kW): | 0.75 | Voltage: | As Customer's Request |
| Dimension(L*W*H): | 970*920*1140mm | Weight (KG): | 290 KG |
| Warranty: | 1 Year, 12 Months | Key Selling Points: | Energy Saving |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | Normal | Automatic Grade: | Semi-automatic |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Online Support | Color: | Customized |
| Brake Lathe: | Brake Drum Disc Lathe | Power: | Depends On Different Models |
| Weight: | 290 Kg | After Warranty Service: | Online Support |
| Local Service Location: | Italy, Peru, Russia, UAE, Romania | Condition: | New |
| Spindle Bore(mm): | 130 | Applicable Industries: | Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Restaurant, Construction Works , Energy & Mining |
| Showroom Location: | Germany, Brazil, Chile, Romania, Ukraine | Core Components: | Pump, Gear, Motor |
| Max. Turned Length (mm): | 300 Mm | Port: | China Port |
Product Description
Brake Drum Lathe / Brake Lathe
Product Description
Features:
1. Quickly, accurately and efficiently to cutting rotor.
2. Fast and slow setting allow cutting rotor.
3. Quickly, accurately and efficiently to cutting drum.
4. Finitely adjustably setting allow cutting drum.
5. Three kinds of speed 70,88,118 rpm to choose for spindle speed.
6. A convenient design allows to quickly change from rotor to drum, with cross feed extension plate will be increase
the maximum rotor diameter to 22’/588mm.
7. Position of stop make the lathe stop automatically after cutting.
8. Fully equipped with adapter package.
Parameter:

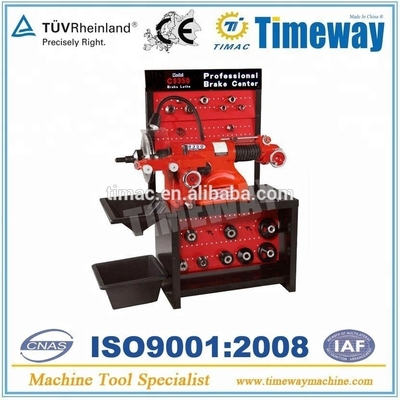

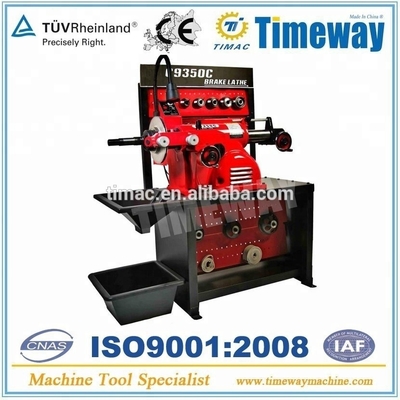

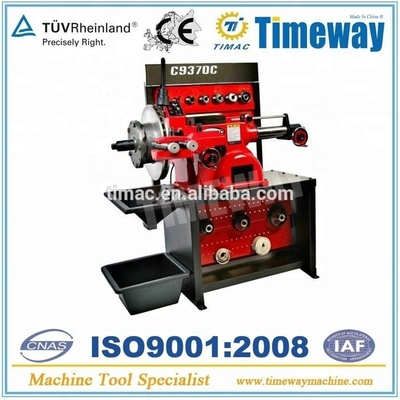

| Specification | C9350 | C9350C | C9370 | C9370C | C9372 |
| Spindle Travel | 6-7/8” (175mm) | 9.875" (251mm) | 9″/229mm | ||
| Spindle speed | 70,88,118 rpm | 70,88,118 rpm | 70-320RPM | ||
| Spindle feed speed | 0.002"-0.02" (0.05-0.5mm)Rev | 0.002"-0.02" (0.05-0.5mm)Rev | Rotor and drum feed rates 0-0.66mm | ||
| Cross feed speed | 0.002"-0.02" (0.05-0.5mm)Rev | 0.002"-0.01" (0.05-0.25mm)Rev | |||
| Handwheel graduations | 0.002"(0.05mm) | 0.002"(0.05mm) | |||
| Rotor diameter | 7" -15" (180mm-381mm) | 7" -18" (180mm-457mm) | 4″/102mm-24″/610mm | ||
| Rotor thickness | 1-7/8” (48mm) | 4" (102mm) | 2.85"/73mm | ||
| Drum diameter | 6" -28" (152mm-711mm) | 6" -28" (152mm-711mm) | 6″/152mm-28″/711mm | ||
| Drum depth | 6-7/8" (175mm) | 9.875" (251mm) | 9″/229mm | ||
| Motor | 110V/220V/380V,50/60HZ | 110V/220V/380V,50/60HZ | 110V/220V, 50/60HZ | ||
| Gross weight | 290 kg | 400 kg | 300kg | ||
| Dimension (L×W×H) | 970×920×1140mm | 1100mm ×1070mm×1140mm | 1130×720×750mm | ||
