1200 r.p.m Spindle Speed TX90 Valve Seat Boring Machine for Manufacturing Plant Made
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE & ISO9001:2008 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $16,670.00/sets 1-2 sets |
| Packaging Details: | in wooden case (can be fumigated) or as your request |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Table Size (mm): | Other | Table Travel (X) (mm): | 930 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 40 Mm | Table Travel (Z) (mm): | 930 Mm |
| Number Of Axes: | 2 | Travel (W-axis) (mm): | 40 Mm |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Range Of Spindle Speed(r.p.m): | 1200 R.p.m |
| Type: | VERTICAL, TX90 Valve Seat Boring Machine | Condition: | New |
| CNC Or Not: | Normal | Production Capacity: | High |
| Voltage: | As Your Request | Dimension(L*W*H): | 1440*1050*2170mm |
| Weight (T): | 1.1 T | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction Works , Energy & Mining |
| Showroom Location: | Egypt, Philippines, Brazil, Pakistan, India, Mexico, Argentina, South Korea, Sri Lanka | After-sales Service: | Engineers Available To Service Machinery Overseas |
| Color: | As Your Request | Power(W): | 2.2 Kw |
| Weight: | 1050 Kg | Product Name: | TX90 Valve Seat Boring Machine |
| After-sales Service Provided: | Video Technical Support | Name: | Boring Machine For Engine Rebulid |
| After Warranty Service: | Online Support | Port: | China Port |
Product Description

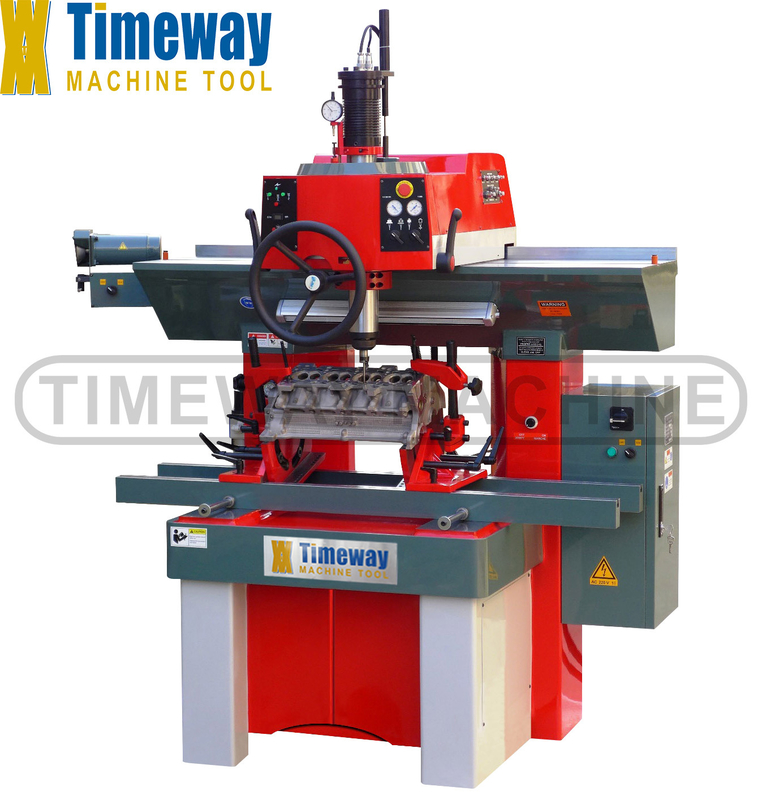

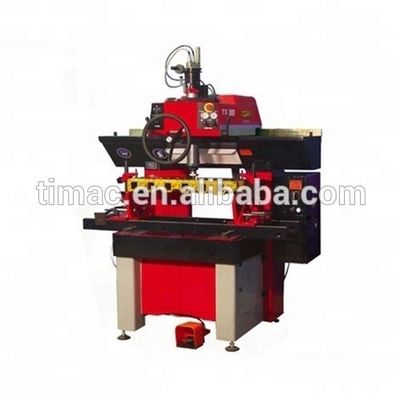

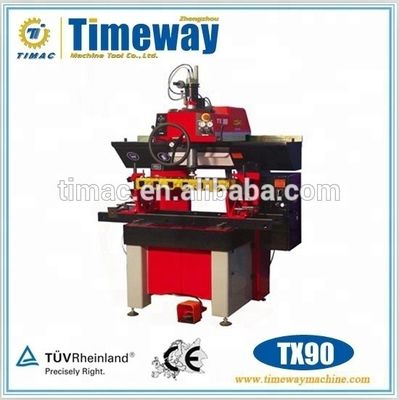

TX90 Valve Seat Boring Machine
Product Description
Features: 1.The machine has the features of the new generation valve seat boring machine, which can decrease cutting force by 30% during machining, making the accuracy of the multi-angle cutter's angle within ±0.5º. 2.Machining capacity:16mm/0.63"- 50mm/1.97" 3.The modernization standard bed is suitable for the improved rigidity. The features of dynamic and static is optimized by the computer to supply the most advanced machining technology. 4.Newly improved lighting system. 5.New worktable with pneumatic locking. 6.The integral motor spindle, controlled by vector frequency, with the two-way stepless spindle speed of 60-1200RPM.The extremely wide range of torque setting can realize spindle rotation setting under the conditions of the mixmum spindle speed. The digital readout display the speed , making sure the accurate speed setting. 7.The patented designed boring head is with air-floating three-way centring system and the integral motor spindle, which decrease the number of air-floating parts during centring. The min. inertia boring head, and the max. air-floating capacity ensure the machine's unbeatable sensitivity during centring. 8.High quality three-color saturation paint spraying
Specification | Unit | TX90 |
Max.length of the cylinder head | mm/inch | Unlimite |
Max.width of the cylinder head | mm/inch | 500/19.7 |
Max.height of the cylinder head | mm/inch | 450/17.7 |
Crosswise workpiece tilting | degree | +45º-15º |
Dia. of machining capacity (min.-max.) | mm/inch | 16-90/0.55-3.6 |
Lengthwise | mm/inch | 930/37 |
Crosswise | mm/inch | 40/1.6 |
Sphere-cylinder travel | mm/inch | 9/0.4 |
Max.spindle incination | degree | 5 |
Spindle travel | mm/inch | 200/8 |
Power of the spindle | kw | 2.2 |
Spindle rotation speed | rpm | 100-1200 |
Electric supply | 380v/50Hz 3Ph or 220v/60Hz/3Ph | |
Air pressure | bar/psi | 6/87 |
Max.air flow | 1/mm-CFM | 300/11 |
Level of noise at 400RPM | dba | 72 |
Level of noise at 1200RPM | dba | 82 |
Net weight(approx.) | kg/1bs | 1050/2310 |
Length | mm/inch | 1440/56.7 |
Width | mm/inch | 1050/41.3 |
Height | mm/inch | 2170/85.4 |
Standard Accessories:
Tool holder, Bit holder, Carbide pilot, Carbide bit, Tool setting device, sharpener,Clamping system
Optional Accessories:
TD -ER20SW spanner wrench, TD -ER20SC spring collet, T3200 Adaptor for morse, T3100 Precision chuck with MT2 shank, TENDTOOL REAMER RN Type,TD-ER20CN ER-32 clamping nut
