VERTICAL Valve Seat Boring Machine TQZ8560 with 600 mm Travel W-axis
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $19,999.00/sets 1-2 sets |
| Packaging Details: | wooden case / plywood case |
| Supply Ability: | 400 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 300 Mm | Table Travel (Y) (mm): | 500 Mm |
|---|---|---|---|
| Table Travel (Z) (mm): | 300 Mm | Number Of Axes: | 2 |
| Travel (W-axis) (mm): | 600 Mm | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Range Of Spindle Speed(r.p.m): | 1000 R.p.m | Type: | VERTICAL |
| Condition: | New | CNC Or Not: | Normal |
| Voltage: | 220V | Dimension(L*W*H): | 1600x1050x2170mm |
| Weight (T): | 1.1 T | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction Works , Energy & Mining |
| Showroom Location: | Philippines, Brazil, Pakistan, India, South Africa, Uzbekistan | After-sales Service: | Engineers Available To Service Machinery Overseas |
| Boring Machine: | Valve Seat Boring Machine | Power(W): | 0.4 Kw |
| Weight: | 1200 Kg | After-sales Service Provided: | Online Support, Video Technical Support |
| After Warranty Service: | Video Technical Support, Online Support | Local Service Location: | Egypt, Italy, Philippines, India, Thailand, Malaysia, Morocco, Argentina, Chile, Colombia, Sri Lanka, Bangladesh, Kazakhstan, Uzbekistan |
| Port: | China Port. | ||
Product Description

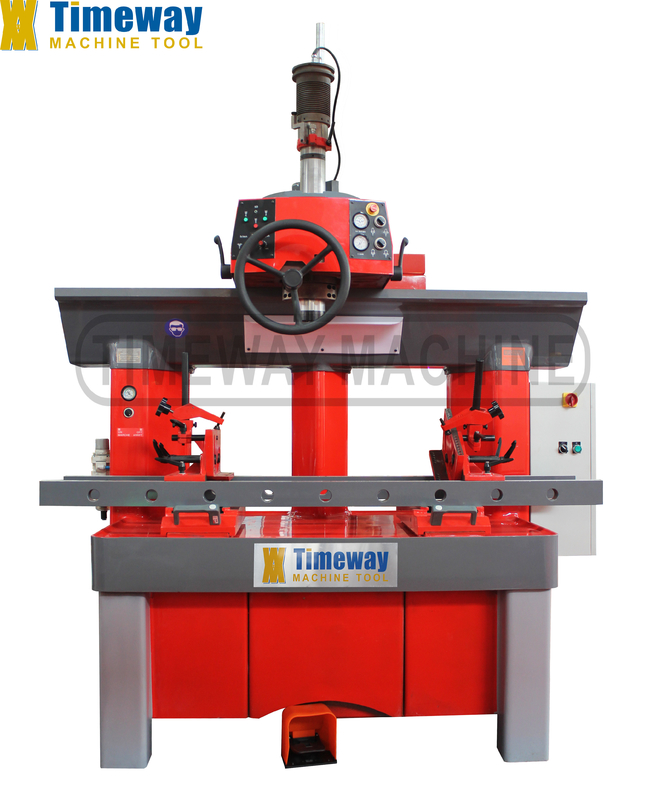

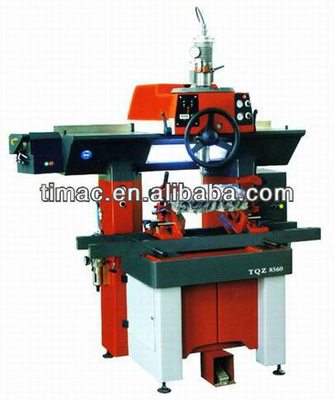

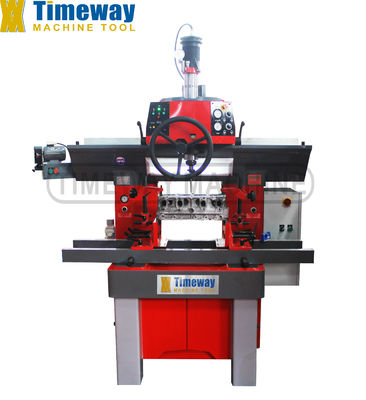

Valve Seat Boring Machine TQZ8560
| Specification | TQZ8560 |
| Spindle travel | 200 mm |
| Spindle speeds | 30~750/1000rpm |
| Boring range | Φ14~Φ60 mm |
| Spindle swing angle | 5° |
| Spindle cross travel | 950 mm |
| Spindle longitudinal travel | 35 mm |
| Ball seat move | 5 mm |
| Angle of clamping device swing | +50°; -45° |
| Spindle motor power | 0.4KW |
| Air supply | 0.6~0.7Mpa; 300L/min |
| Max. size of cylinder cap for repairing | 1200x500x300mm |
| Machine weight | 1050/1200kg |
| Overall dimension | 1600x1050x2170mm |
Features:
*Model TQZ8560 valve seat boring machine is suitable for repairing the valve seat of automobiles, motorcycle, tractor and other engines. It also can be used to drilling and boring etc.
*The machine features are airfloating, vacuum clamping, high positing precision, easy operation. *The machine is set with grinder for cutter and vacuum check device for workpiece.
1. Moden technic, new design;
2. Air floating, air vacuum clamping, auto-centering, high, positing precision;
3. Straight and V valve seats;
4. 30°, 45°, 60°and multy-angle cutter;
5. Central operation, quick clamping;
6. Spindle frequency coverter, unstep speeds;
7. High quality surface, different clour paint;
