820mm X-axis Travel Manual Valve Seat Boring Machine T8590A T8590B for Precise Boring
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
| Certification: | CE,ISO Standard |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $19,999.00/sets 1-2 sets |
| Packaging Details: | wooden case |
| Supply Ability: | 400 Set/Sets per Month |
|
Detail Information |
|||
| Table Size (mm): | Other | Table Travel (X) (mm): | 860 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 120 Mm | Table Travel (Z) (mm): | 18 Mm |
| Number Of Axes: | 2 | Max. Table Load(kg): | 375 |
| Travel (W-axis) (mm): | 512 Mm | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Range Of Spindle Speed(r.p.m): | 550 R.p.m | Type: | VERTICAL |
| Condition: | New | CNC Or Not: | Normal |
| Voltage: | 220/380V | Dimension(L*W*H): | 1300x800x1930mm |
| Weight (T): | 1.2 T | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction Works , Energy & Mining |
| Showroom Location: | Philippines, Pakistan, Morocco, UAE, Colombia, South Africa, Kazakhstan, Tajikistan, Japan | Table Size: | Other |
| Product Name: | Valve Seat Boring Machine | X-axis Travel: | 820mm |
| Y-axis Travel: | 160mm | Z-axis Travel: | 18mm |
| Product Type: | Manual | Name: | Boring Machine |
| Keyword: | Boring Machines | Machine Type: | Boring Machine |
| Port: | China Port. | ||
Product Description
Product Description

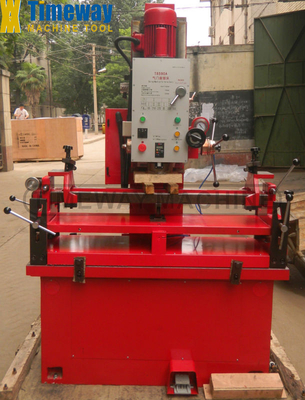

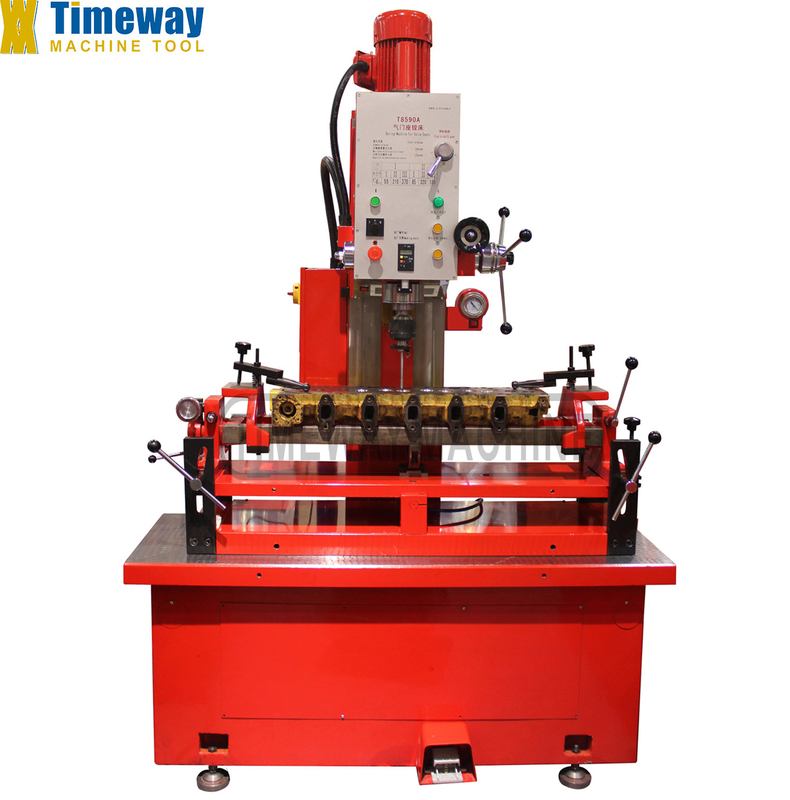

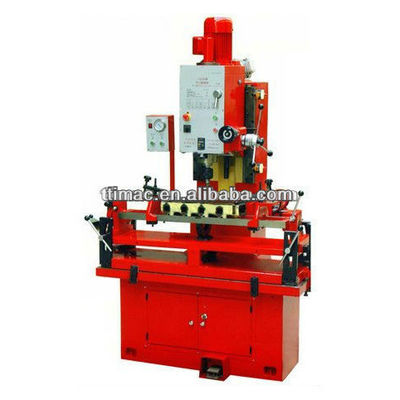

Valve Seat Boring Machine T8590A T8590B
Feature：
1. The machine tool suits the needs of various cylinder cover for every engine.
2. It can manufacture the gas valve seats hole for cylinder cover with various angles.
3. When equipped with boring-drilling tools, it can bore, drill, ream the pipe seats hole for gas valve or repair it.
4. It's adopted floating worktable and adjustable special clamps, easy operation and high precision.
5. It can be widely used with many knives and Positioning Mandrel.
6. Equipped with vacuum test equipment, It’s rapid-checking and non-pollution.
7. Equipped with cutter grinder, it has long use life and cost-saving.
2. It can manufacture the gas valve seats hole for cylinder cover with various angles.
3. When equipped with boring-drilling tools, it can bore, drill, ream the pipe seats hole for gas valve or repair it.
4. It's adopted floating worktable and adjustable special clamps, easy operation and high precision.
5. It can be widely used with many knives and Positioning Mandrel.
6. Equipped with vacuum test equipment, It’s rapid-checking and non-pollution.
7. Equipped with cutter grinder, it has long use life and cost-saving.
Specification
Specification | T8590A | T8590B | |||
Boring dia. | φ20mm-φ90mm | ||||
Spindle speed range | 55,85,210,320,370,550rpm | 30-550(stepless) | |||
Distance from spindle axis to guideway surface | 270mm | ||||
Max. distance from end ofspindle to working table | 750mm | ||||
Moving speed of machine head | 512mm/min | ||||
Moving range of machine head | Cross | 120mm | |||
Longitudinally | 860mm | ||||
Overall dimension(LxWxH) | 1300x800x1930mm | ||||
Packing dimension(LxWxH) | 1700x1100x2000mm | ||||
