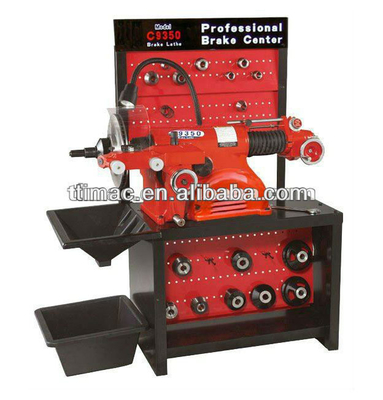

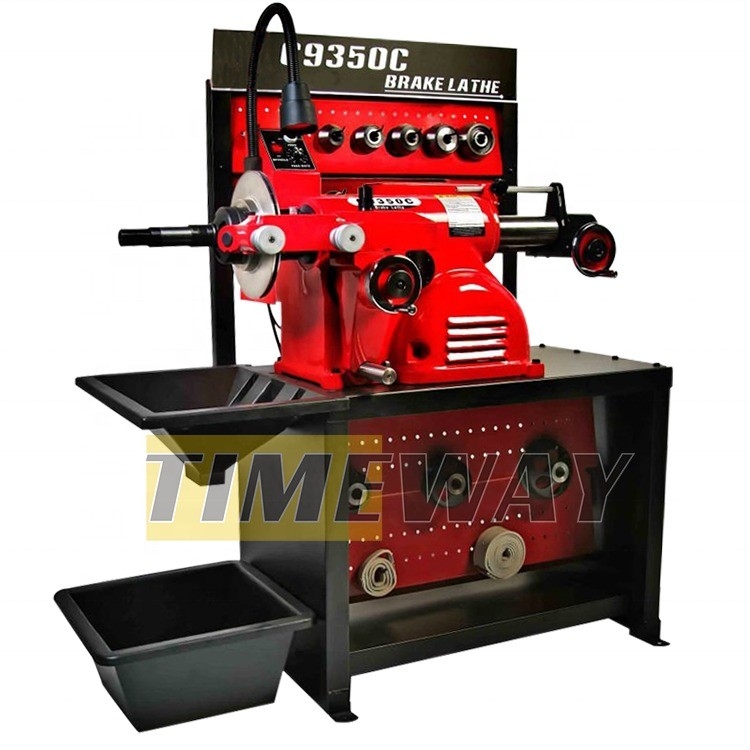

Construction Works Brake Lathe Machine C9350 C9350C for Disc and Drum Refurbishment
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $7,000.00/sets >=1 sets |
| Packaging Details: | wooden case, plywood case |
| Supply Ability: | 400 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Weight (KG): | 325 | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction Works , Energy & Mining |
| Showroom Location: | Egypt, Italy, Brazil, Mexico, Kenya, Argentina, South Korea | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Brake Drum Lathe: | Brake Drum Disc Lathe | Product Name: | Brake Lathe C9350 |
| Name: | C9350 Brake Lathe | Key Word: | C9350c |
| Color: | Customer Choose | Key Selling Point: | Competitive Price |
| Machine Type: | Brake Lathe Machine | Type: | Brake Disc Lathe |
| Model: | C9350C | Port: | China Port. |
Product Description
Product Description
brake drum lathe machine
Specification
Specification | C9350 | C9350C | C9370 | C9370C | C9372 | ||
Spindle travel | 6-7/8″/175mm | 9.875″/251mm | 9″/229mm | ||||
Spindle speed | 70,88,118RPM | 70,88,118 RPM | 70-320RPM | ||||
Spindle feed speed | 0.002″/0.05mm-0.02″/0.5mm Rev | 0.002″/0.05mm-0.02″/0.5mm Rev | Rotor and drum feed rates 0-0.66mm | ||||
Cross feed speed | 0.002″/0.05mm-0.02″/0.5mm Rev | 0.002″/0.05mm-0.01″/0.25mm Rev | |||||
Handwheel graduations | 0.002″/0.05mm | 0.002″/0.05mm | |||||
Rotor diameter | 7″/180mm-15″/381mm | 7″/180mm-18″/457mm | 4″/102mm-24″/610mm | ||||
Rotor thickness | 1-7/8″/48mm | 4″/102mm | 2.85"/73mm | ||||
Drum diameter | 6″/152mm-28″/711mm | 6″/152mm-28″/711mm | 6″/152mm-28″/711mm | ||||
Drum depth | 6-7/8″/175mm | 9.875″/251mm | 9″/229mm | ||||
Motor | 1P/220V/50HZ ,1P/110V/60HZ,3P/380V/50HZ | 1P/220V/50HZ ,1P/110V/60HZ,3P/380V/50HZ | 110V/220V, 50/60HZ | ||||
Gross weight | 290kg | 400kg | 300kg | ||||
Dimension (L×W×H) | 970×920×1140mm | 1100×1070×1140mm | 1130×720×750mm | ||||
Features:
1. Quickly, accurately and efficiently to cutting rotor.
2. Fast and slow setting allow cutting rotor.
3. Quickly, accurately and efficiently to cutting drum.
4. Finitely adjustably setting allow cutting drum.
5. Three kinds of speed 70,88,118 rpm to choose for spindle speed.
6. A convenient design allows to quickly change from rotor to drum, with cross feed extension plate will be increase the maximum rotor diameter to 22’/588mm.
7. Position of stop make the lathe stop automatically after cutting.
8. Fully equipped with adapter package.
2. Fast and slow setting allow cutting rotor.
3. Quickly, accurately and efficiently to cutting drum.
4. Finitely adjustably setting allow cutting drum.
5. Three kinds of speed 70,88,118 rpm to choose for spindle speed.
6. A convenient design allows to quickly change from rotor to drum, with cross feed extension plate will be increase the maximum rotor diameter to 22’/588mm.
7. Position of stop make the lathe stop automatically after cutting.
8. Fully equipped with adapter package.
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
