Manual Grade Vertical Fine Boring-milling Machine TX170A/TX200A/TX250A 3.8KG Weight
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,000.00/sets >=1 sets |
| Packaging Details: | wooden case. |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2019 |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Weight (KG): | 3.8 | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops |
| Showroom Location: | Canada, United Kingdom, United States, Germany | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Automatic Grade: | Manual | CNC Or Not: | Normal |
| Machine Tool Equipment: | Vertical Fine Boring Milling Machine | Port: | China Port. |
Product Description
Products Description

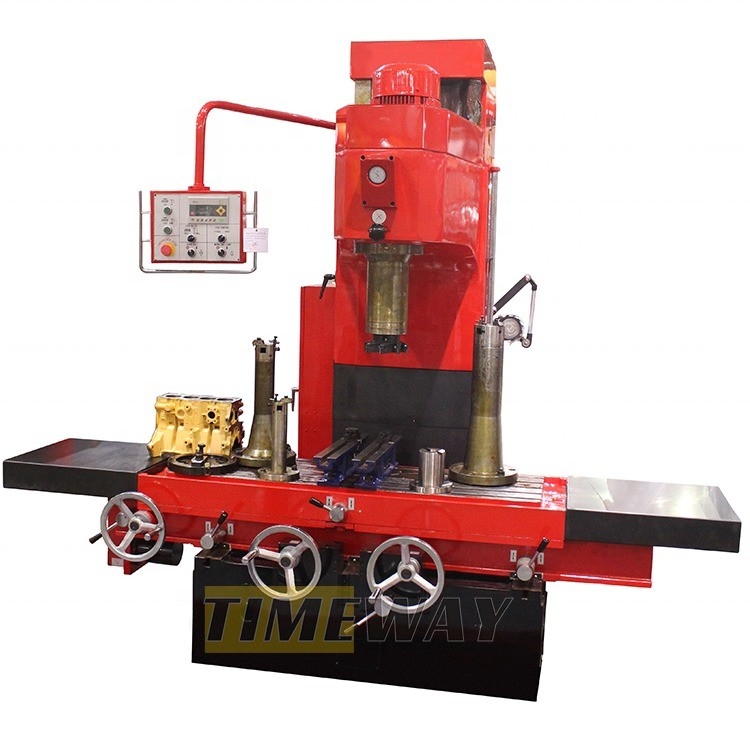

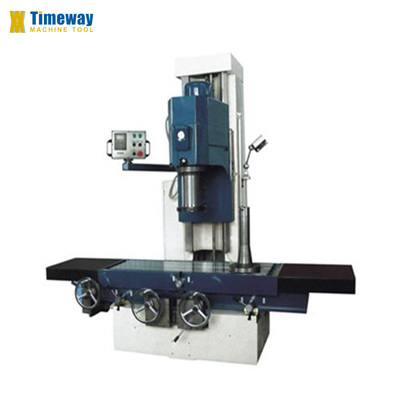

Vertical Fine Boring-milling Machine
This serial model of Vertical Boring Milling Machine can be widely used in boring automobile engine cylinders, cylinder sleeves of diesel engines and compressors, as well as various high precision holes boring, surface milling of other workpieces.
Product Paramenters
Specification | TX170A | TX200A | TX250A | ||||
Max. boring diameter | Φ170 mm | Φ200 mm | Φ250 mm | ||||
Max. boring depth | 400 mm | 500 mm | 500 mm | ||||
Max. milling area | 400x1000 mm | ||||||
Max. drilling & reaming diameter | Φ30 mm | ||||||
Spindle speed | 120-860 r/min | ||||||
Feeding of the spindle | 14-900 mm/min | ||||||
Rapid moving speed of the spindle | 1000 mm/min | ||||||
Spindle travel | 700 mm | ||||||
Distance between spindle end face and table | 0-700 mm | ||||||
Distance between spindle axis and carriage vertical plane | 375 mm | ||||||
Feed of work table longitudinal | 32-1350 mm/min | ||||||
Rapid moving speed of the table longitudinal travel | 32-1350 mm/min | ||||||
Max longitudinal travel of working table | 1500 mm | ||||||
Max cross travel of the working table | 200 mm | ||||||
Working table size (W×L) | 500×1250 mm | 500×1500 mm | |||||
Main motor | 5.5 Kw | ||||||
Processing roughness | Boring | Ra 2.5 | |||||
Milling | Ra 3.2 | ||||||
Overall dimensions (L×W×H) | 2600×1630×2300 mm | ||||||
Packing dimensions (L×W×H) | 2250×1900×2280 mm | ||||||
N.W./G.W. | 3300/3600 kg | 3500/3800 kg | |||||
