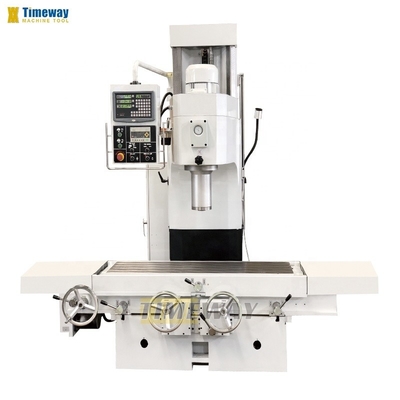

400 mm Vertical Cylinder Fine Boring Machine with Positioning Accuracy Z axis mm 0.05
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY TIMAC |
| Certification: | CE, ISO Standard |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $18,000.00/sets 1-4 sets |
| Packaging Details: | In plywood case. |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Table Size (mm): | 400x1250 | Table Travel (X) (mm): | 1100 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 80 Mm | Table Travel (Z) (mm): | 500 Mm |
| Number Of Axes: | 2 | Travel (W-axis) (mm): | 590 Mm |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Motor | Positioning Accuracy (X Axis) Mm: | 0.05 |
| Positioning Accuracy (Y Axis) Mm: | 0.05 | Positioning Accuracy (Z Axis) Mm: | 0.05 |
| No. Of Spindles: | Single | Range Of Spindle Speed(r.p.m): | 860 R.p.m |
| Spindle Motor Power(kW): | 3 | Type: | VERTICAL |
| Condition: | New | CNC Or Not: | Normal, Normal |
| Voltage: | 220V/380V/400V | Dimension(L*W*H): | 2100x1430x2010 Mm |
| Weight (T): | 2.5 T | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Other |
| Showroom Location: | Egypt, Canada, Philippines, Brazil, Indonesia, Thailand, South Africa, Malaysia, Australia | Automatic Grade: | Manual |
| After-sales Service Provided: | Video Technical Support | Machine Tool Equipment: | Vertical Fine Boring Machine |
| Max. Swing Diameter: | 170mm | Power Type: | 3 Kw Servo Motor |
| Spindle Speed: | 80-860 R/min | Processing Capacity: | Medium |
| Max Boring Depth: | 400 Mm | Port: | China Port. |
Product Description
Products Description

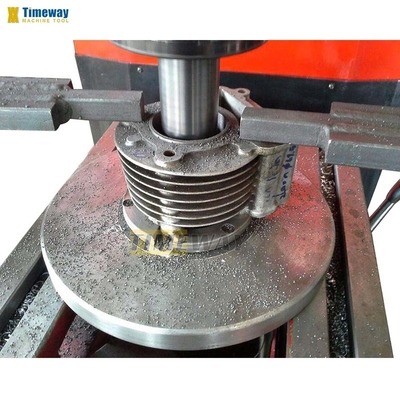

The machine can be widely used in boring automobile engine cylinders, cylinder sleeves of diesel engines and compressors, as well as various high precision holes boring.
Specification | T170S |
Max. boring diameter | Φ170 mm |
Max. boring depth | 400 mm |
Max. drilling & reaming diameter | Φ30 mm |
Spindle speed | 80-860 r/min |
Feeding of the spindle | 14-810 mm/min |
Rapid moving speed of the spindle | 810 mm |
Spindle travel | 590 mm |
Distance between spindle end face and table | 0-500 mm |
Distance between spindle axis and carriage vertical plane | 330 mm |
Max. longitudinal travel of working table | 1100 mm |
Max. cross travel of the working table | 80 mm |
Working table size (W×L) | 400×1250 mm |
Quantity of “T” Slot | 3 qua. |
Main motor | 3 Kw |
Dimension Precision | H7 |
Boring roughness | Ra 2.5 |
Overall dimensions (L×W×H) | 2100×1430×2010 mm |
Packing dimensions (L×W×H) | 1820×1770×2190 mm |
N.W./G.W. | 2500/2800 kg |
