High Precision T8445 Brake Drum Lathe/Disc Cutting Machine for Machinery Repair Shops
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,000.00/sets >=1 sets |
| Packaging Details: | In plywood case. |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Warranty: | 1year | Key Selling Points: | High Precision |
| Weight (KG): | 320 | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining |
| Showroom Location: | Egypt, Italy, Pakistan, Morocco, Colombia, Kazakhstan, Uzbekistan | Product Name: | Brake Drum Lathe |
| Style: | Fashion | Brand: | TIMAC |
| Name: | Brake Drum Lathe | Machine Type: | Disc Cutting Machine |
| Key Word: | T8445 Brake Drum Lathe Machine | Type: | Metal Cutting Disc Machine |
| Color: | Customer Choose | Key Selling Point: | Competitive Price |
| After-sales Service Provided: | Online Support | Port: | China Port. |
Product Description
Product Description

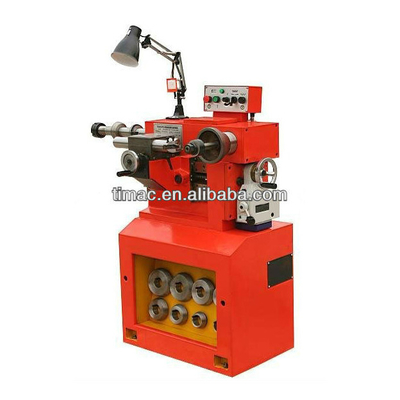

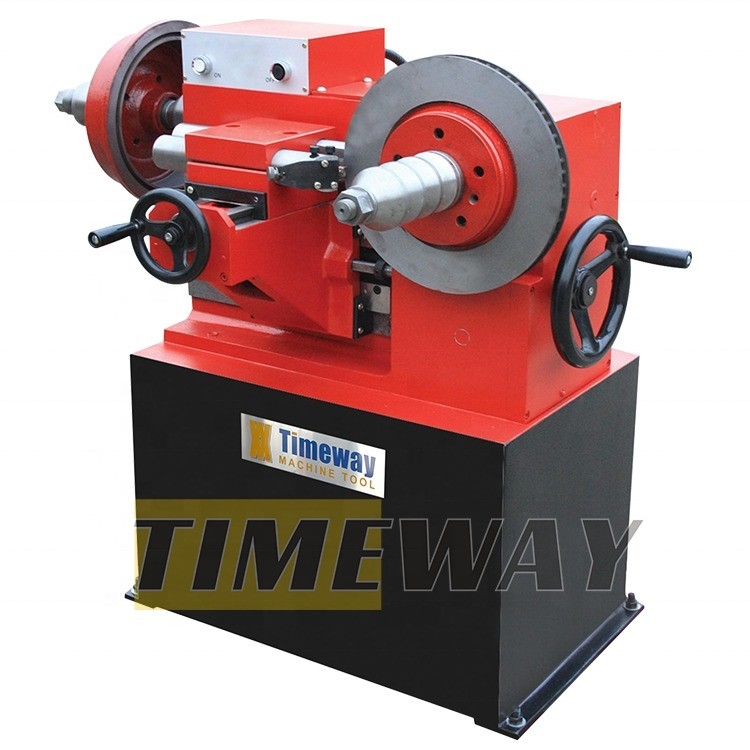

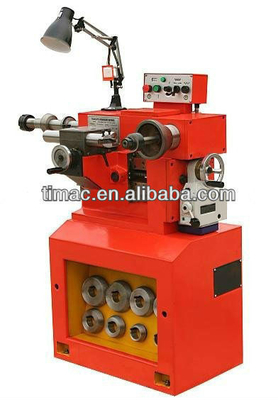

Brake Drum Lathe/Disc Cutting Machine
Feature：
*The brake drum lathe is a kind of infinitely variable speed lathe.
*It can fulfill the repairation of the brake drum disc and shoe of auto-mobiles from mini-car to medium heavy trucks.
*The unusual feature of this equipment is its Twin-Spindle each other perpendicular structure.
*The brake drum/shoe can be cut on the first spindle and the brake disc can be cut on the second spindle.
*This brake drum lathe has higher rigidity, accurate workpiece positioning and is easy to operate.
*It can fulfill the repairation of the brake drum disc and shoe of auto-mobiles from mini-car to medium heavy trucks.
*The unusual feature of this equipment is its Twin-Spindle each other perpendicular structure.
*The brake drum/shoe can be cut on the first spindle and the brake disc can be cut on the second spindle.
*This brake drum lathe has higher rigidity, accurate workpiece positioning and is easy to operate.
Specification
Specification | Unit | T8445(FCV) | ||
Drum dia Capacity | mm | 180-450 | ||
Disc dia Capacity | mm | ≤400 | ||
Spindle speed (three grades) | r/min | 30, 50, 85 | ||
Toolpost Travel | mm | 170 | ||
Feed Rate | mm/r | 0-0.5 | ||
Motor | kw | 1.1/1400 | ||
Power Requirement | 380V/ 50HZ/ 3phases/ 3A | |||
Dimension:not incluble crane and outboard supporter | ||||
Length | mm | 820 | ||
Width | mm | 1080 | ||
Height | mm | 1280 | ||
Net Weight | kg | 320 | ||
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
