TD60 VERTICAL Gas Valve Seat Boring Machine The Ultimate Solution for Machining Needs
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $13,000.00/sets 1-2 sets |
| Packaging Details: | wooden case. |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Table Size (mm): | Other | Table Travel (X) (mm): | 950 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 500 Mm | Table Travel (Z) (mm): | 35 Mm |
| Number Of Axes: | 2 | Travel (W-axis) (mm): | 1200 Mm |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Bearing, Motor | Range Of Spindle Speed(r.p.m): | 1000 R.p.m |
| Spindle Motor Power(kW): | 0.4 | Type: | VERTICAL |
| Condition: | New | CNC Or Not: | Normal |
| Production Capacity: | 20-1000rpm | Voltage: | As Request |
| Weight (T): | 600 T | Warranty: | 1 Year |
| Key Selling Points: | Energy Saving | Applicable Industries: | Garment Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works |
| Showroom Location: | Italy, Peru, Russia, South Africa | Machine Tool: | Gas Valve Seat Boring Machine |
| Power: | 0.4kw | After-sales Service Provided: | Online Support |
| After Warranty Service: | Online Support | Local Service Location: | Russia |
| Port: | China Port. | ||
Product Description
Product Description

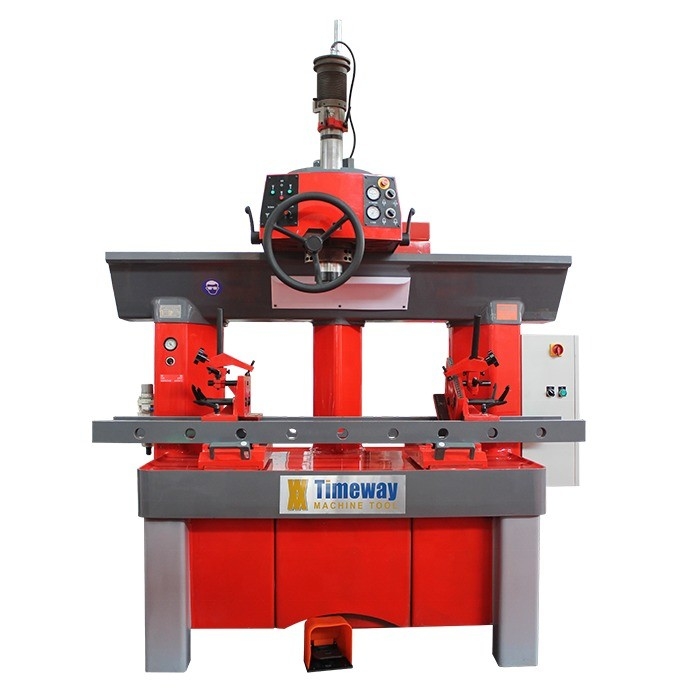

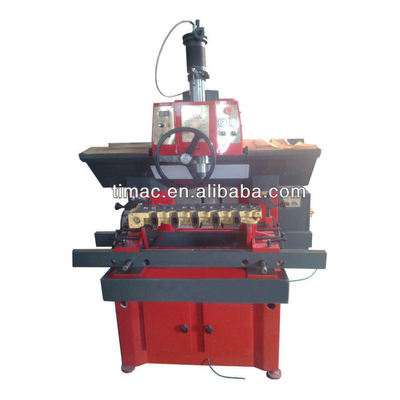

valve seat boring machine
feature
* This machine is suitable for repairing the valve seat of automobiles, motorcycle, tractor and other engines. * It also can be used to drilling and boring etc. * The machine features are air floating, vacuum clamping, high positing precision, easy operation.
Specification
Specification | TD60 |
Max. travel of principal axis sleeve | 200mm |
Spindle speeds | 20-1000rpm |
Boring rang | Φ20-Φ60mm |
Spindle swing angle | 5° |
Spindle cross travel | 950mm |
Spindle longitudinal travel | 35mm |
Ball seat move | 5mm |
Angle of clamping device swing | +50°:-45° |
Spindle motor power | 0.4kw |
Air supply | 0.6-0.7Mpa;300L/min |
Max. Size of cylinder cap for repairing | 1200/500/300mm(L/W/H) |

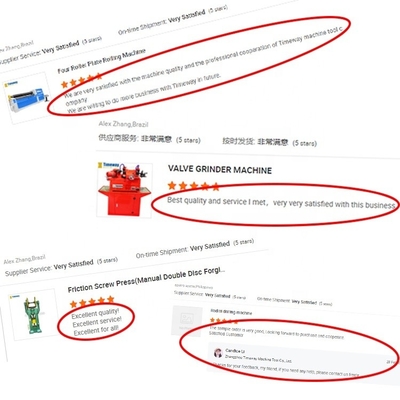

Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile

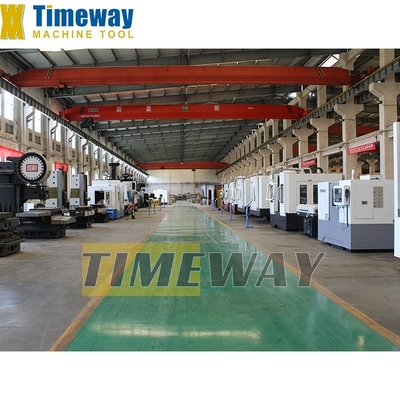

Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
