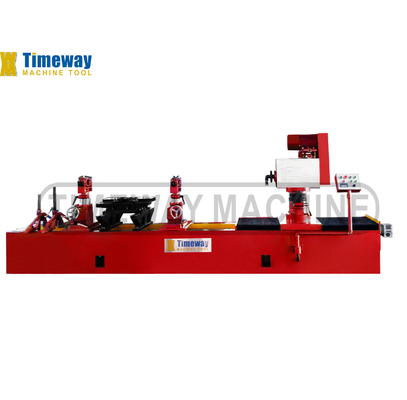

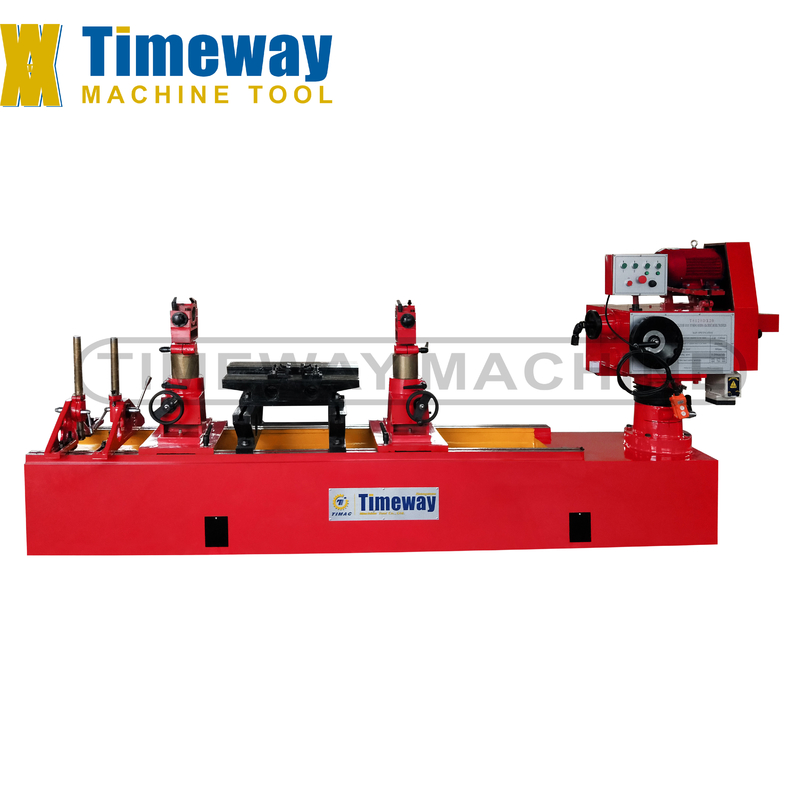

Revolutionize Your Construction Works with Con-Rod Boring and Grinding Machine T8120E
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE, ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $4,120.00/sets 2-3 sets |
| Packaging Details: | wooden case. |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Universal | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Year: | 2020 |
| Voltage: | As Request | Dimension(L*W*H): | 1700x1300x1800mm |
| Weight (KG): | 2100 | Power (kW): | 1.5 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Showroom Location: | India, Thailand, Tajikistan, Uzbekistan, Ukraine, Algeria, Indonesia, Germany | Applicable Industries: | Farms, Manufacturing Plant, Construction Works , Energy & Mining, Retail, Machinery Repair Shops, Building Material Shops |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Bearing, Engine, Gear, Pressure Vessel, Gearbox, PLC, Pump | After-sales Service: | Engineers Available To Service Machinery Overseas |
| Machine Tool: | Machinery & Industry Equipment | Brand: | TIMAC |
| After-sales Service Provided: | Online Support, Video Technical Support | After Warranty Service: | Video Technical Support |
| Local Service Location: | Philippines, South Korea, Pakistan, Mexico, Chile, Morocco, Nigeria, Spain, Thailand, Kazakhstan, Canada, Russia, Peru | Port: | China Port. |
Product Description
| Model | Unit | T8120Ex20 | T8125Ex25 |
| Diameter of boring hole | mm | 36-200 | 22-250 |
| Max.length of cylinder sleeve | mm | 2000 | 2500 |
| Max.extending length of spindle | mm | 300 | 300 |
| Spindle speed | rpm | 200-960 (stepless) | 200-960 (stepless) |
| Spindle feed speed | - | 0-180 (stepless) | 0-180 (stepless) |
| Distance between spindle axis to worktable | mm | 570-870 | 570-870 |
| Main Motor power | kw | 1.5 | 1.5 |
| Overall Dimension (LxWxH) | mm | 3910x650x1410 | 4410x650x1410 |
| Net weight | kg | 2100 | 2200 |
| Gross weight | kg | 2300 | 2400 |
Features:
1. This machine is mainly applied to bore and grind bearing holes (including copper quill and connecting-rod tile)on connecting-rod of gasoline and diesel engine in automobile,tractor and other power sources.
2. Customer also can carry out fine boring or grinding process to connecting-rod bearing seat of deformed workpiece, after grinding combining surface, to ecsure the parallism of tow center lines.
3. Equipped with various specialiged fixture, TM8216 can be used to complete fine boring and grinding process to piston pin hole, gas pump bearing hole and valve seat hole etc.
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
