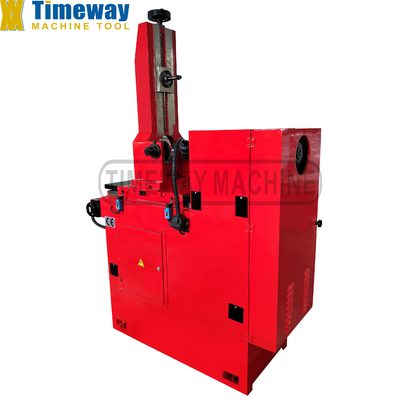

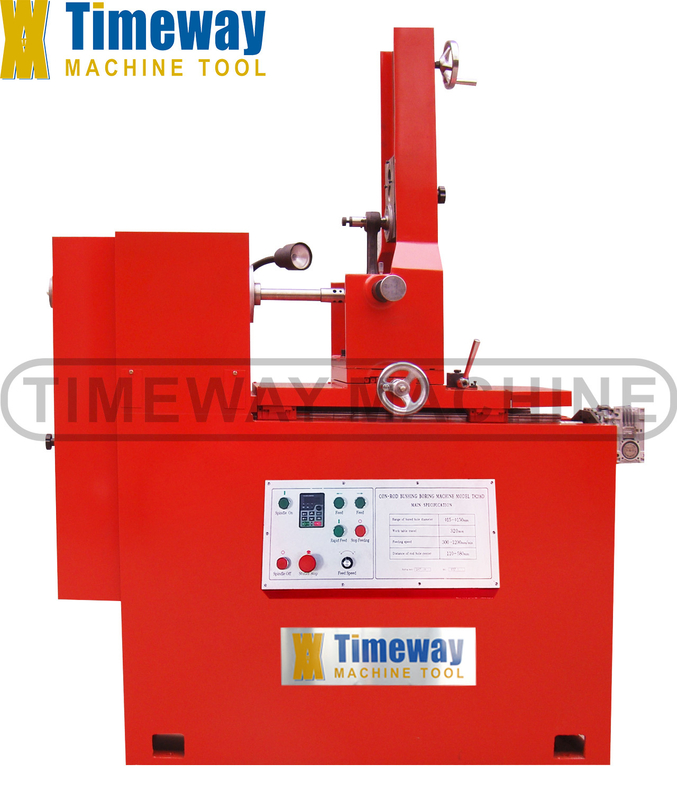

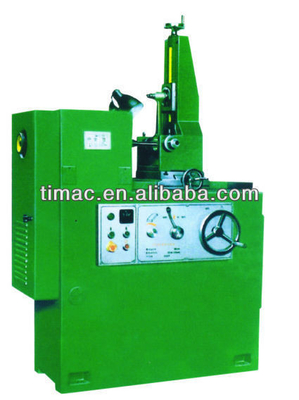

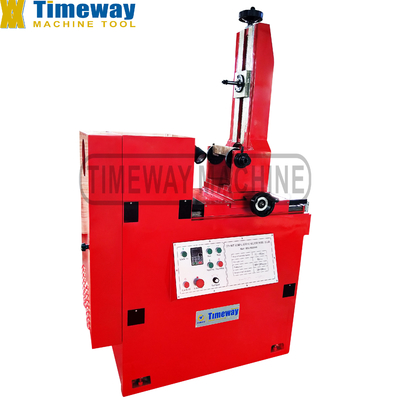

T8210D/T8216 Con-rod Bushing Boring Machine 100 mm Table Travel 1180 r.p.m Spindle Speed
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
| Certification: | ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $10,000.00/sets 1-2 sets |
| Packaging Details: | wooden case. |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Table Size (mm): | Other | Table Travel (X) (mm): | 100 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 425 Mm | Table Travel (Z) (mm): | 0 Mm |
| Number Of Axes: | 2 | Max. Table Load(kg): | Other |
| Travel (W-axis) (mm): | 0 Mm | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Range Of Spindle Speed(r.p.m): | 1180 R.p.m | Type: | VERTICAL |
| Condition: | New | CNC Or Not: | Normal |
| Voltage: | 220/380v | Dimension(L*W*H): | 1150*600*1450 |
| Weight (T): | 0.8 T | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining |
| Showroom Location: | France, Germany, India, Thailand, Chile | Product Name: | Con-rod Boring Machine |
| Brand: | TIMAC | Style: | Fashion |
| Cross Adjusting Stroke Of Fixture: | 80 Mm | Diameter Range Of Boring Hole: | 16-100 Mm |
| Centre Distance Of Link Two Hole: | 100-425 Mm | Longitudinal Travel Of Worktable: | 220 Mm |
| Transverse Adjusting Amount Of Fixture: | 80 Mm | After-sales Service Provided: | Online Support |
| Port: | China Port. | ||
Product Description
| Specification | T8210D | T8216 |
| Diameter range of boring hole | 16-100 mm | 15-150 mm |
| Centre distance of link two hole | 100-425 mm | 85-600 mm |
| Longitudinal travel of worktable | 220 mm | 320 m |
| Spindle speed | 350, 530, 780, 1180 rpm | 140, 215, 355, 550, 785, 1200 rpm |
| Transverse adjusting amount of fixture | 80 mm | 80 mm |
| Feeding speed of worktable | 16-250 mm/min | 16-250 mm/min |
| Traveling speed of working | 1800 mm/min | 1800 mm/min |
| Diameter of boring bar (4 class) | 14, 16, 24, 40 mm | 14, 29, 38, 59 mm |
| Main motor power | 0.65/0.85 Kw | 0.85/1.1 Kw |
| Motor power of oil pump | 0.55 Kw | 0.55 Kw |
| Overall dimensions(L×W×H) | 1150×570×1710 mm | 1300×860×1760 mm |
| Packing dimensions(L×W×H) | 1700×950×1450 mm | 1850×1100×1700 mm |
| N.W/G.W | 700/900 kg | 900/1100 kg |
Features:
1. Con-rod boring machine has good performance, better structure, easy operation and high accuracy and can meet customer’s demand.
2. The machine is mainly used in boring rod bushing hole (rod bushing and copper bush) of diesel and gasoline engine of automobiles and tractors.
3. In case of necessity, rod bushing seat hole can be fine-bored.
4. The rough and fine boring processing for the holes on other parts can be also completed after changing the corresponding clamps.
5. Besides, it has the accessories for centering sectifying tools, boring tools and micro-adjustment tools holder etc.
