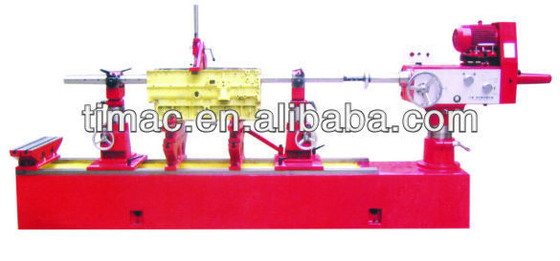

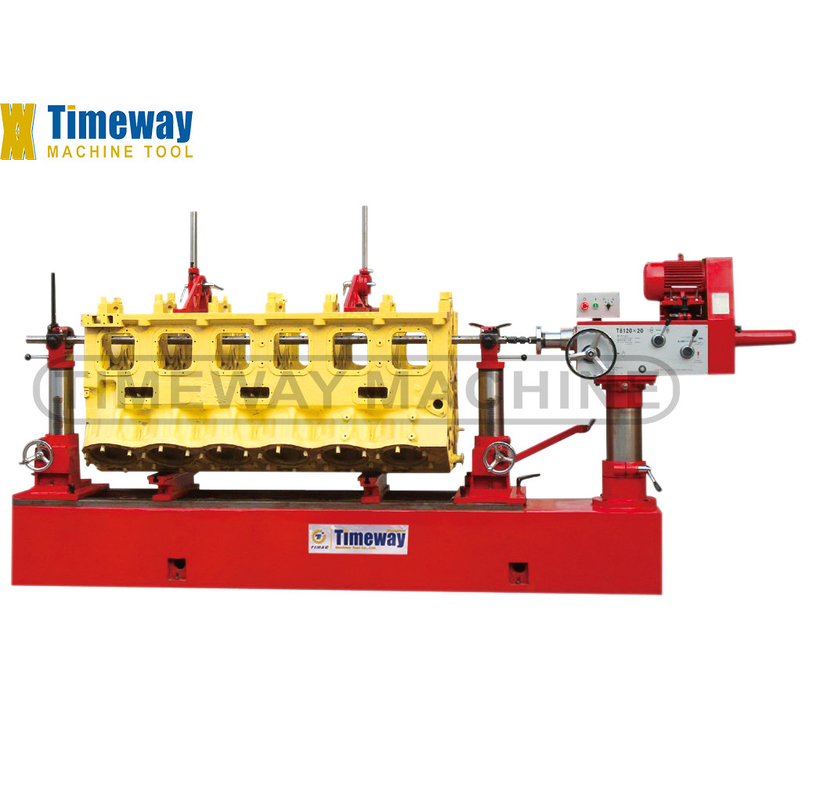

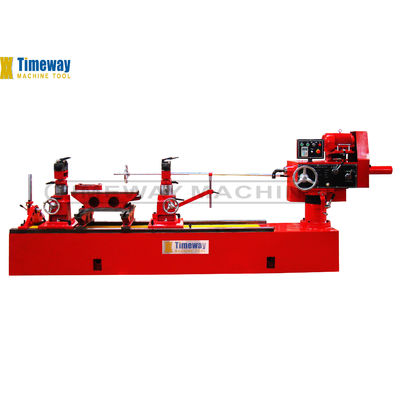

Fashion Style Cylinder Body Bushing Boring Machine for Manufacturing Plant
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $19,000.00/sets 1-2 sets |
| Packaging Details: | wooden case. |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Machine Type: | Metal Polishing Machine |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction Works , Energy & Mining |
| Showroom Location: | UAE, Bangladesh, Uzbekistan, Egypt, Canada, United States, Italy, France | Product Name: | Cylinder Body Bushing Boring Machine |
| Brand: | TIMAC | Style: | Fashion |
| Motor Power: | 0.75/1.1 Kw | N.W/G.W: | 1900/2200 Kg |
| After-sales Service Provided: | Online Support, Video Technical Support | After Warranty Service: | Video Technical Support, Online Support |
| Local Service Location: | Argentina, Algeria, Ukraine, Egypt, Canada | Port: | China Port. |
Product Description
| Specification | T8115 | T8120 |
| Range of hole diameter to be bored | φ36-Φ150mm | φ36-φ200mm |
| Max. length of cylinder body to be bored | 1600mm | 2000mm |
| Main shaft max. elongation | 300mm | 300mm |
| Main shaft rotating speed(6 steps) | 210-945rpm | 210-945rpm |
| Boring shat feed | 0.044, 0.167mm/r | 0.044, 0.167mm/r |
| Motor power | 0.75/1.1kw | 0.75/1.1kw |
| Overall diemension(LxWxH) | 3500x800x1500mm | 3900x800x1500mm |
| Packing diemension(LxWxH) | 3650x1000x1600mm | 4040x1020x1600mm |
| N.W/G.W | 1900/2200kg | 2200/2500kg |
Features:
1. This machine is used for boring master bushing and bushing of engine & generator's cylinder bodier in automobiles, tractors and ships etc.
2. With long travel of tool feeding, which can improve the work efficiency and coaxial of bored bushing.
3. The boring bar is special heat treatment, which can improve the rigidity and hardness of the boring bar and working precision availably.
4. The auto-feeding system adopts stepless adjusting, suits for processing all kinds of materials and hole diameter of the bushing.
5. With special measuring device, it is easily to measure the work piece.
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
