Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
 |
Other Positioning Accuracy Cylinder Boring Machine for 300 mm Table Travel and Boring
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
| Certification: | ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $4,500.00/sets 1-2 sets |
| Packaging Details: | wooden case. |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Table Size (mm): | Other | Table Travel (X) (mm): | 150 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 300 Mm | Table Travel (Z) (mm): | 0 Mm |
| Number Of Axes: | 2 | Travel (W-axis) (mm): | 0 Mm |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Positioning Accuracy (X Axis) Mm: | Other |
| Positioning Accuracy (Y Axis) Mm: | Other | Positioning Accuracy (Z Axis) Mm: | Other |
| Range Of Spindle Speed(r.p.m): | 380 R.p.m | Type: | VERTICAL |
| Condition: | New | CNC Or Not: | Normal |
| Weight (T): | 0.08 T | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction Works , Energy & Mining |
| Showroom Location: | Philippines, Pakistan, India, Morocco, Colombia, South Africa, Kazakhstan | Product Name: | Motorcycle Cylinder Boring Machine |
| Name: | Cylinder Boring Machine | Brand: | TIMAC TIMEWAY |
| After-sales Service Provided: | Online Support | Product Type: | Cylinder Blocks Boring Machine |
| Keyword: | Motorcycle Cylinder Boring Machine | Machine Type: | Vertical Boring Machine |
| Key Words: | Vertical Cylinder Boring Machine | Color: | Custmized |
| Port: | China Port. | ||
Product Description
Product Description

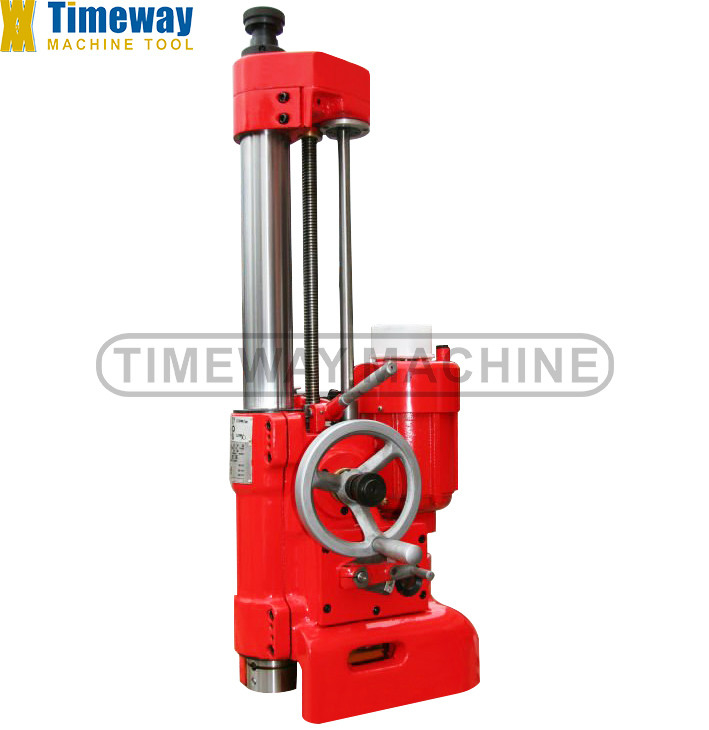

Motorcycle cylinder boring machine
Specification
Model | T8014A | T8016A | ||
Boring diameter | Φ65-Φ140 mm | Φ80-Φ165 mm | ||
Max. boring depth | 300 mm | 400 mm | ||
Spindle speed | 250;380 r/min | 200;300 r/min | ||
Spindle feed | 0.11 mm / r | 0.12 mm / r | ||
Spindle rapid reset | 636 mm / min | 780 mm / min | ||
Motor | Voltage | 220/380 V | 220/380 V | |
Power | 0.25/0.37 Kw | 0.25/0.37 Kw | ||
Speed | 1440 r/min | 1440 r/min | ||
Overall dimensions | 320×330×850 mm | 360×345×1100 mm | ||
Packing dimensions | 540×470×1030 mm | 500×490×1270 mm | ||
Features:

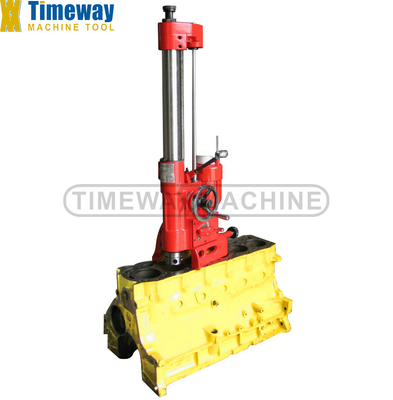

1. The machine is mainly used for reboring engine cylinders of automobiles motor cycles and tractors.
2. Reliable performance, widely use, processing accuracy, and high productivity.
3. Easy and flexible operation.
4. Good rigidity and amount of cutting.
2. Reliable performance, widely use, processing accuracy, and high productivity.
3. Easy and flexible operation.
4. Good rigidity and amount of cutting.

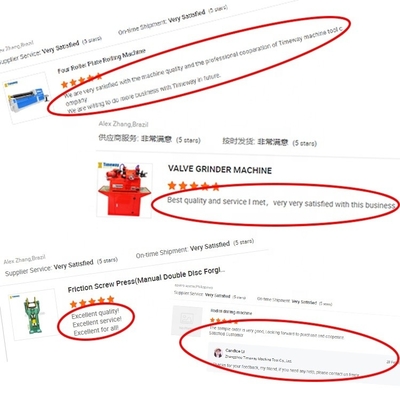

Positive Comments From Customers
Company Profile
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
