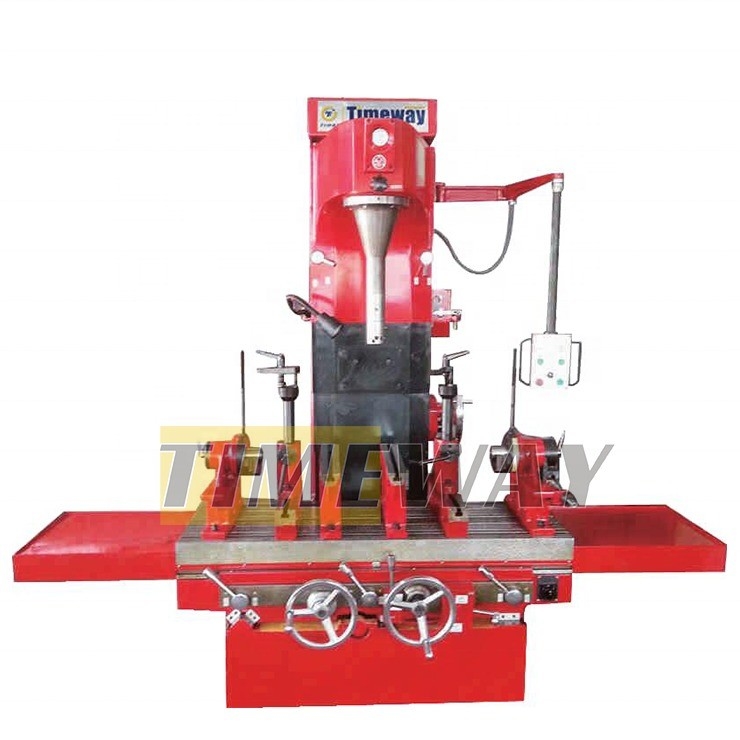

500 mm Table Travel Vertical Boring Machine Energy Saving Cylinder Repair Made Simple
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $14,980.00/sets 1-2 sets |
|
Detail Information |
|||
| Table Size (mm): | 1600x1800 | Table Travel (X) (mm): | 200 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 500 Mm | Table Travel (Z) (mm): | 200 Mm |
| Number Of Axes: | 2 | Travel (W-axis) (mm): | 500 Mm |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Positioning Accuracy (X Axis) Mm: | 0.001 |
| Positioning Accuracy (Y Axis) Mm: | 0.001 | Positioning Accuracy (Z Axis) Mm: | 0.001 |
| No. Of Spindles: | Single | Range Of Spindle Speed(r.p.m): | 840 R.p.m |
| Spindle Motor Power(kW): | 12 | Type: | VERTICAL |
| Condition: | New | CNC Or Not: | Normal |
| Voltage: | As Require | Dimension(L*W*H): | 1830x1800x2620mm |
| Weight (T): | 3.8 T | Warranty: | 1 Year |
| Key Selling Points: | Energy Saving | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction Works , Energy & Mining |
| Showroom Location: | Philippines, Pakistan, Morocco, Colombia, Kazakhstan, Japan | After-sales Service: | Engineers Available To Service Machinery Overseas |
| Machine Type: | Vertical Boring Machine | Brand: | TImeway |
| Spindle Travel: | 550 Mm | Table Longitudinal Travel: | 1100mm |
| Spindle Speed Range: | 190-600 Mm | Longitudinal Travel(X): | 200mm |
| Cross Travel(Y): | 500mm | Vertical Travel(Z): | 200mm |
| Table Size: | 1600*1800 | ||
Product Description
Products Description
Features:
1. T7220B & T7226
Vertical boring machine is mainly used to bore high accurate holes of cylinder body and engine sleeve and other accurate holes.
2. T7220C
The machine is mainly used for fine boring high accurate holes of cylinder body and engine sleeve, also for other accurate holes, it's can used for milling surface of cylinder. The machine can be used to boring, milling, drilling and reaming.
1. T7220B & T7226
Vertical boring machine is mainly used to bore high accurate holes of cylinder body and engine sleeve and other accurate holes.
2. T7220C
The machine is mainly used for fine boring high accurate holes of cylinder body and engine sleeve, also for other accurate holes, it's can used for milling surface of cylinder. The machine can be used to boring, milling, drilling and reaming.
Specification | T7220B | T7220C | T7226 |
Max. boring diameter | 200 | 200 | 260 |
Max. boring depth | 500 | 500 | 500 |
Milling cutter head diameter | - | 250/315 | - |
Max. milling area | - | 850x250/780x315 | - |
Spindle speed | 53-840 | 53-840 | 53-840 |
Spindle feed rate | 0.05-0.2 | 0.05-0.2 | 0.05-0.2 |
Distance from spindle center to column | 315 | 315 | 315 |
Table longitudinal travel | 900 | 1100 | 900 |
Table longitudinal feed speed | - | 55, 110 | - |
Table longitudinal rapid feed speed | - | 1500 | - |
Table cross travel | 100 | 100 | 100 |
Boring dimensions accuracy | IT7 | IT7 | IT7 |
Milling dimensions accuracy | - | IT8 | - |
Roundness | 0.005 | 0.005 | 0.005 |
Cylindricity | 0.02/300 | 0.02/300 | 0.02/300 |
Boring surface roughness | Ra0.8-Ra1.6 | Ra1.6 | Ra0.8-Ra1.6 |
Milling surface roughness | - | Ra1.6-3.2 | - |
Machine dimensions (LxWxH) | 2250x1588x2335 | 2610x1655x2345 | 2250x1588x2335 |
Packing dimensions (LxWxH) | 1830x1800x2620 | 1830x1964x2535 | 1830x1800x2620 |
N.W/G.W | 3300/3800 | 3800/4200 | 3300/3800 |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
