Rotating Speed of Work-Piece 45.70 r/min Fashion Brake Drum Boring Machine T8360B
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,000.00/sets 1-2 sets |
| Packaging Details: | wooden case. |
| Supply Ability: | 400 Set/Sets per Month |
|
Detail Information |
|||
| Warranty: | 12 Months | Product Name: | Brake Drum Boring Machine |
|---|---|---|---|
| Brand: | TIMAC | Style: | Fashion |
| Range Of Processing Diameter: | 180-600 Mm | Rotating Speed Of Work-piece: | 27,45.70 R/min |
| Working Travel Of Slideboard: | 450 Mm | Port: | China Port. |
Product Description
Product Description

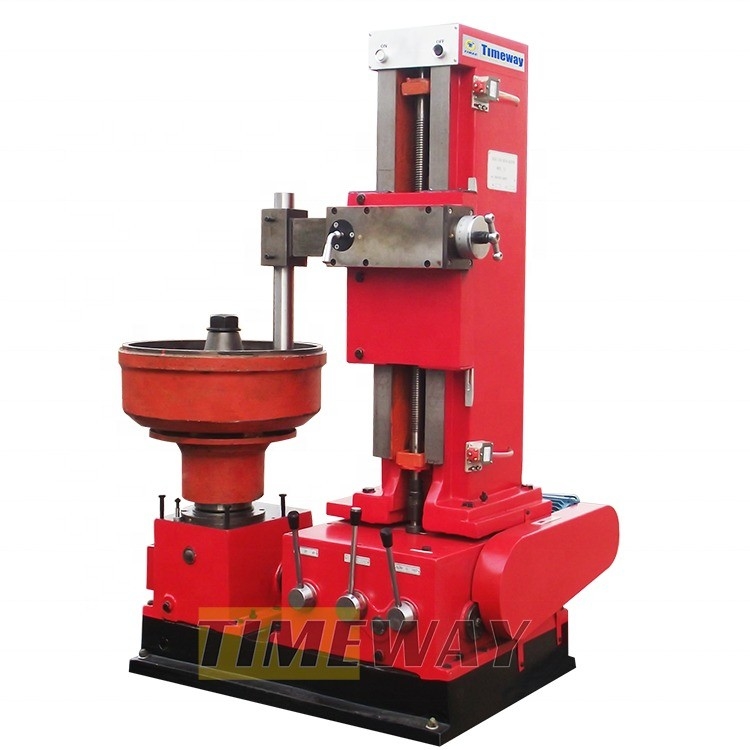

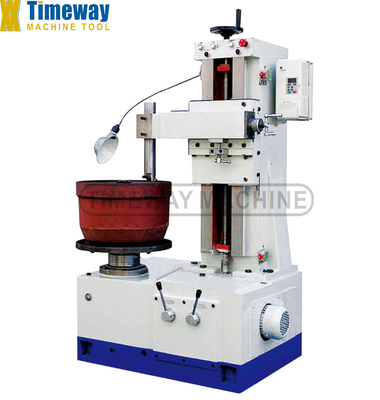

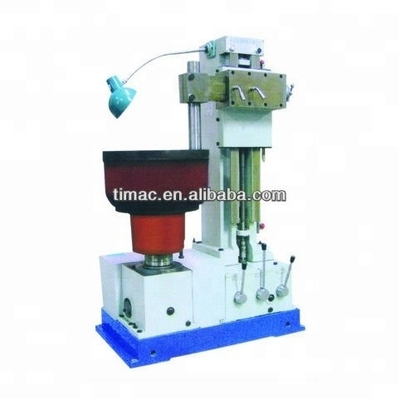

Brake Drum Boring Machine
Features:
1. The Brake Drum Boring Machine is suitable for processing the brake drum, brake shoe and brake plate of various domestic and foreign cars and sedans.
2. Have the advantages of beautiful shape, rational structure, easy operating, good rigidity, high cutting speed, safe,
reliability and multipurpose.
3. The T8365A is better suitable for repairing/boring the brake drum and brake piece of large-or-medium-sized vehicle .
4. In the accessories of T8365A , there are universal hub-heads, coupling plates and locating plates to assist the brake drum in position leaning on the retaining ledge, and the brake drum also can be bored depending on the hub-head in the brake drum.
2. Have the advantages of beautiful shape, rational structure, easy operating, good rigidity, high cutting speed, safe,
reliability and multipurpose.
3. The T8365A is better suitable for repairing/boring the brake drum and brake piece of large-or-medium-sized vehicle .
4. In the accessories of T8365A , there are universal hub-heads, coupling plates and locating plates to assist the brake drum in position leaning on the retaining ledge, and the brake drum also can be bored depending on the hub-head in the brake drum.
Specification
Specification | T8360A/T8360B | T8365A |
Range of processing diameter | 180-600mm | 350-650mm |
Rotating speed of workpiece | 27,45.70r/min | 30,45r/min |
Working travel of slideboard | 450mm | 450mm |
Feed range | 0.4- 0.07mm/r (4 steps) | 0.4- 0.07mm/r (4 steps) |
Motor | 1.1kw | 0.85/1.1kw |
Overall dimensions (LxWxH) | 940×850×1415mm | 930×600×1410mm |
Packing dimensions (LxWxH) | 1150×950×1580mm | 1200×1050×1650mm |
Weight | 800/900kg | 900kg/1000kg |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
