Competitive Vertical Cylinder Honing Machine 3MB9808 Weight 500KG
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,800.00/sets 1-2 sets |
| Packaging Details: | wooden case / plywood case |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Warranty: | 1 Year | Key Selling Points: | High Safety Level |
| Weight (KG): | 500 | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Farms, Retail, Construction Works , Energy & Mining |
| Showroom Location: | Philippines, India, Kenya, Algeria, Ukraine | Brand: | TIMAC TIMEWAY |
| Product Name: | Cylinder Honing Machine | Weight: | 500 Kgs |
| Name: | Sunnen Honing Machine | Type: | Vertical Honing Machine |
| Machine Type: | Cylinder Block Honing Machine | Key Word: | Honing Machines |
| Model: | 3MB9808 | Color: | Customer Choose |
| Key Selling Point: | Competitive Price | Port: | China Port |
Product Description
Product Description

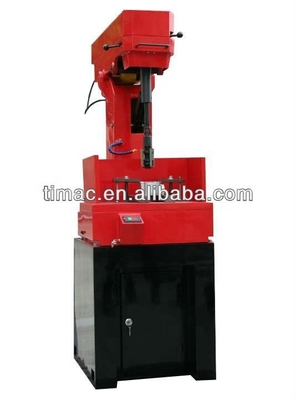

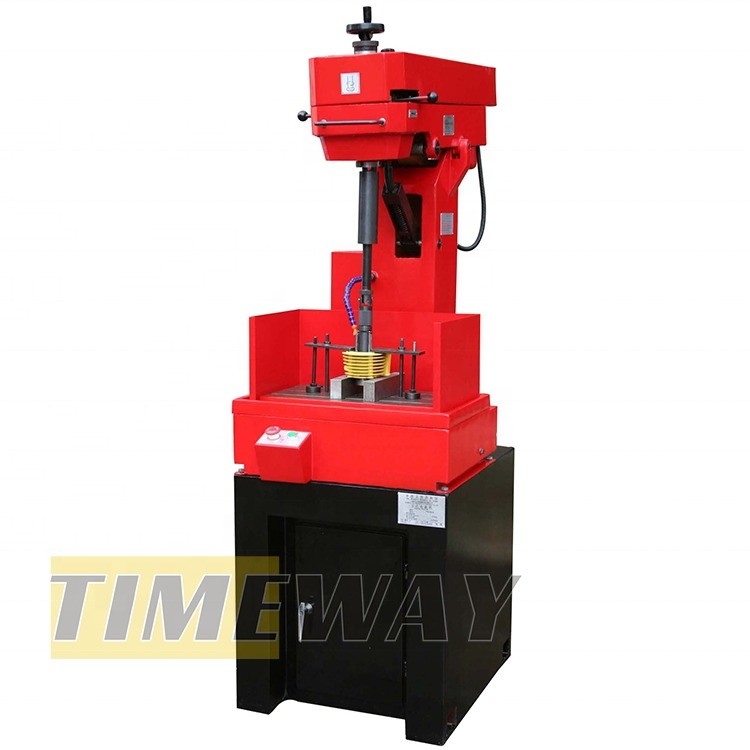

Vertical Cylinder Honing Machine
Features:
* The machine is mainly used for honing engine cylinder of automobiles motor cycles cars and tractors and also for making other machine tools.
* The machine have compact frame, small volume.
* The machine can operate easily, having manual operator and motor operator.
* When the main spindle moving up and down, precision of switch direction less than 0.4mm.
* Good rigidity and amount of cutting..
* The machine have compact frame, small volume.
* The machine can operate easily, having manual operator and motor operator.
* When the main spindle moving up and down, precision of switch direction less than 0.4mm.
* Good rigidity and amount of cutting..
Specification
Specification | Unit | 3MB9808 |
Max. diameter of hold honed | mm | 40-82 |
Max .depth of hole honed | mm | 200 |
Spindle speed | mm | 200;280 (2 steps) |
Stork | a/min | 19;27 (2 steps) |
Power of main motor | Kw | 0.55 |
Spindle vertical travel | mm | 70 |
Power of cooling pump motor | Kw | 0.09 |
Machine working inside cavity dimensions(L×W) | mm | 600×380 |
Overall dimensions L×W×H | mm | 600×850×1300 |
Machine Weight | Kg | 350 |

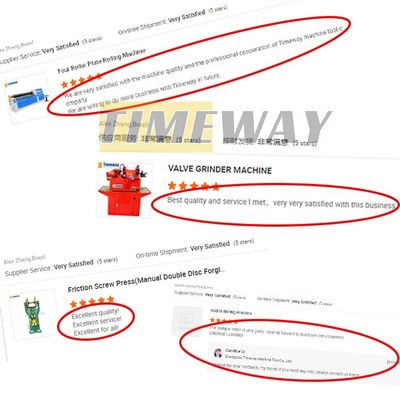

Positive Comments From Customers
Company Profile

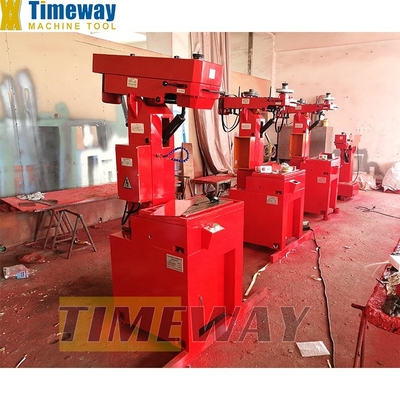

Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
