Durable and Sustainable Vertical Cylinder Boring Machine T8018A T8018B T8018C with 1
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $1,000.00 - $55,000.00/sets |
| Packaging Details: | wooden case(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Warranty: | 1 Year | Key Selling Points: | Sustainable |
| Weight (KG): | 2000 | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction Works , Energy & Mining |
| Showroom Location: | United States, Philippines, Brazil, India, Mexico, Kenya, Argentina | Style: | Fashion |
| Product Name: | Cylinder Boring Machine | Brand: | TIMAC |
| After-sales Service Provided: | Online Support | After Warranty Service: | Video Technical Support |
| Warranty Period: | 1 Year | Port: | China Port |
Product Description

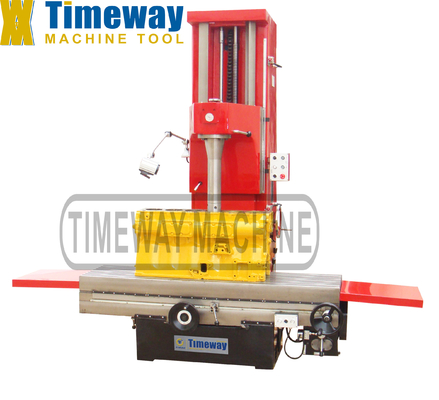

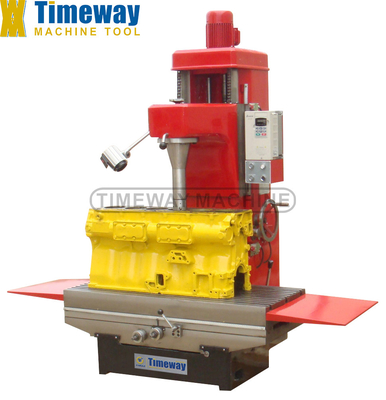

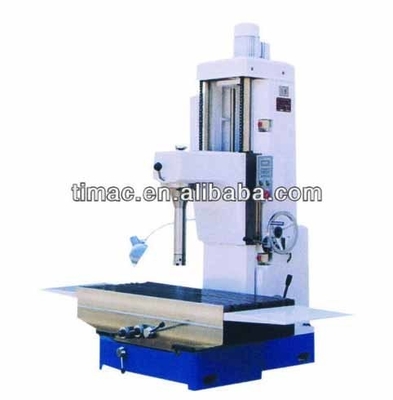

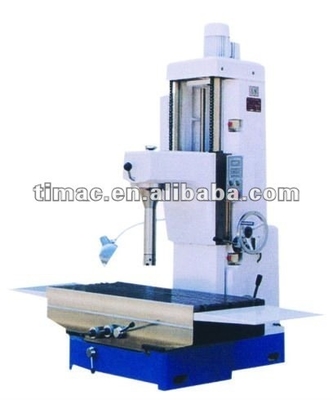

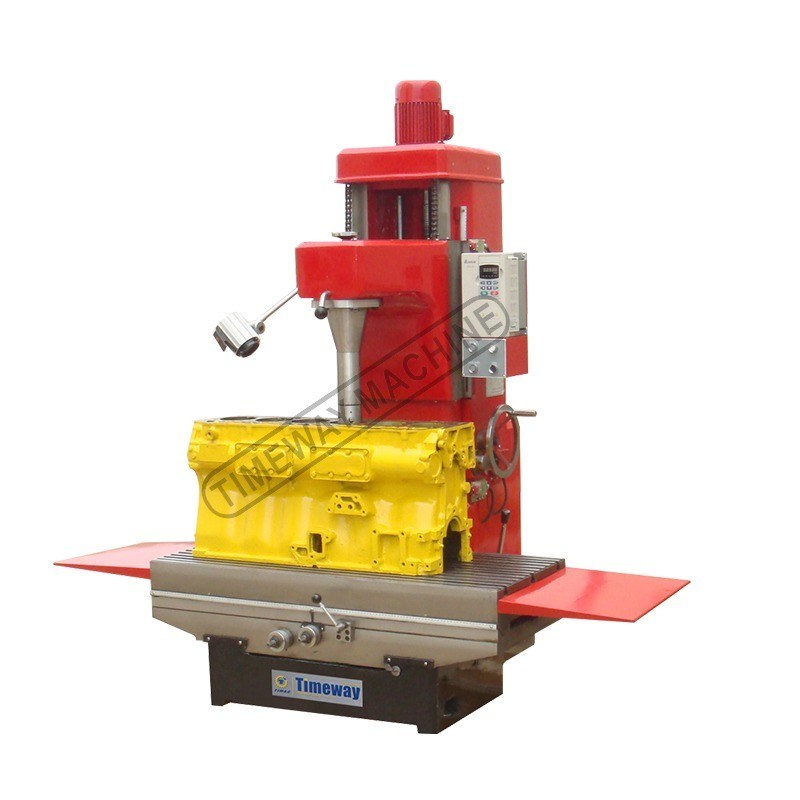

CYLINDER BORING MACHINE T8018A T8018B T8018C
| Specifications | Unit | T8018A | T8018B | T8018C |
| Range of boring diameter | mm | φ30-φ180 | φ42-φ180 | |
| Max. boring depth | mm | 450 | 650 | |
| The rotational speed of spindle | r/min | 140-610 | 175,230,300,350,460,600 | 175,230,300,350,460,600 |
| Spindle feed | mm | 0.05, 0.10, 0.20 | 0.05, 0.10, 0.20 | |
| Spindle travel | mm/r | 500 | 800 | |
| The high rising speed of spindle | m/min | 2.65 | 2.65 | |
| The distance from the central line of the spindle to the body | mm | 320 | 315 | |
| Table size | mm | 1200x500 | 1680x450 | |
| Table travel - crosswise | mm | 100 | 150 | |
| Table travel - legthwise | mm | 800 | 1500 | |
| Rapid travel of guide slide | mm/min | 2800 | 2800 | |
| Rapid travel of table | mm/min | - | 1400 | |
| Main motor power | kw | 3 | 2.4/3 | 2.4/3 |
| Motor for quick-moving | kw | 0.75 | 0.75 | |
| Overall dimension(LxWxH) | mm | 200x1235x1920 | 2680x1500x2325 | |
| Packing dimension(LxWxH) | mm | 1400x1400x2250 | 1578x1910x2575 | |
| N.W./G.W. | kg | 200/2200 | 3500x3700 | |
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
