Durable Brake Drum Lathe / Disc Cutting Lathe C9335 C9365 Perfect for Country Markets
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $4,200.00/sets 1-2 sets |
| Packaging Details: | wooden case(can be fumigated) |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Warranty: | 1 Year | Key Selling Points: | Sustainable |
| Weight (KG): | 800 | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction Works , Energy & Mining |
| Showroom Location: | United States, Philippines, Brazil, India, Mexico, Russia, Spain | Product Name: | Disc Cutting Lathe |
| Rotating Speed Of Workpiece: | 90 R/min | Max. Travel Of Tool: | 100 Mm |
| Motor Power: | 0.75 Kw | Model: | C9335 |
| COLOR: | Customer Choose | Function: | Brake Plate |
| Port: | China Port | ||
Product Description

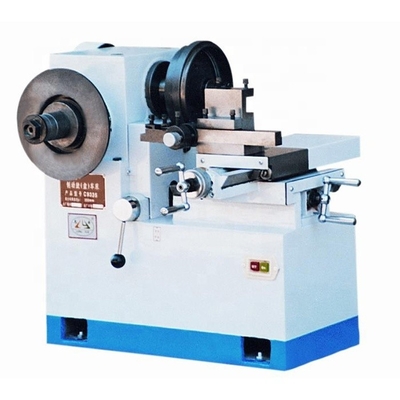

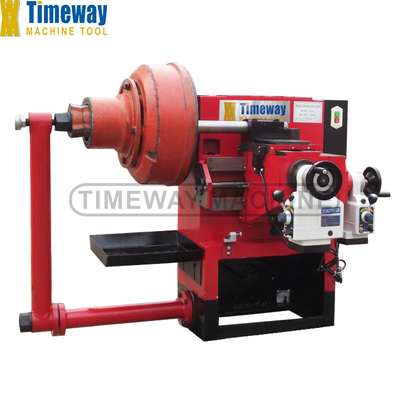

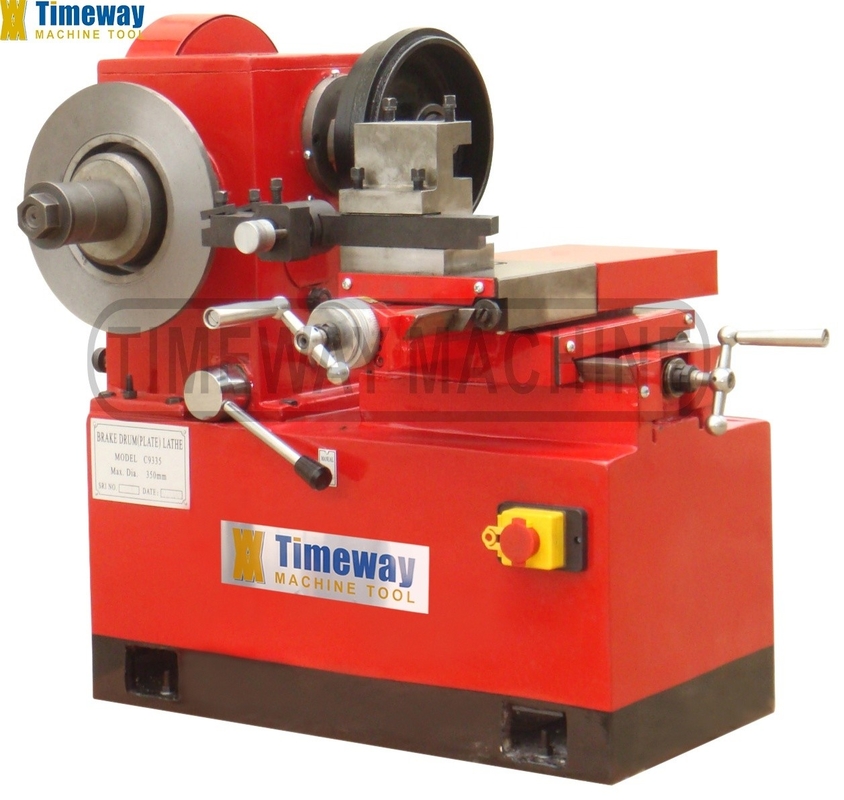

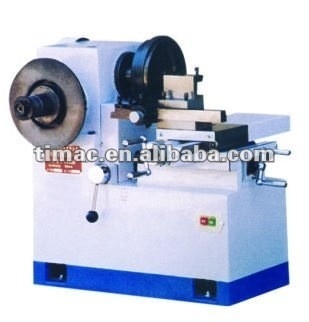

Brake Drum Lathe / Disc Cutting Machine
| Specification | Unit | C9335 | C9365 | |
| Range of processing diameter | Brake drum | mm | φ180-φ350 | φ350-φ650 |
| Brake plate | mm | φ180-φ350 | φ180-φ400 | |
| Rotating speed of workpiece | r/min | 90 | 30, 49, 88 | |
| Max. travel of tool | mm | 100 | 256 | |
| Overall dimension(LxWxH) | mm | 695x565x635 | 1750x800x815 | |
| Packing dimension(LxWxH) | mm | 750x710x730 | 1165x956x915 | |
| N.W/G.W | kg | 200/260 | 650/800 | |
| Motor power | kw | 0.75 | 1.1 | |
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
