Accurate Valve Grinding Machine VR90 for Machinery Repair Shops and Voltage 220V 380V
Product Details:
| Place of Origin: | China |
| Brand Name: | timeway timac |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $2,500.00/sets 1-2 sets |
| Packaging Details: | wooden case |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Belt Grinder | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Year: | 2022 |
| Voltage: | 220V 380V | Dimension(L*W*H): | 68x60x60cm |
| Weight (KG): | 120 | Power (kW): | 0.6 |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
| Showroom Location: | Russia, Canada, Turkey, Kazakhstan, Thailand, Chile, Brazil, Algeria, Indonesia | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Engine, Other | Product Name: | Valve Grinding Machine |
| Weight: | 120 Kgs | Brand: | TIMAC |
| Style: | Fashion | After-sales Service Provided: | Online Support |
| After Warranty Service: | Video Technical Support | Port: | China Port |
Product Description

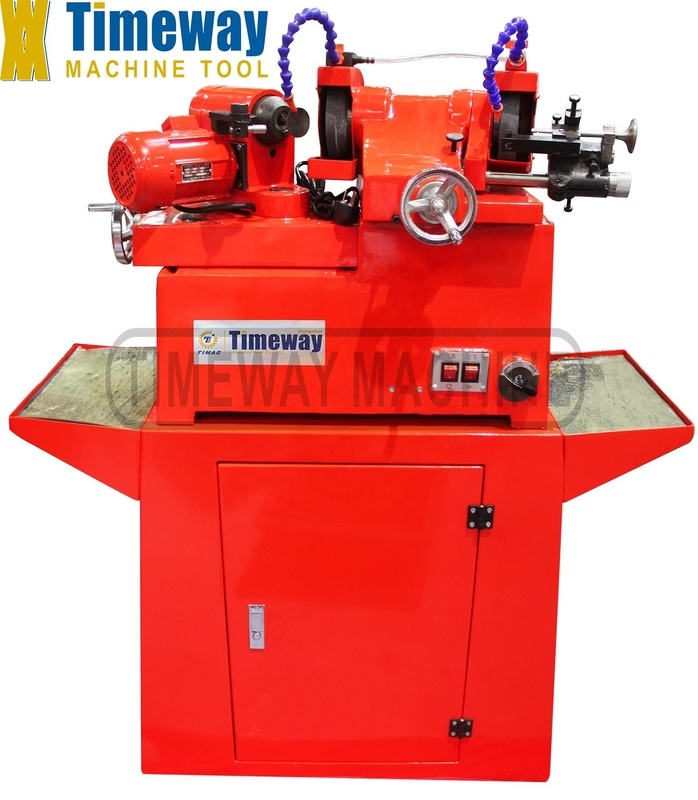

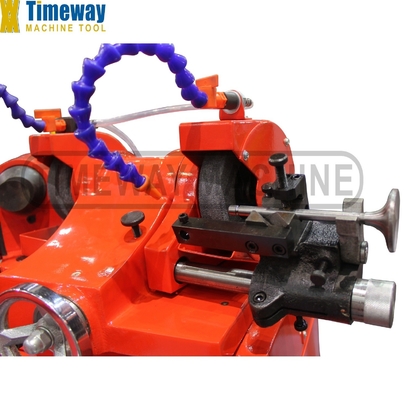

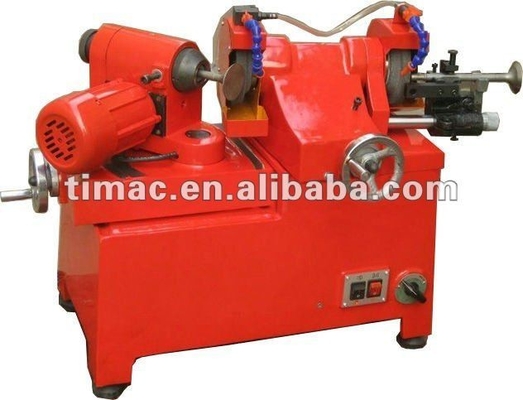

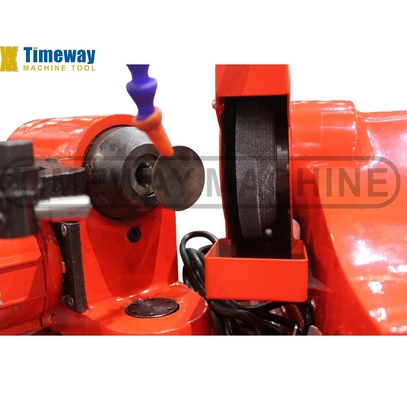

VALVE SEAT & VALVE GRINDING MACHINE
Features:
1. This machine is special for grinding the valves in internal combustion engines (the valves in engines on automobiles and tractors), featuring small size, flexible and easy operation.
2. The parts are ground with high surface finish and accuracy.
Parameter:
| Specification | unit | VR90 |
| Max.dia.of vakves to be ground | mm | 90 |
| Dia.of valve stems to be gripped(standard accessories) | mm | 6-16 |
| Dia.of valve stems to be gripped(optional accessories) | mm | 4-7 |
| Dia.of valve stems to be gripped(optional accessories) | mm | 12-18 |
| Angles of valves to be ground | ° | 25-60 |
| Longi tndinal movement of geared head | mm | 120 |
| Transverse movement of grinding wheel head | mm | 95 |
| Max.cutt ing depth of ground valve | mm | 0.025 |
| Grinding wheel spindle speed | rpm | 4500 |
| Geared head spindle speed | rpm | 125 |
| Motor output for grinding wheel head | kw | 0.37 |
| Motor outpnt for geared head | kw | 0.09 |
| Machine weight | Kg | 120 |
| Overall dimensions(L×W×H) | cm | 68×60×60 |
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
