THM170 Vertical Engine Cylinder Honing Machine 80 mm Table Cross Travel 1.1 kW Power
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $11,700.00/sets 1-2 sets |
| Packaging Details: | wooden case or plywood case |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Construction Works , Energy & Mining | Showroom Location: | Egypt, Italy, Brazil, Peru, Mexico, Russia, Argentina, South Korea |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Condition: | New |
| CNC Or Not: | Normal | Dimension(L*W*H): | 1820*1440*2170 |
| Weight (KG): | 1400 | Power (kW): | 1.1 |
| Key Selling Points: | Energy Saving | Warranty: | 1 Year |
| Product Name: | Cylinder Honing Machine | Style: | Fashion |
| Brand: | TIMAC TIMEWAY | Table Cross Travel: | 80 Mm |
| Table Max. Loading: | 200 Kg | Main Motor: | 1.1 Kw |
| Hydraulic Station Motor: | 1.5 Kw | Name: | Cylinder Honing Machine |
| Color: | Customized | Key Selling Point: | Competitive Price |
| Port: | China Port | ||
Product Description
Product Description

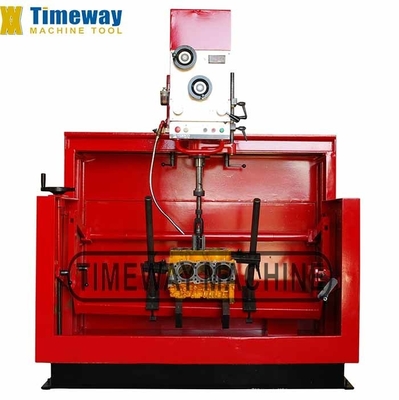

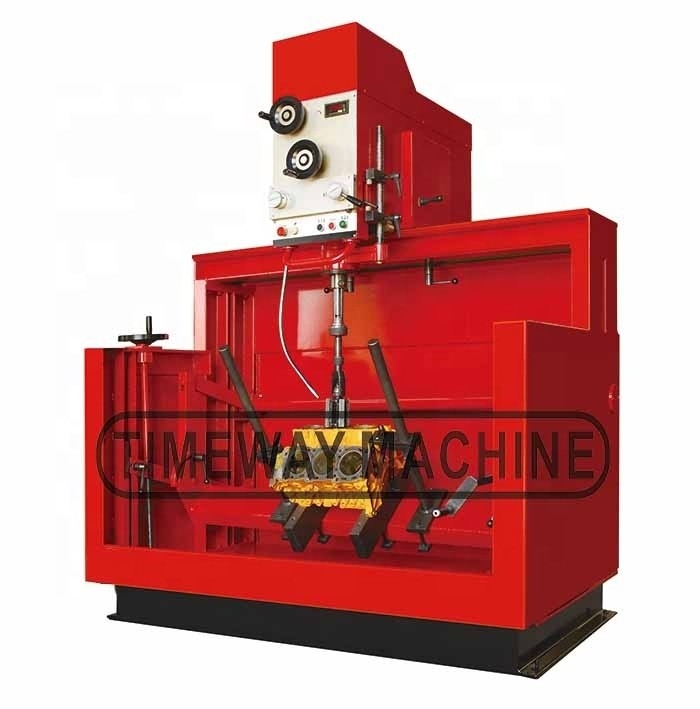

Vetical Honing Machine
Feature：
* Hydraulic vertical honing machine with head provided with pneumatic system for an easy honing spindle longitudinal and transversal positioning on the workpiece.
* The block supporting base is adjustable in the height and inclination to allow the assembling of flat and "V"blocks.
* Honing spindle with steplessly variable ratation speed visualized on the control panel.
* The block supporting base is adjustable in the height and inclination to allow the assembling of flat and "V"blocks.
* Honing spindle with steplessly variable ratation speed visualized on the control panel.
Specification
Specification | Unit | THM170 |
Max. dia. of the hole honed | mm | φ170 |
Max. depth of the hole honed | mm | 360 |
Spindle speed(stepless) | r.p.m | 100-300 |
Roundness | mm | 0.0025 |
Cylindricity | mm | 0.005 |
Table longitudinal travel | mm | 1100 |
Table cross travel | mm | 80 |
Table max. loading | kg | 200 |
Main motor | kw | 1.1 |
Hydraulic station motor | kw | 1.5 |
Packing dimensions(LxWxH) | mm | 2210x1610x2270 |
N.W/G.W | kg | 1200/1400 |
Positive Comments From Customers
Company Profile
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
