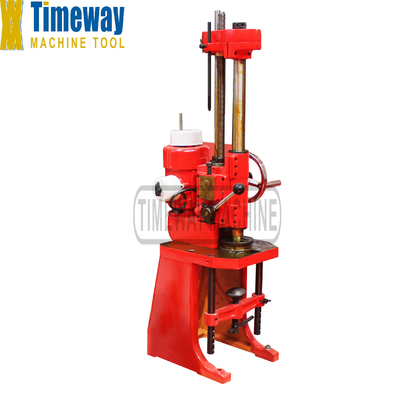

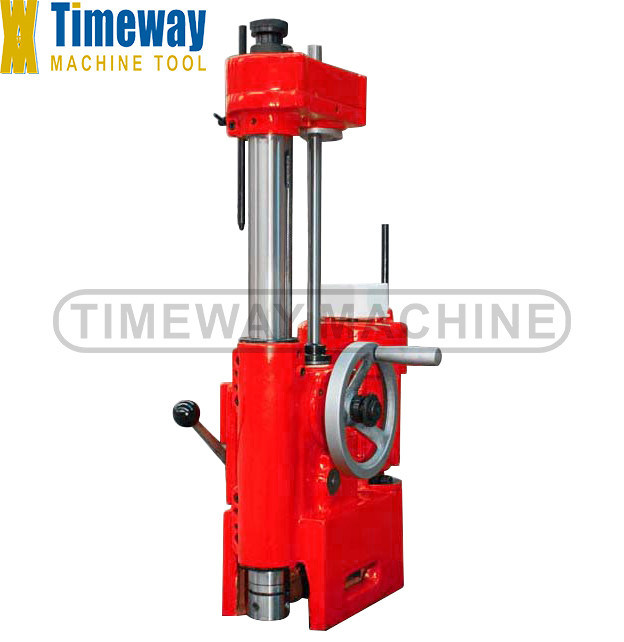

VERTICAL Motorcycle Cylinder Boring Machine T806 T806A T807 with 39-165mm Boring Dia
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
| Certification: | ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $1,380.00/sets 1-4 sets |

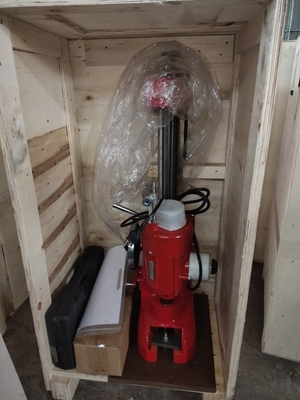

| Packaging Details: | Wooden cases (can be fumigated) |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Table Size (mm): | Other | Table Travel (X) (mm): | 0 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 160 Mm | Table Travel (Z) (mm): | 0 Mm |
| Number Of Axes: | 2 | Travel (W-axis) (mm): | 0 Mm |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Range Of Spindle Speed(r.p.m): | 1440 R.p.m |
| Spindle Motor Power(kW): | 0.25 | Type: | VERTICAL |
| Condition: | New | CNC Or Not: | Normal |
| Production Capacity: | High | Voltage: | 220V/380V |
| Dimension(L*W*H): | 350x272x725 Mm | Weight (T): | 0.09 T |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction Works , Energy & Mining | Showroom Location: | Mexico, Kenya, Bangladesh, Kyrgyzstan, Nigeria, Malaysia |
| Product Name: | Motocycle Cylinder Boring Machine | Brand: | TIMAC TIMWAY |
| Table Size: | Other | X-axis Travel: | 0mm |
| Y-axis Travel: | 160mm | Z-axis Travel: | 0mm |
| Product Type: | Cylinder Blocks Boring Machine | Keyword: | Motorcycle Cylinder Boring Machine |
| Name: | Motorcycle Cylinder Boring Machine | Port: | FOB China |
Product Description
Product Description
Feature：
Motorcycle Cylinder Boring Machine
1. The machine is mainly used for reboring engine cylinders of automobiles motor cycles and tractors.
2. Reliable performance, widely use, processing accuracy high productivity.
3. Easy and flexible operation.
1. The machine is mainly used for reboring engine cylinders of automobiles motor cycles and tractors.
2. Reliable performance, widely use, processing accuracy high productivity.
3. Easy and flexible operation.
Specification

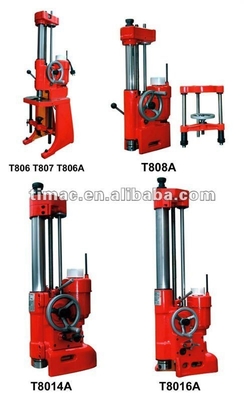

Model | T806 | T807 | T806A | ||
Boring diameter | Φ39-Φ60 mm | Φ39-Φ70 mm | Φ46-Φ80 mm | ||
Max. boring depth | 160 mm | 160 mm | 160 mm | ||
Spindle speed | 486 r/min | 486 r/min | 486 r/min | ||
Spindle feed | 0.09 mm / r | 0.09 mm / r | 0.09 mm / r | ||
Motor | Voltage | 220/380 V | 220/380 V | 220/380 V | |
Power | 0.25 Kw | 0.25 Kw | 0.25 Kw | ||
Speed | 1440 r/min | 1440 r/min | 1440 r/min | ||
Positive Comments From Customers
Company Profile
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
