Vertical Cylinder Boring Machine 100mm X-axis Travel and 800mm Y-axis Travel for Boring
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $10,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases ( can be fumigated) |
| Supply Ability: | 65 Set/Sets per Month |
|
Detail Information |
|||
| Table Size (mm): | 1200x500 | Table Travel (X) (mm): | 800 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 100 Mm | Table Travel (Z) (mm): | 0 Mm |
| Number Of Axes: | 2 | Travel (W-axis) (mm): | 100 Mm |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Range Of Spindle Speed(r.p.m): | 600 R.p.m |
| Type: | VERTICAL | Condition: | New |
| CNC Or Not: | Normal | Voltage: | 220V/380V |
| Weight (T): | 2 T | Warranty: | 1 Year |
| Key Selling Points: | Sustainable | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction Works , Energy & Mining |
| Showroom Location: | Egypt, Pakistan, Morocco, Kenya, Argentina, South Korea | Product Name: | Motorcycle Cylinder Boring Machine |
| Brand: | TIMAC | Style: | Fashion |
| Machine Type: | T8016A Small Cylinder Boring Machine | Table Size: | 1200x500mm |
| X-axis Travel: | 100mm | Y-axis Travel: | 800mm |
| Z-axis Travel: | 500mm | Port: | Any China Port |
Product Description

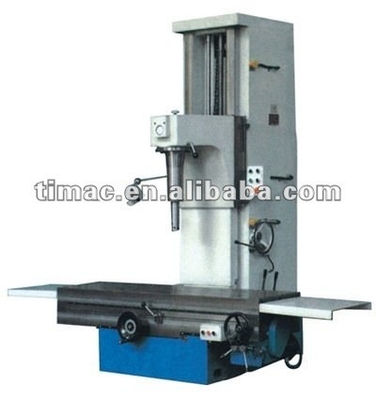

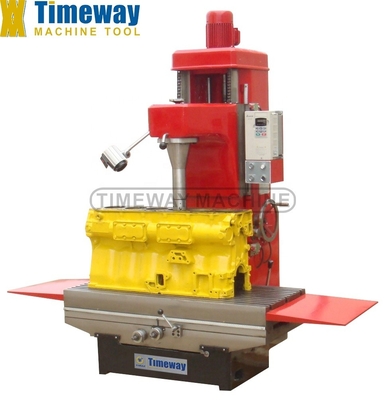

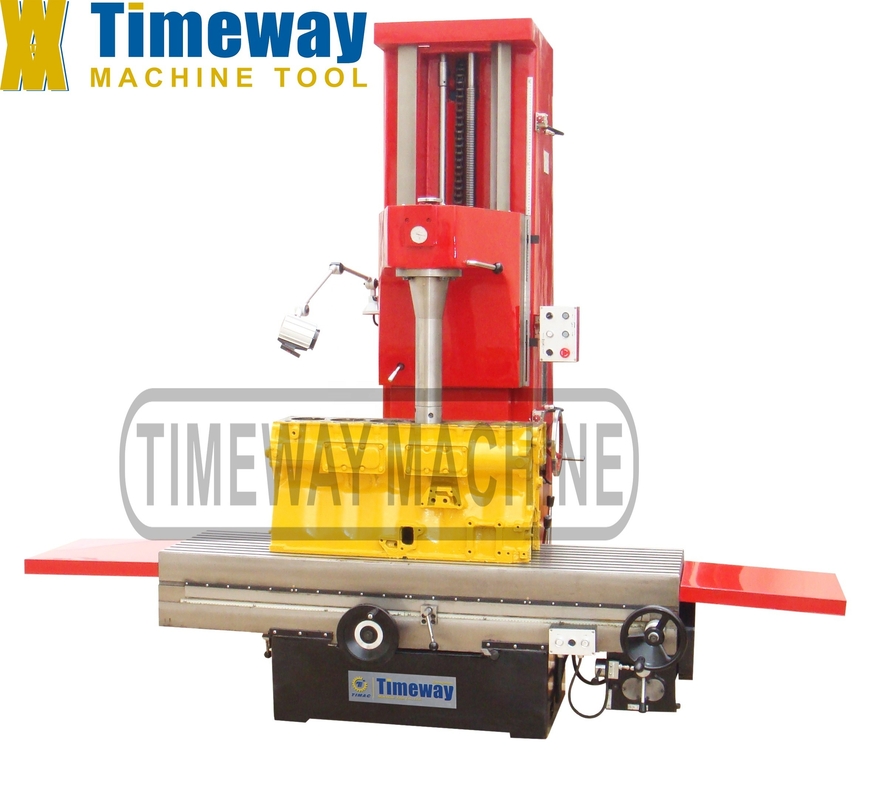

Vertical Cylinder Boring Machine (T-8018A & T-8018B & T-8018C )
Feature:
The machine is mainly used for boring the cylinder hole of internal combustion engine and
the inner hole of cylinder sleeve of cars or tractors, and also for other machine element hole.
Parameter:
| Specifications | Unit | T8018A | T8018B | T8018C |
| Range of boring diameter | mm | φ30-φ180 | φ42-φ180 | |
| Max. boring depth | mm | 450 | 650 | |
| The rotational speed of spindle | r/min | 140-610 | 175,230,300,350,460,600 | 175,230,300,350,460,600 |
| Spindle feed | mm | 0.05, 0.10, 0.20 | 0.05, 0.10, 0.20 | |
| Spindle travel | mm/r | 500 | 800 | |
| The high rising speed of spindle | m/min | 2.65 | 2.65 | |
| The distance from the central line of the spindle to the body | mm | 320 | 315 | |
| Table size | mm | 1200x500 | 1680x450 | |
| Table travel - crosswise | mm | 100 | 150 | |
| Table travel - legthwise | mm | 800 | 1500 | |
| Rapid travel of guide slide | mm/min | 2800 | 2800 | |
| Rapid travel of table | mm/min | - | 1400 | |
| Main motor power | kw | 3 | 2.4/3 | 2.4/3 |
| Motor for quick-moving | kw | 0.75 | 0.75 | |
| Overall dimension(LxWxH) | mm | 200x1235x1920 | 2680x1500x2325 | |
| Packing dimension(LxWxH) | mm | 1400x1400x2250 | 1578x1910x2575 | |
| N.W./G.W. | kg | 200/2200 | 3500/3700 | |
T8018A: Mechanical-electronic drive and spindle speed frequence changed speed variation.
T8018B: Mechanical drive
T8018C: Used for processing special heavy motor cylinders.
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
