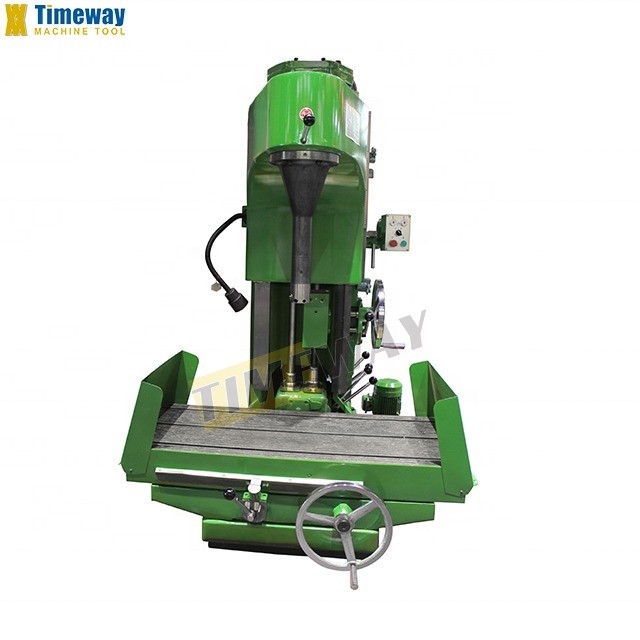

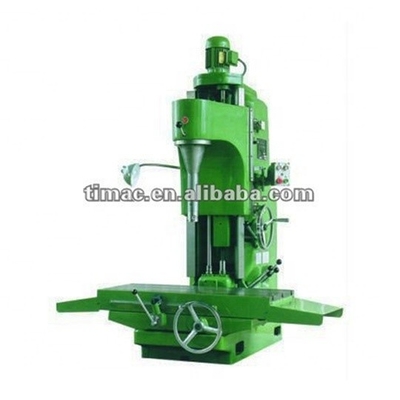

Single Spindle 160mm Boring Dia. Vertical Cylinder Boring Machine T716A for Machinery Repair Shops
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,980.00/sets 1-2 sets |
| Packaging Details: | Wooden cases ( can be fumigated) |
| Supply Ability: | 65 Set/Sets per Month |
|
Detail Information |
|||
| Table Size (mm): | 1845x1712x2225 | Table Travel (X) (mm): | 700 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 100 Mm | Table Travel (Z) (mm): | 550 Mm |
| Number Of Axes: | 3 | Travel (W-axis) (mm): | 700 Mm |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Hot Product 2019 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | No. Of Spindles: | Single |
| Range Of Spindle Speed(r.p.m): | 600 R.p.m | Type: | VERTICAL |
| Condition: | New | CNC Or Not: | Normal |
| Voltage: | 220/380V | Dimension(L*W*H): | As Model |
| Weight (T): | 2.8 T | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Other |
| Showroom Location: | Italy, Peru, Indonesia, India, Mexico, Russia, Thailand, South Korea, South Africa | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Cylinder Boring Machine: | Motorcycle Cylinder Boring Machine | Weight: | As Require |
| X-axis Travel: | 700 Mm | Y-axis Travel: | 100 Mm |
| Z-axis Travel: | 550 Mm | Warranty Period: | 1 Year |
| Max. Boring Diameter: | 160 Mm | Max. Boring Depth: | 410 Mm |
| Port: | China Port | ||
Product Description
Products Description
1. The T716A is mainly used for fine boringhole s of cylinder and sleeve for various engines and other sccurate holes.
2. The T7220B vertical boring machine is mainly used to bore high accurate holes of cylinder body and engine sleeve and other accurate holes.
3. The T7220C is mainly used for fine boring high accurate holes of cylinder body and engine sleeve, also for other accurate holes, it's can used for milling surface ofcylin der.
2. The T7220B vertical boring machine is mainly used to bore high accurate holes of cylinder body and engine sleeve and other accurate holes.
3. The T7220C is mainly used for fine boring high accurate holes of cylinder body and engine sleeve, also for other accurate holes, it's can used for milling surface ofcylin der.
The machine can be used to boring, milling, drilling, reaming.

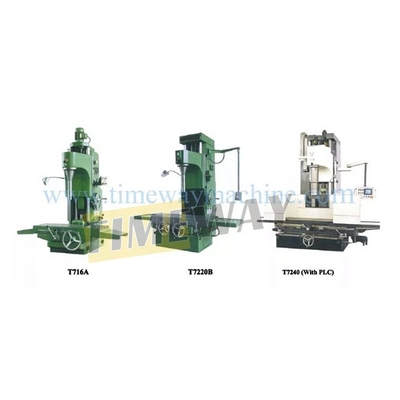

Specification | T716A | T7220B | T7220C | T7240 | |||
Max. boring diameter | Φ160mm | Φ200mm | Φ200mm | Φ400mm | |||
Max. boring depth | 410mm | 500mm | 500mm | 750mm | |||
Milling cutter head diamenter | - | - | 250mm | ||||
Max. milling area (L×W) | - | - | 850×250mm | ||||
Spindle speed range | 190-600r/min | 53-840m/min | 50-1000r/min | ||||
Spindle feed range | 0.05-0.20mm/r | 0.05-0.20mm/r | 6-3000mm/min | ||||
Spindle travel | 550mm | 710mm | 1000mm | ||||
Distance from spindle axis to carriage vertical plane | 310mm | 315mm | 500mm | ||||
Table longitudinal travel | 700mm | 900mm | 1100mm | 1600mm | |||
Table longitudinal feed speed | - | - | 54,108mm/min | ||||
Table longitudinal quick move speed | - | - | 1500mm/min | ||||
Table cross travel | 100 mm | 100mm | |||||
Boring dimension accuracy | IT7 | IT7 | IT7 | ||||
Milling dimension accuracy | - | - | IT8 | IT8 | |||
Roundness | 0.005 | 0.005 | 0.008 | ||||
Cylindricity | 0.02/300 | 0.01/300 | 0.02 | ||||
Boring surface roughness | Ra1.6 | Ra1.6 | Ra1.6 | Ra1.6 | |||
Milling surface roughness | - | - | Ra1.6-3.2 | Ra1.6-3.2 | |||
Overall dimensions (L×W×H) | 1845x1712x2225 | 2210x1600x2340 | 2610×1600×2350 | 3260×2063x3140mm | |||
Packing dimensions (L×W×H) | 1460x1890x2190 | 1850x1840x2230mm | |||||
N.W./G.W. | 2800/3000 | 3300/3800 | 3600/4000kg | 7500/8000kg | |||
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
