T8014A T8016A Cylinder Boring Machine for Machinery Repair Shops at Affordable
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $2,000.00/sets >=1 sets |
| Packaging Details: | wooden case |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Weight (KG): | 62 | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction Works , Energy & Mining |
| Showroom Location: | Indonesia, Spain, Kenya, Argentina, Colombia, Algeria, Romania, Bangladesh, Kyrgyzstan | Product Name: | Cylinder Boring Machine |
| Brand: | TIMAC | Style: | Fashion |
| Name: | T8014a Cylinder Boring Machine | Type: | Fine Boring Machine |
| Machine Type: | Vertical Fine Boring Machine | Key Word: | Cylinder Boring Machine |
| Color: | Customer Choose | Key Selling Point: | Competitive Price |
| After-sales Service Provided: | Online Support | Port: | China Port |
Product Description
Product Description
CYLINDER BORING MACHINE

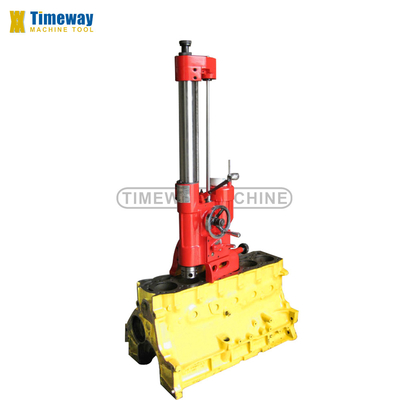

The machine is mainly used for reboring engine cylinders of automobiles motor cycles and tractors.
Features:
1. Reliable performance, widely use, processing accuracy, and high productivity.
3. Easy and flexible operation.
3. Good rigidity and amount of cutting.
3. Easy and flexible operation.
3. Good rigidity and amount of cutting.
Specification
Model | T8014A | T8016A | ||
Boring diameter | Φ65-Φ140 mm | Φ80-Φ165 mm | ||
Max. boring depth | 300 mm | 400 mm | ||
Spindle speed | 250;380 r/min | 200;300 r/min | ||
Spindle feed | 0.11 mm / r | 0.12 mm / r | ||
Spindle rapid reset | 636 mm / min | 780 mm / min | ||
Motor | Voltage | 220/380 V | 220/380 V | |
Power | 0.25/0.37 Kw | 0.25/0.37 Kw | ||
Speed | 1440 r/min | 1440 r/min | ||
Overall dimensions | 320×330×850 mm | 360×345×1100 mm | ||
Packing dimensions | 540×470×1030 mm | 500×490×1270 mm | ||
Weight | 62 Kg | 85 Kg | ||

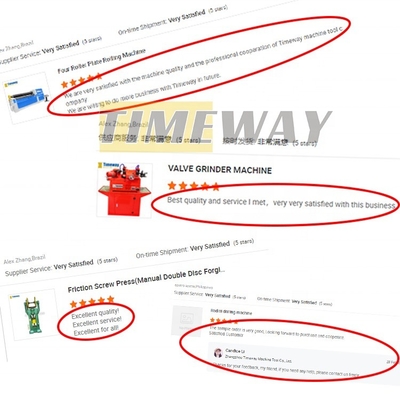

Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
