TB8016 Vertical Air-Float Fine Boring Machine for Fashion Style and 220V/380V Voltage
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | ISO CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $7,880.00/sets 3-5 sets |
| Packaging Details: | Plywood case |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 1000 Mm | Table Travel (Y) (mm): | 45 Mm |
|---|---|---|---|
| Table Travel (Z) (mm): | 0 Mm | Number Of Axes: | 2 |
| Travel (W-axis) (mm): | 320 Mm | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Range Of Spindle Speed(r.p.m): | 370 R.p.m | Spindle Motor Power(kW): | 1.1 |
| Type: | VERTICAL | Condition: | New |
| CNC Or Not: | Normal | Production Capacity: | High |
| Voltage: | 220V/380V | Dimension(L*W*H): | 1250x1050x1970mm |
| Weight (T): | 1.3 T | Warranty: | 1 Year |
| Key Selling Points: | Energy Saving | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction Works , Energy & Mining |
| Showroom Location: | Kenya, Colombia, Algeria, Romania, Bangladesh, South Africa, Kazakhstan, Kyrgyzstan, Nigeria, Uzbekistan | Product Name: | Vertical Fine Boring Machine |
| Boring Dia.: | 39-160 Mm | Style: | Fashion |
| Boring Diameter: | 39-160 Mm | Max. Boring Depth: | 320 Mm |
| Spindle Feed: | 0.09 Mm/r | Machine Weight: | 1300 Kg |
| After-sales Service Provided: | Online Support, Video Technical Support | After Warranty Service: | Video Technical Support, Online Support |
| Local Service Location: | United States, Philippines, Pakistan, India, Japan, South Korea, Romania, Kyrgyzstan, Nigeria | Port: | China Port |
Product Description

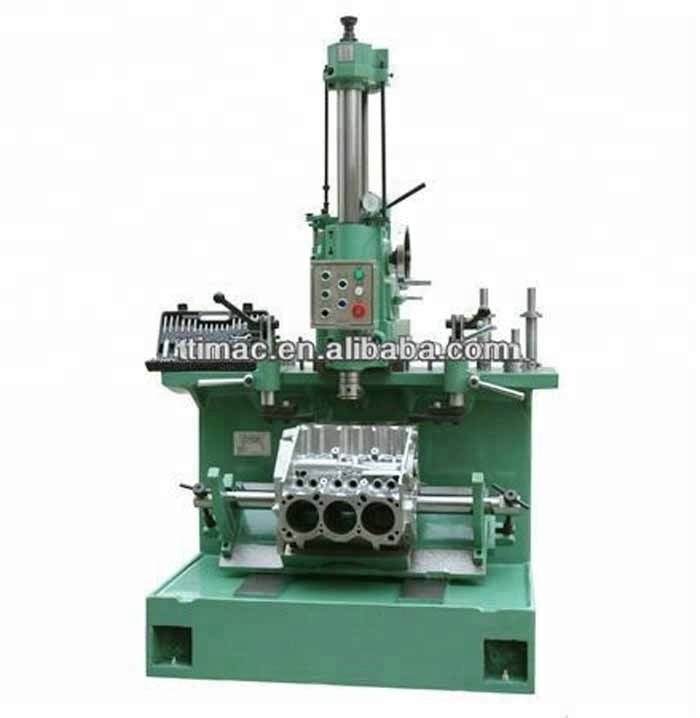

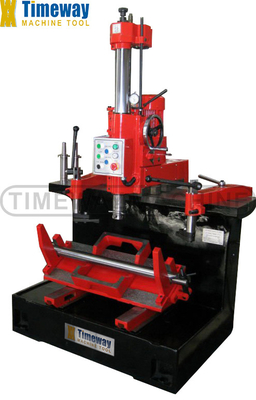

VERTICAL AIR-FLOATING FINE BORING MACHINE
Features:
The machine is mainly used for reboring single line cylinders and V-engine cylinders of automobiles motor cycles and tractors and also for other machine element holes.
* Reliable performance, widely use, processing accuracy, high productivity.
* Easy and flexible operation.
* Air-floating location quick and precise, automatic pressure.
* Spindle speed is suitability.
* The tool setting and measuring device.
* There is a vertical measuring device.
* Good rigidity, amount of cutting.
Specification
| Specification | Unit | TB8016 |
| Boring diameter | mm | 39-160 |
| Max. boring depth | mm | 320 |
| Boring head travel (longitudinal/transversal) | mm | 1000/45 |
| Spindle speed (4 steps) | r/min | 125, 185, 250, 370 |
| Spindle feed | mm/r | 0.09 |
| Spindle quick reset | mm/min | 430, 640 |
| Pneumatic pressure | Mpa | 0.6<p<1 |
| Motor output | kw | 0.85/1.1 |
| Overall dimensions (LXWXH) | mm | 1250x1050x1970 |
| Machine weight | kg | 1300 |

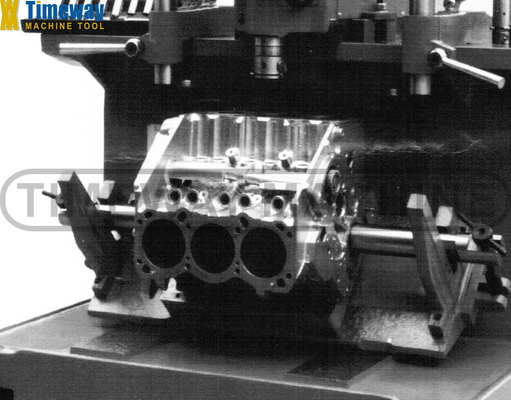

| V-block fixture patented system (special accessories) | (°) | 30/45 |
| V-block fixture patented system weight | kg | 130 |
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
