Effortless Cylinder Boring Machine with 0 mm Table Travel Z and Other Table Size
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $2,000.00/sets 1-2 sets |
| Packaging Details: | Plywood case |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Table Size (mm): | Other | Table Travel (X) (mm): | 0 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 160 Mm | Table Travel (Z) (mm): | 0 Mm |
| Number Of Axes: | 2 | Travel (W-axis) (mm): | 0 Mm |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Range Of Spindle Speed(r.p.m): | 1440 R.p.m |
| Spindle Motor Power(kW): | 0.25 | Type: | VERTICAL, VERTICAL |
| Condition: | New | CNC Or Not: | Normal |
| Voltage: | 220/380V | Weight (T): | 0.09 T |
| Warranty: | 1 Year | Key Selling Points: | High Productivity |
| Applicable Industries: | Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction Works , Energy & Mining | Showroom Location: | Canada, France, Germany, Philippines, Morocco |
| Boring Diameter: | 60 70 80mm | Product Name: | Cylinder Blocks Boring Machine |
| Brand: | TIMAC TIMEWAY | Keyword: | Cylinder Blocks Boring Machine |
| Table Size: | Other | X-axis Travel: | 0 |
| Y-axis Travel: | 160 | Z-axis Travel: | 0 |
| Overall Dimensions: | 330x400x1080 | Port: | China Port |
Product Description
Product Description

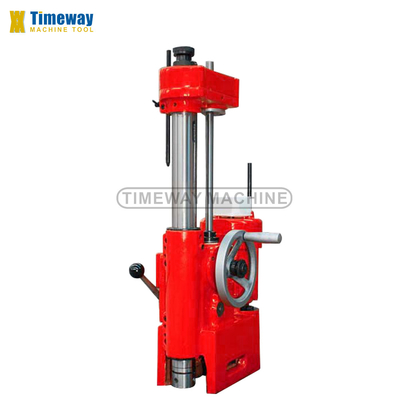

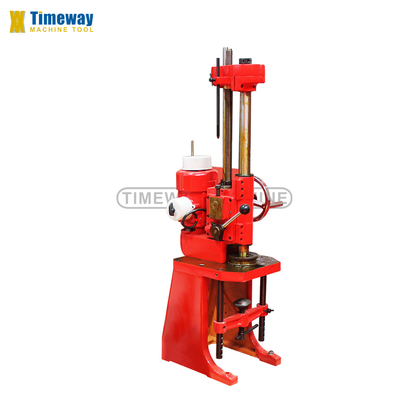

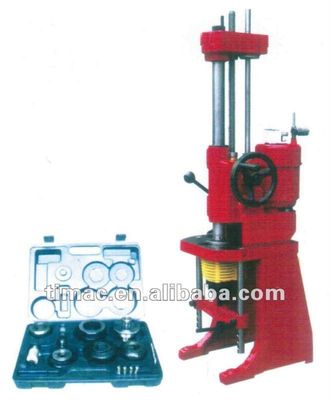

CYLINDER BORING MACHINE
Features:
The boring machine is mainly used for reboring engine cylinders of automobiles motor cycles and middle & small tractors.
* Reliable performance, widely use, processing accuracy high productivity.
* Easy and flexible operation.
* Good rigidity, amount of cutting.
* Reliable performance, widely use, processing accuracy high productivity.
* Easy and flexible operation.
* Good rigidity, amount of cutting.
Specification
Specification | Unit | T806 | T806A | T807 | T807K |
Boring diameter | mm | Φ39-Φ60 | Φ45-Φ80 | Φ39-Φ70 | Φ39-Φ80 |
Max. boring depth | mm | 160 | 170 | 160 | 170 |
Spindle speed | r/min | 486 | 486 | 486 | 486 |
Spindle feed | mm/r | 0.09 | 0.09 | 0.09 | 0.09 |
Spindle quick reset | Manual | Manual | Manual | Manual | |
Voltage | v | 220/380 | 220/380 | 220/380 | 220/380 |
Motor power | kw | 0.25 | 0.25 | 0.25 | 0.25 |
Motor speed | r/min | 1440 | 1440 | 1440 | 1440 |
Overall dimensions | mm | 330x400x1080 | 330x400x1080 | 330x400x1080 | 330x400x1080 |
Machine weight | kg | 80 | 85 | 81 | 85 |
Positive Comments From Customers
Company Profile
Certifications：
Customer visited：
Exhibition Show：
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
