After Service T8108 accuracy Line Boring Machine for Cylinder Heads and Blocks
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $1,000.00 - $29,850.00/sets |
| Packaging Details: | wooden case |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction Works , Energy & Mining | Showroom Location: | Pakistan, Morocco, UAE, Colombia, Algeria, Sri Lanka |
| After-sales Service Provided: | Online Support, Video Technical Support | After Warranty Service: | Video Technical Support, Online Support |
| Local Service Location: | Philippines, Pakistan, India, Mexico, Malaysia, Sri Lanka | Port: | China Port |
Product Description

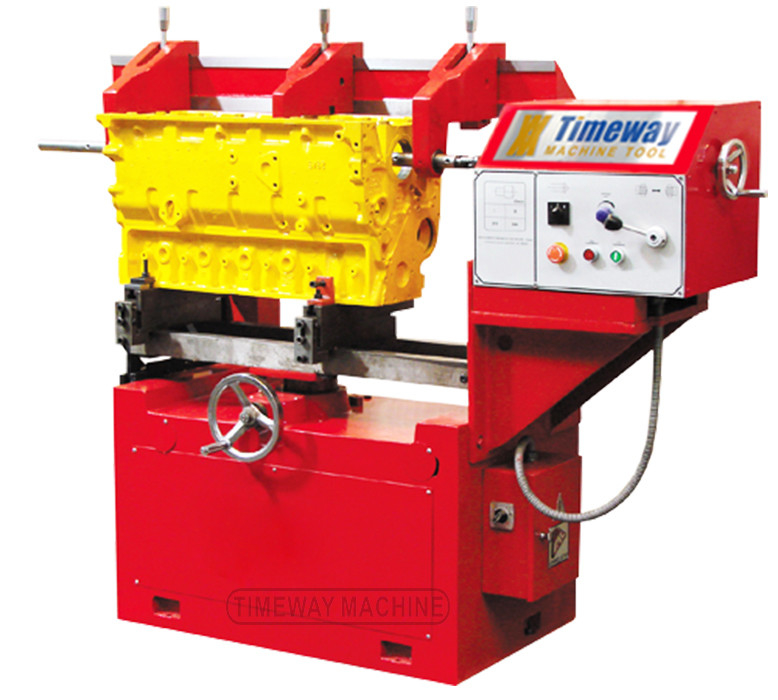

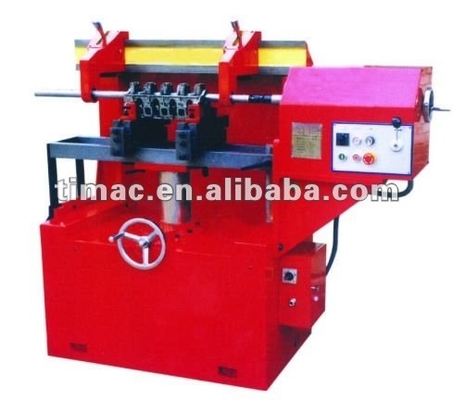

Line Boring machine for Cylinder heads & blocks
Features:
- Line boring machine T8108 is a small size machine which, however, has a wide range of application.
- Though it has been specially designed for reconditioning the seat of cylinder head camshafts with through of blind axis.
- It can also be used for reconditioning the seat of cylinder block crankshafts in cars and light-weight trucks.
- The machine is sturdy, compact and allows accurate machining.
| Specification | T8108 |
| Boring range | Φ24-Φ85 mm |
| Max.travel of shaft | 100 mm |
| Max.boring length | Φ20 x 900 mm |
| Φ32 x 980 mm | |
| Main shaft rotating speed | 245, 380 rpm |
| Boring shaft feed | Stepless |
| Distance between cylinder fixture and boring shaft center | 45-295mm |
| Motor power | 0.55/0.75 Kw |
| Overall dimensions ( L×W×H) | 1620×700×1370 mm |
| Packing dimensions (L×W×H) | 1740×920×1700 mm |
| N.W./G.W. | 600/750 kg |
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
