Cylinder Body Bushing Boring Machine T8115 T8120 for Volume Production Weight KG 2200
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $49,999.00/sets >=1 sets |
| Packaging Details: | wooden case |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Weight (KG): | 2200 | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction Works , Energy & Mining |
| Showroom Location: | Egypt, Philippines, India, Kenya, Algeria, Ukraine | Product Name: | Cylinder Body Bushing Boring |
| Style: | Fashion | Brand: | TIMAC TIMEWAY |
| Name: | Cylinder Boring Machine | Type: | Boring Machines |
| Machine Type: | Portable Cylinder Boring Machine | Key Word: | Boring Machines Portable |
| Color: | Customer Choose | Key Selling Point: | Competitive Price |
| Key Words: | Cylinder Boring Tool | Port: | China Port |
Product Description
Product Description

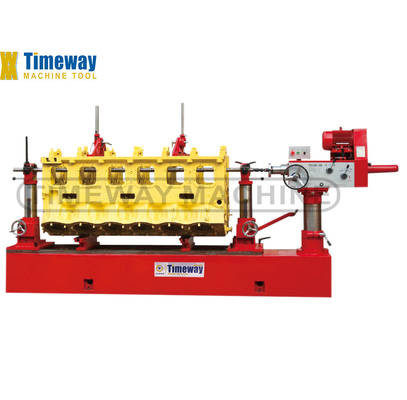

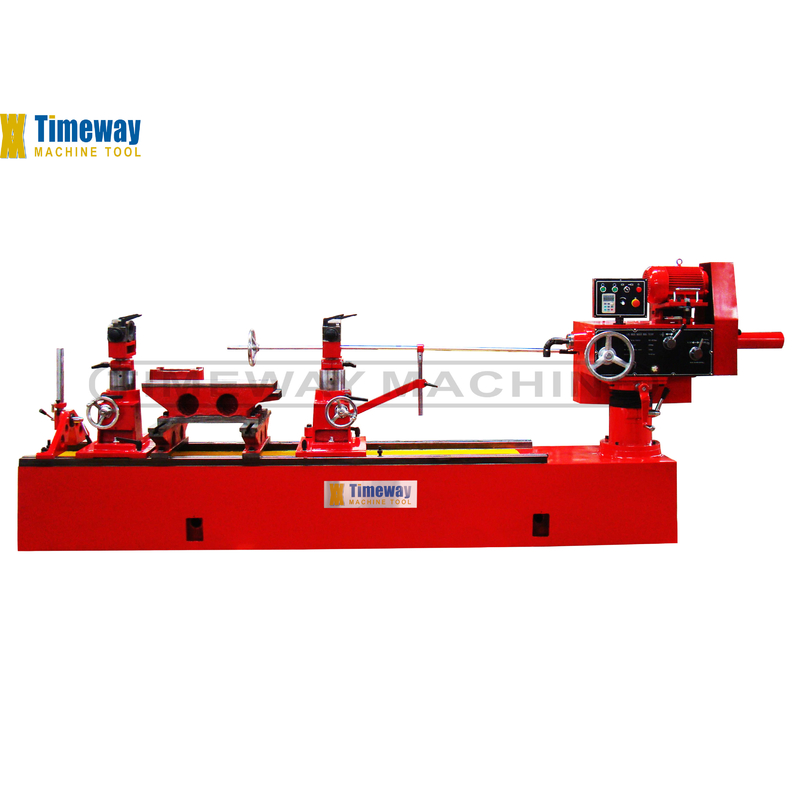

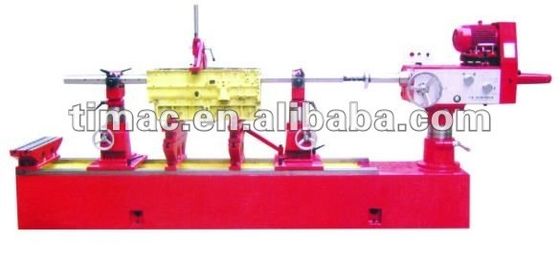

Cylinder Body Bushing Boring Machine
Feature：
1. This machine is used for boring master bushing and bushing of engine & generator's cylinder bodier in automobiles, tractors and ships etc.
2. With long travel of tool feeding, which can improve the work efficiency and coaxial of bored bushing.
3. The boring bar is special heat treatment, which can improve the rigidity and hardness of the boring bar and working precision availably.
4. The auto-feeding system adopts stepless adjusting, suits for processing all kinds of materials and hole diameter of the
bushing.
5. With special measuring device, it is easily to measure the work piece.
2. With long travel of tool feeding, which can improve the work efficiency and coaxial of bored bushing.
3. The boring bar is special heat treatment, which can improve the rigidity and hardness of the boring bar and working precision availably.
4. The auto-feeding system adopts stepless adjusting, suits for processing all kinds of materials and hole diameter of the
bushing.
5. With special measuring device, it is easily to measure the work piece.
Specification
Specification | T8115 | T8120 |
Range of hole diameter to be bored | φ36-Φ150mm | φ36-φ200mm |
Max. length of cylinder body to be bored | 1600mm | 2000mm |
Main shaft max. elongation | 300mm | 300mm |
Main shaft rotating speed(6 steps) | 210-945rpm | 210-945rpm |
Boring shat feed | 0.044, 0.167mm/r | 0.044, 0.167mm/r |
Motor power | 0.75/1.1kw | 0.75/1.1kw |
Overall diemension(LxWxH) | 3500x800x1500mm | 3900x800x1500mm |
Packing diemension(LxWxH) | 3650x1000x1600mm | 4040x1020x1600mm |
N.W/G.W | 1900/2200kg | 2200/2500kg |
