Brake Drum Turning Machine Professional Brake Lathe C9370C / Brake Disk Lathe Machine
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $3,100.00/sets 1-4 sets |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2024 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Weight (KG): | 325 | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction Works , Energy & Mining |
| Showroom Location: | United States, France, Brazil, Indonesia, Russia, South Africa | After-sales Service: | Engineers Available To Service Machinery Overseas |
| Product Name: | Brake Drum Lathe | Rotor Thickness: | 73 Mm |
| Brake Drum Depth: | 251mm | Color: | Customer Choose |
| Key Selling Point: | Competitive Price | Machine Type: | Brake Lathe Machine |
| Name: | Brake Drum Lathe | Model: | C9370C |
| Type: | Brake Drum Turning Machine | ||
Product Description
Product Description

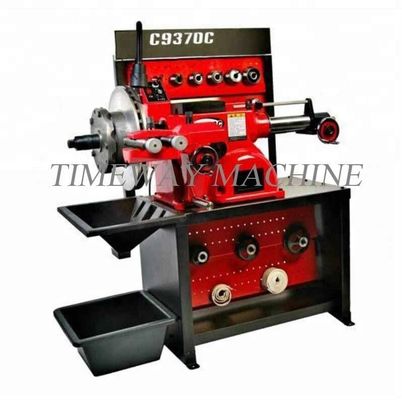

Brake Drum Lathe C9370C
1. The lathe uses precision electric DC servo motors design to meet the demanding requirement of industrial motion control.
2. The variety of adapters lets the standard or composite rotors for foreign & domestic cars and light trucks.
Feature
1.The “Change Adapter” system eliminates the need for conventional bell clamps and cones and features built-in springs ensure you don’t lose them. 2. The precision twin cutter tools and a quick drum to rotor changeover to help increase your service capability. 3. Infinitely variable spindle and cross feed speed settings allow quick rough and precision finish cutting. 4. A convenient top storage tray means you can easy to take your favorite adapters and tools. 5. Separate motors on the drum and rotor feed can maximize the main motor’s efficiency. 6. Positive rake cutter tip angle provides for a one pass finish virtually every time, wich has the high efficiency.
Specification

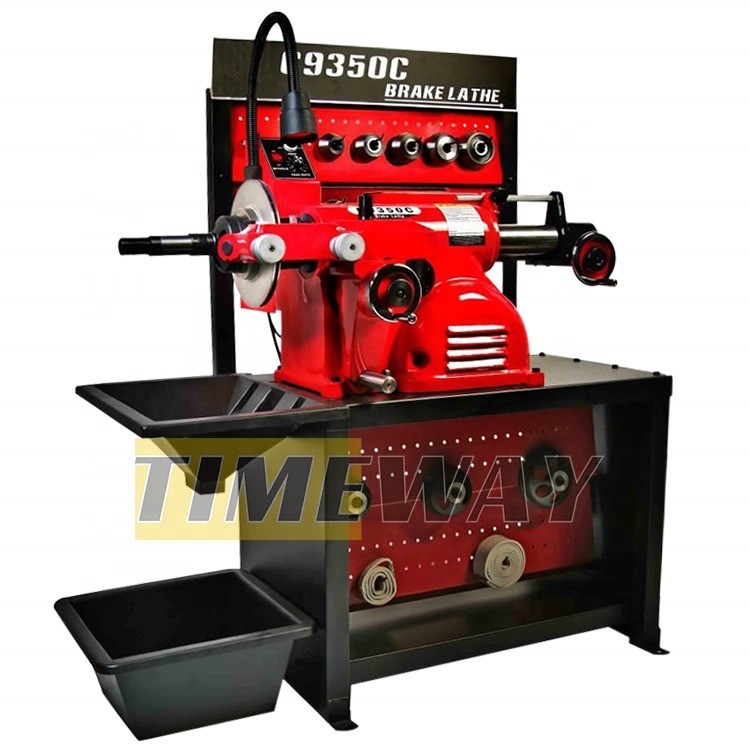

Specification | C9350 | C9350C | C9370 | C9370C | ||
Spindle Travel | 6-7/8” (175mm) | 9.875" (251mm) | ||||
Spindle speed | 70,88,118 rpm | 70,88,118 rpm | ||||
Spindle feed speed | 0.002"-0.02" (0.05-0.5mm)Rev | - | 0.002"-0.02" (0.05-0.5mm)Rev | - | ||
Cross feed speed | 0.002"-0.02" (0.05-0.5mm)Rev | - | 0.002"-0.01" (0.05-0.25mm)Rev | - | ||
Handwheel graduations | 0.002"(0.05mm) | - | 0.002"(0.05mm) | - | ||
Rotor diameter | 7" -15" (180mm-381mm) | 7" -18" (180mm-457mm) | ||||
Rotor thickness | 1-7/8” (48mm) | 4" (102mm) | ||||
Drum diameter | 6" -28" (152mm-711mm) | 6" -28" (152mm-711mm) | ||||
Drum depth | 6-7/8" (175mm) | 9.875" (251mm) | ||||
Motor | 110V/220V/380V,50/60HZ | 110V/220V/380V,50/60HZ | ||||
Gross weight | 290 kg | 400 kg | ||||
Dimension (L×W×H) | 970×920×1140mm | 1100mm ×1070mm×1140mm | ||||
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
